Wiring Device-Kellems HBL2811SW

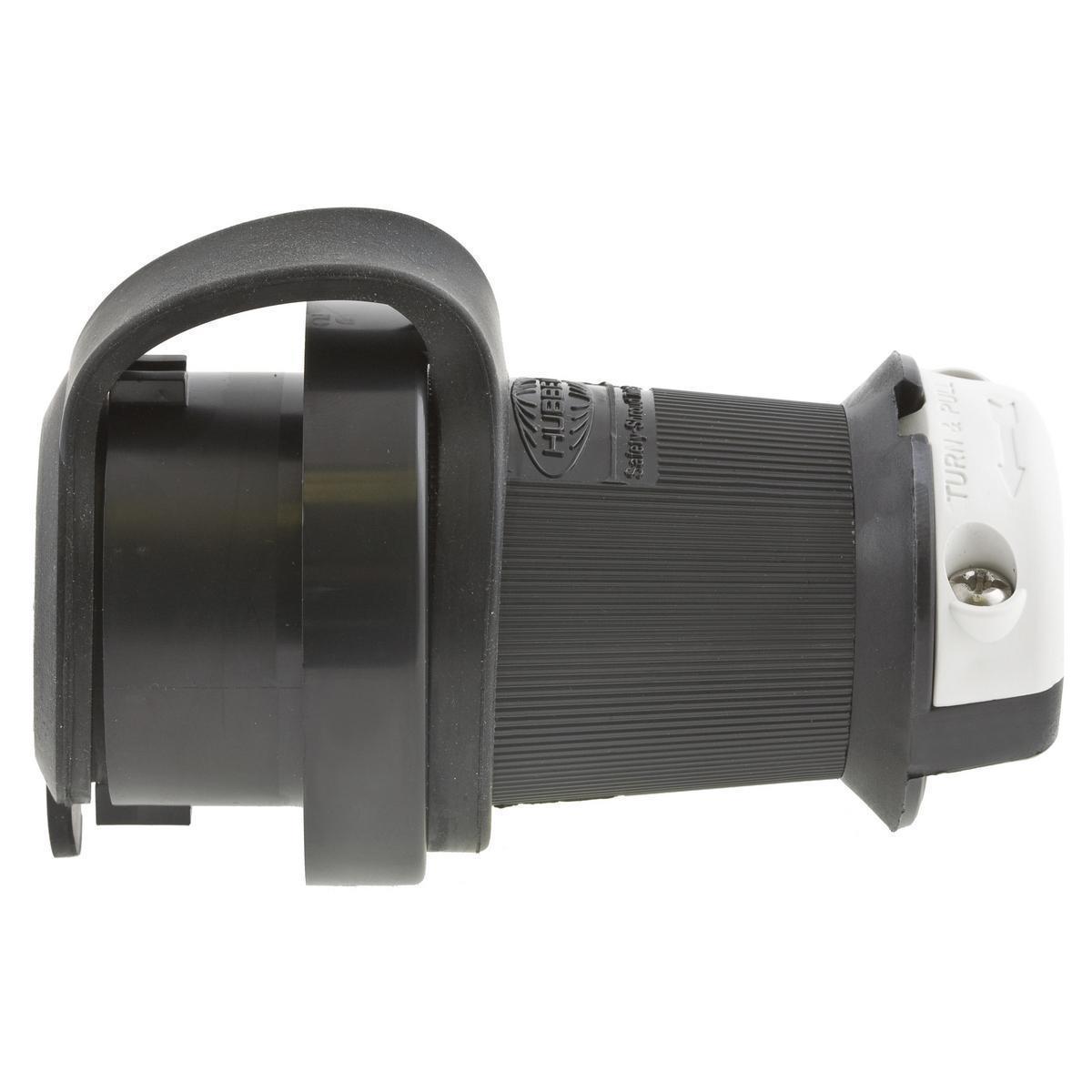

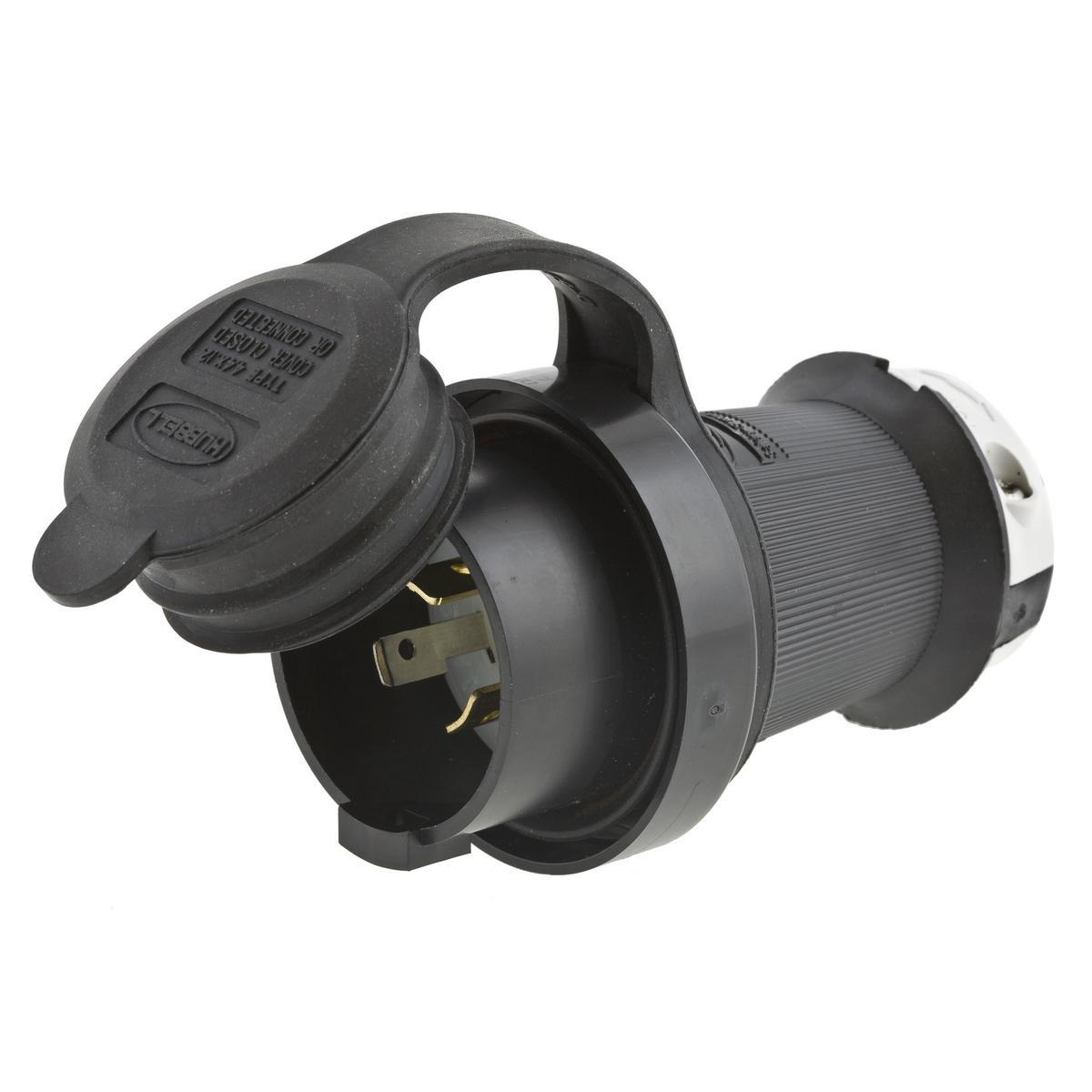

Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2811SW 3-Phase Grounding Male Standard Watertight Cord Mount Locking Plug, 120/208 VAC, 30 A, 4 Poles, 5 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL2811SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585232089
- FEPN: HBL2811SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Plug, 3-Phase Grounding Male Standard Watertight Cord Mount, 120/208 VAC, 30 A, 3 hp, 4 Pole, 5 Wires, L21-30P NEMA Rating, IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.94 x 2.94 x 4.40 in
| Cord Diameter | : | 0.35 to 1.15 in |
| Dimensions | : | 2.94 x 2.94 x 4.40 in |
| Enclosure | : | IP66 |
| Horsepower | : | 3 hp |
| Material | : | Composite |
| NEMA Rating | : | L21-30P |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 3-Phase Grounding Male Standard Watertight Cord Mount |
| Voltage Rating | : | 120/208 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 4 |
| Number of Wires | : | 5 |
| Color | : | Black/White |
- Superior cord grip design protects terminations from excess strain
- UL type 4X environmental seal protects connection while in use
- Impact-resistant shroud protects blades against bending and breaking
- Reduces exposure to arcing when connecting or disconnecting under load
