Wiring Device-Kellems ATD2000CRP

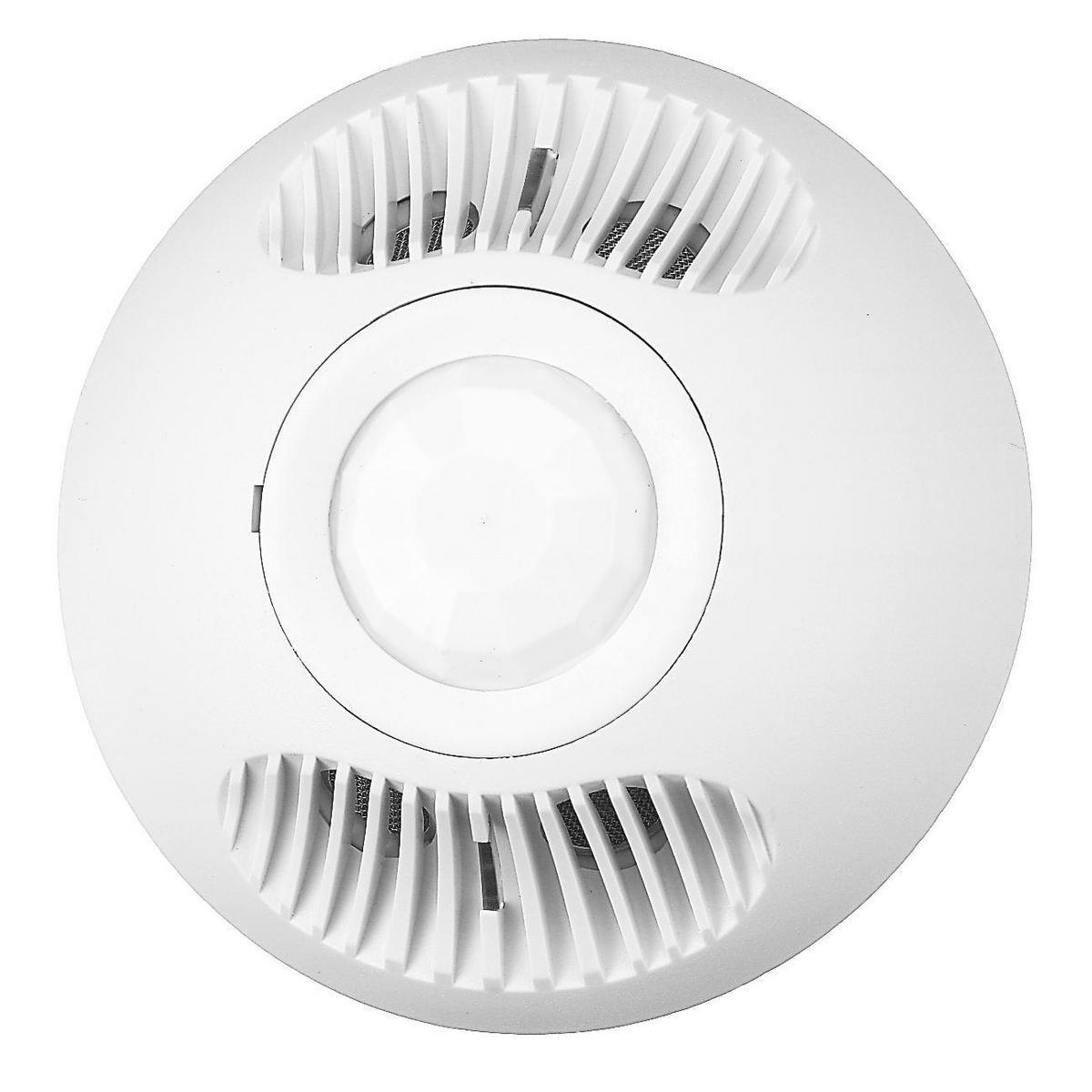

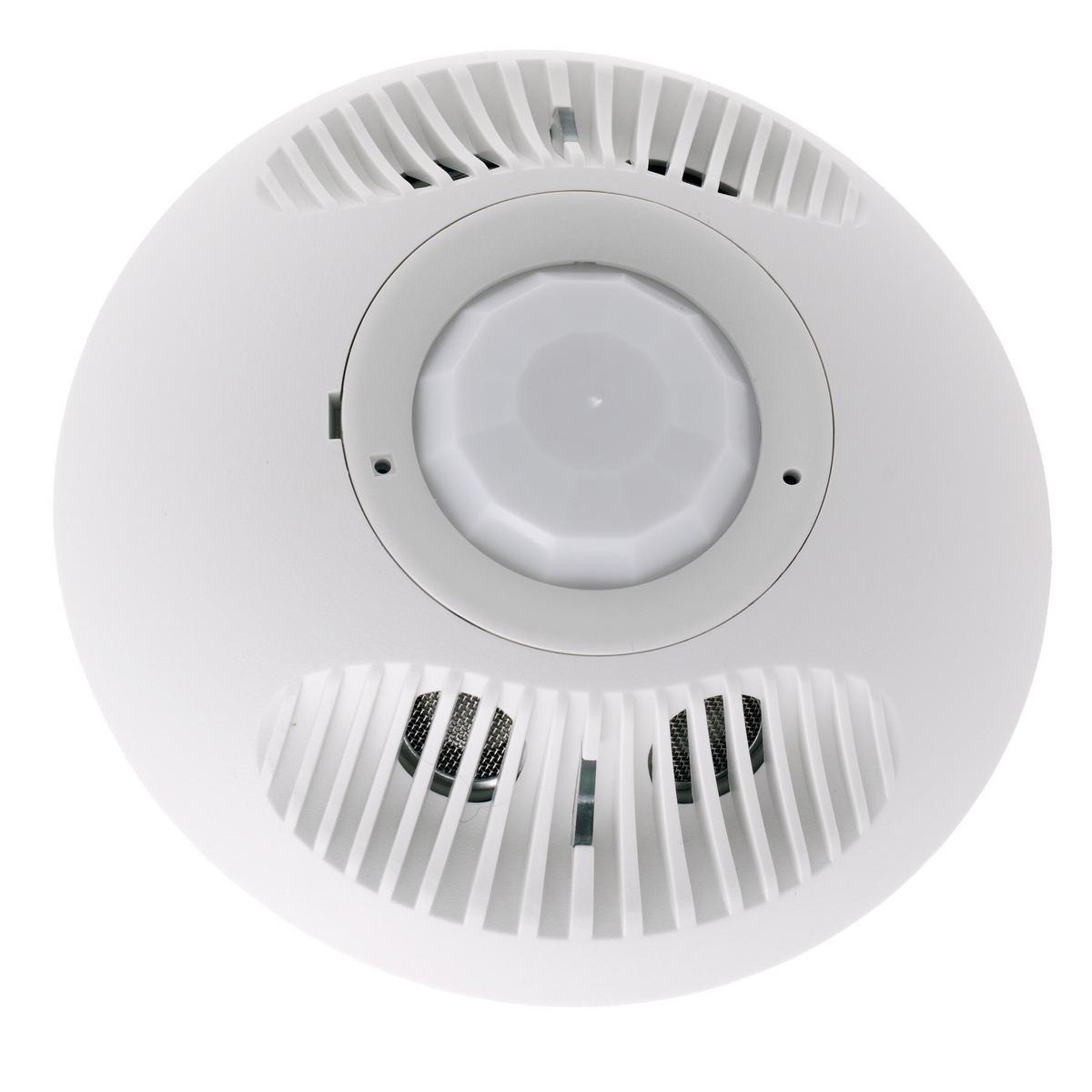

Wiring Device-Kellems H-MOSS® ATD2000CRP Adaptive Dual Technology Occupancy Sensor With Photocell and Relay, 24 VDC, Passive Infrared/Ultrasonic Sensor, 2000 sq-ft Coverage, 360 deg Viewing, Ceiling Mount
- Manufacturer Name: Hubbell
- MPN: ATD2000CRP
- Brand Name: Wiring Device-Kellems
- UPC: 783585392400
- FEPN: ATD2000CRP HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Strive for reduced energy costs with Hubbell Occupancy Sensors and Lighting Controls. In the U.S., lighting consumes 22% of electricity and represents $40 billion a year in energy costs. Using advanced technology, Hubbell H-MOSS® Occupancy Sensors are doing their part to save energy and provide sustainability by automatically and effectively turning lights on when a room is occupied and off when a room is vacant. In a typical office building, lighting accounts for 35 to 45% of energy use, H-MOSS Occupancy Sensors have the potential to reduce wasted lighting by 13 to 90% for a significant return on investment (ROI).
Wiring Device-Kellems H-MOSS® Occupancy Sensor, Adaptive Dual Technology, Series: ATD, 24 VDC, 33 mA, Passive Infrared/Ultrasonic Sensor, 2000 sq-ft Coverage, 360 deg Viewing, 8 to 40 min Adaptive, 8 s Test Time Delay, Lead Wire Connection, Ceiling Mounting, 32 to 104 deg F, ABS, White, 4-1/2 in D x 1-1/2 in H Dimensions
| Amperage Rating | : | 33 mA |
| Color | : | White |
| Connection Type | : | Lead Wire |
| Dimensions | : | 4-1/2 in D x 1-1/2 in H |
| Material | : | ABS |
| Series | : | ATD |
| Temperature Rating | : | 32 to 104 deg F |
| Time Delay | : | 8 to 40 min Adaptive, 8 s Test |
| Type | : | Adaptive Dual Technology |
| Voltage Rating | : | 24 VDC |
| Sensor Type | : | Passive Infrared/Ultrasonic |
| Coverage | : | 2000 sq-ft |
| Viewing Angle | : | 360 deg |
| Mounting Type | : | Ceiling |
- Minimize the risk of false triggering lights turning ON when the space is un-occupied, offer the best performance for most applications
- Office white ABS enclosure blends with ceiling tile
- Relay to interface with auxiliary systems such as HVAC
- Red LED indicates passive infrared detection and green LED indicates ultrasonic detection
- "Install and forget" operation, auto-adjusting adaptive technology eliminates manual adjustments
Line Drawing
