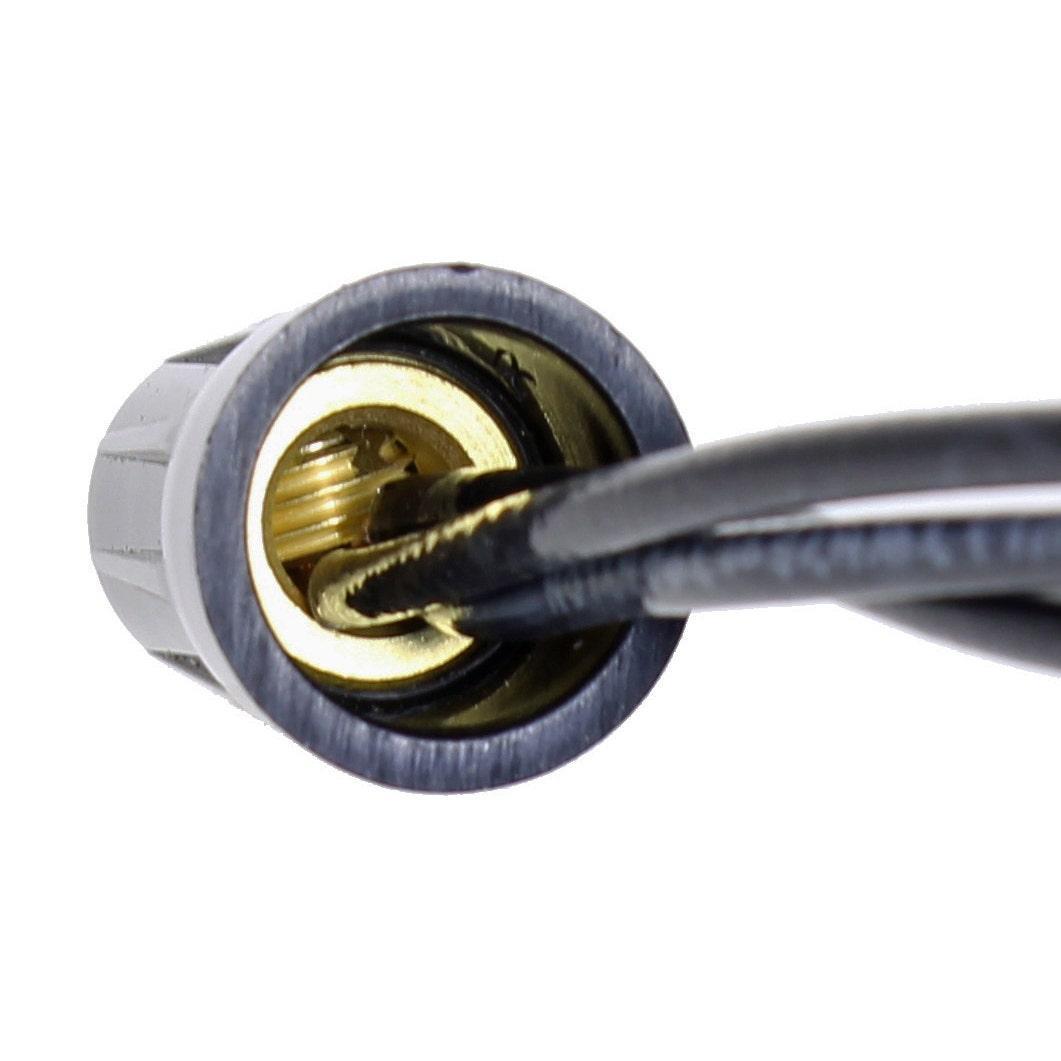

Set screw wire connectors from IDEAL® ensure a vibration-resistant splice, perfect for applications near motors or other vibration. The solid brass sleeve inserts come in three sizes, allowing wire ranges 22 to 10 AWG. Each package contains plastic caps, allowing for insulation of the splice after installation, as well as a set screw holder to allow for ease of installation.
IDEAL® Set Screw Connector, Series: 10 Series, Copper Wire, 22 to 10 AWG Wire, Slotted Screw, 300 VAC, Specifications: 1 to 6 Conductors, (1) 20 AWG with (1) 22 AWG Minimum, (2) 14 AWG with (1) 16 AWG Maximum Wire Combination Range, 302 deg F, Brass/Polypropylene, Black, 1/2 in W x 45/64 in H Dimensions
| Color | : | Black |
| Dimensions | : | 1/2 in W x 45/64 in H |
| Series | : | 10 Series |
| Specifications | : | 1 to 6 Conductors, (1) 20 AWG with (1) 22 AWG Minimum, (2) 14 AWG with (1) 16 AWG Maximum Wire Combination Range |
| Temperature Rating | : | 302 deg F |
| Voltage Rating | : | 300 VAC |
| Wire Size | : | 22 to 10 AWG |
| Wire Type | : | Copper |
| Screw Type | : | Slotted |
| Material | : | Brass/Polypropylene |
- Eliminates need for restriping wire each time the connection is disturbed
- Set screw easily and securely applies maximum compression to conductors to ensure a vibration-resistant splice
- Permits fast visual inspection of splice
- Tough, flame-retardant shell rated at 302 deg F
- The solid brass sleeve inserts come in three sizes, allowing wire ranges 22 AWG - 10 AWG
RoHS
