Wiring Device-Kellems HBL2821SW

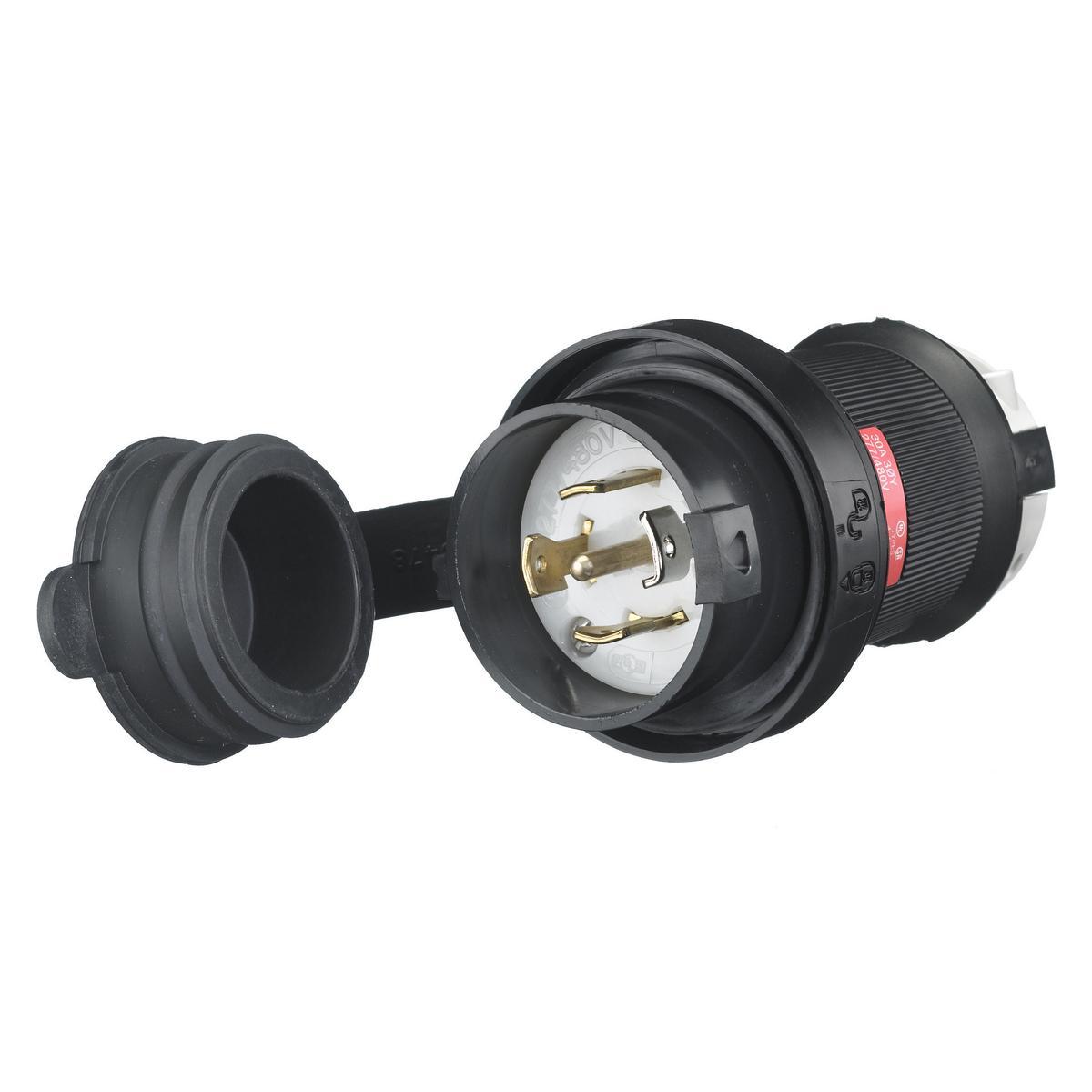

Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2821SW 3-Phase Watertight Grounding Standard Sized Cord Mount Locking Male Plug, 277/480 VAC, 30 A, 4 Poles, 5 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL2821SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585454979
- FEPN: HBL2821SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Male Plug, 3-Phase Watertight Grounding Standard Sized Cord Mount, 277/480 VAC, 30 A, 4 Pole, 5 Wires, L22-30P NEMA Rating, Industrial Grade, NEMA 4/4X/12/6/6P/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 4.5 x 2.94 x 2.94 in
| Cord Diameter | : | 0.35 to 1.15 in |
| Dimensions | : | 4.5 x 2.94 x 2.94 in |
| Enclosure | : | NEMA 4/4X/12/6/6P/IP66 |
| Grade | : | Industrial |
| Material | : | Composite |
| NEMA Rating | : | L22-30P |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 3-Phase Watertight Grounding Standard Sized Cord Mount |
| Voltage Rating | : | 277/480 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 4 |
| Number of Wires | : | 5 |
| Color | : | Black/White |
- Withstand 2500 VAC minimum dielectric voltage
- 16 to 8 AWG stranded copper wire terminal accommodation
- Terminals identified in accordance with UL 498
- PBT cord clamp
- Clear polycarbonate terminal retainer
- Brass blade
- #10-32 brass (Phillips/slotted/Robertson) terminal screws
- Nickel plated cold rolled steel terminal clamp
- Stainless steel assembly screws
- Neoprene watertight gland
- Santoprene closure plug
- UL type 4X environmental seal protects connection while in use
- Impact resistant shroud protects blades against bending and breaking
- Reduces exposure to arcing when connecting or disconnecting under load
- Superior cord grip design protects terminations from excess strain
- 10 to 8 AWG wire
