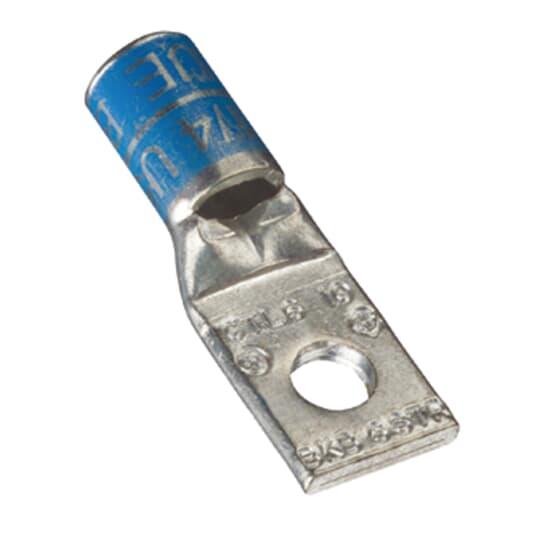

Blackburn® CTL6-38
Blackburn® CTL6-38 CTL 1-Hole Lug Compression Connector, 6 AWG Conductor Flexible/Stranded Copper Conductor, 3/8 in Stud
- Manufacturer Name: ABB
- MPN: CTL6-38
- Brand Name: Blackburn®
- UPC: 783786131105
- FEPN: CTL6-38 TB
- Min Order Qty: 1
- Quantity Interval: 50
-
Inventory Availability
-
Retail Price:
Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.
Blackburn®, CTL6-38, Lug Compression Connector, 1-Hole, Series: CTL, Flexible/Stranded Copper Conductor, 6 AWG Conductor, 35 kV, 3/8 in Stud, Straight Tongue, 21/32 in L x 19/32 in W x 1/16 in THK Tongue, 1-13/32 in Overall Length, Short/Standard Barrel, 7/16 in L Barrel, Specifications: Tin Plated, Blue
| Barrel Size | : | 7/16 in L |
| Barrel Type | : | Short/Standard |
| Color | : | Blue |
| Overall Length | : | 1-13/32 in |
| Series | : | CTL |
| Specifications | : | Tin Plated |
| Tongue Size | : | 21/32 in L x 19/32 in W x 1/16 in THK |
| Tongue Type | : | Straight |
| Type | : | 1-Hole |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 6 AWG |
| Conductor Type | : | Flexible/Stranded Copper |
| Stud Size | : | 3/8 in |
| Material | : | Copper |
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Short barrel connectors designed for regular duty applications
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
- For use with copper conductors: AWG stranded, flexible cable, welding cable and portable cord
