Wiring Device-Kellems HBL2410

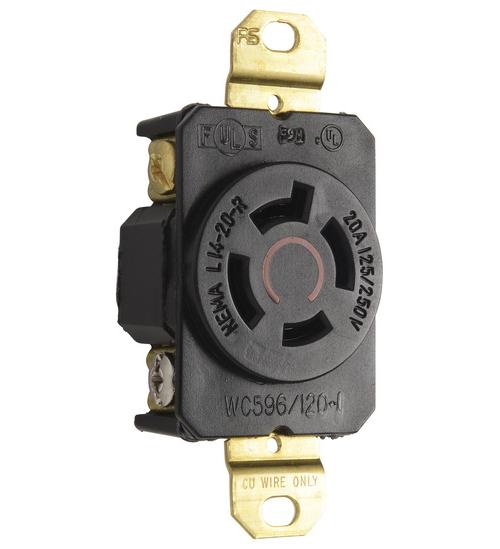

Wiring Device-Kellems HBL2410 HBL® 1-Phase Flush Mount Grounding Heavy Duty Single Screw Mount Locking Receptacle, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black
- Manufacturer Name: Hubbell
- MPN: HBL2410
- Brand Name: Wiring Device-Kellems
- UPC: 783585235738
- FEPN: HBL2410 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL2410, Locking Receptacle, 1-Phase Flush Mount Grounding Heavy Duty Single Screw Mount, Series: HBL®, 125/250 VAC, 20 A, 2 hp, 3 Pole, 4 Wires, L14-20R NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Black, 3.28 x 1.7 x 1.23 in Dimensions
| Dimensions | : | 3.28 x 1.7 x 1.23 in |
| Enclosure | : | NEMA 4/4X/12/IP20 |
| Grade | : | Industrial |
| Horsepower | : | 2 hp |
| Material | : | Nylon |
| NEMA Rating | : | L14-20R |
| Series | : | HBL® |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Flush Mount Grounding Heavy Duty Single Screw Mount |
| Voltage Rating | : | 125/250 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black |
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
