Designed to withstand abuse and constant use in demanding applications, these durable switches virtually eliminate contact bounce and arcing. Exterior housing is made entirely of high performing chemical and impact resistant thermoplastics to withstand the abuse of industrial environments and harsh chemicals. Featuring Auto ground and external, screw pressure plate back wiring on all terminals for fast, easy installation and excellent electrical connection. Oversize silver alloy contacts help ensure long life and better heat dissipation.

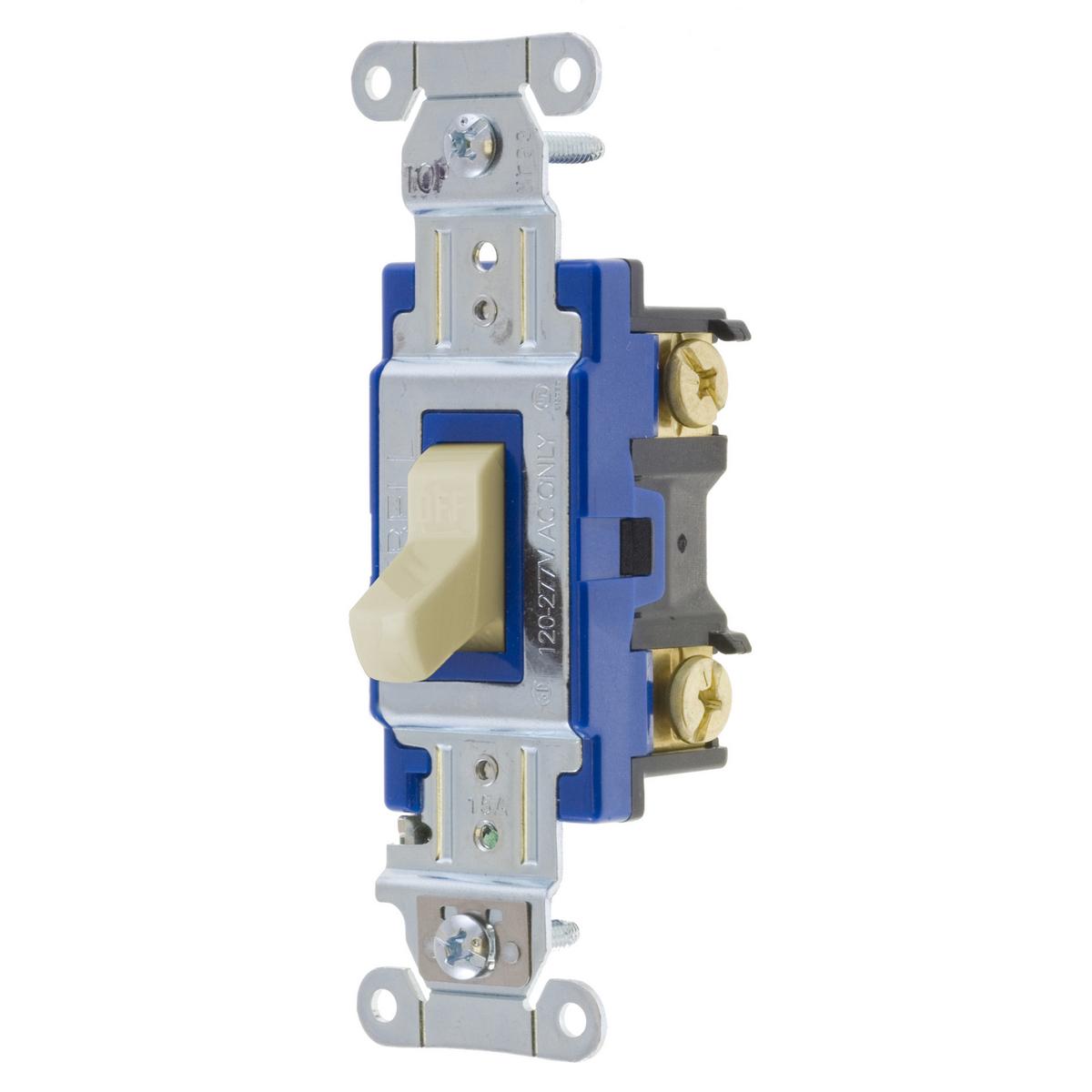

Pass & Seymour® Toggle Switch, Heavy Duty, 120/277 VAC, 15 A, 1/2, 2 hp Power, 1 Pole, Cam/Spring/Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Ivory, Environmental Conditions: -40 to 115 deg C Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions
| Actuator | : | Cam/Spring/Toggle |
| Color | : | Ivory |
| Dimensions | : | 3.3 in H x 1.32 in W x 1.073 in D |
| Environmental Conditions | : | -40 to 115 deg C Temperature |
| Material | : | Thermoplastic |
| Mounting | : | Wall |
| Number of Poles | : | 1 |
| Operating Cycles | : | 50000 Cycles |
| Terminal Type | : | Screw |
| Type | : | Heavy Duty |
| Voltage Rating | : | 120/277 VAC |
| Amperage Rating | : | 15 A |
| Power Rating | : | 1/2, 2 hp |
- Heavy duty bumpers for quiet, smooth operation
- Oversized silver alloy contacts for long life and better heat dissipation
- Heavy duty, brass alloy, 1-piece contact arm virtually eliminates contact bounce
- Shallow design for ease of installation
- Cam control and spring actuator for positive makes and breaks with a minimum of arcing
- Locking support provides resistance to face and back body separation
- Side and external screw pressure plate back wire with 14 to 10 AWG copper or copper clad wire
- Bare insulation
- One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic
- Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners
- One-piece nickel-plated brass strap for superior corrosion-resistance
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
