Bussmann series circuit protection products and services focus on downtime reduction, workplace safety and Code compliance for the industrial/MRO, OEM and construction markets. From electrical power fuses to fuse blocks and holders and engineering services, the Bussmann brand stands for protection you rely on.

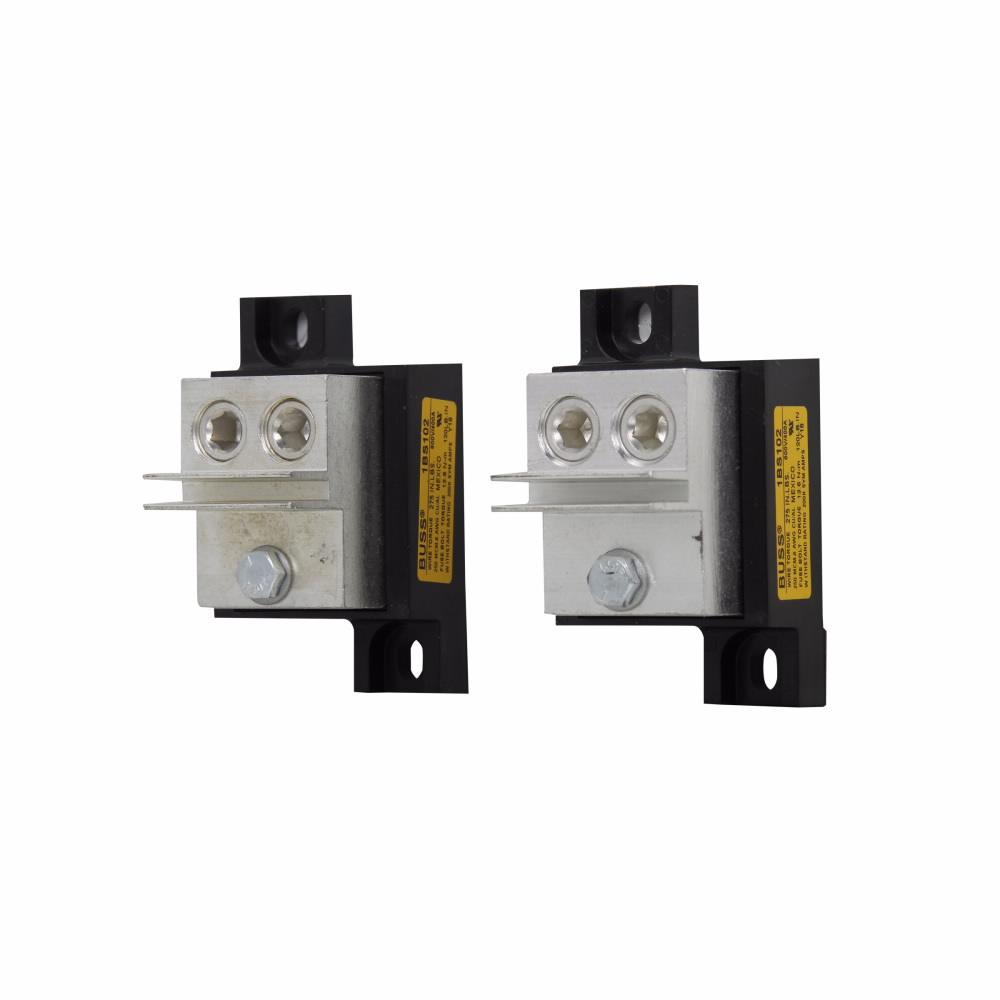

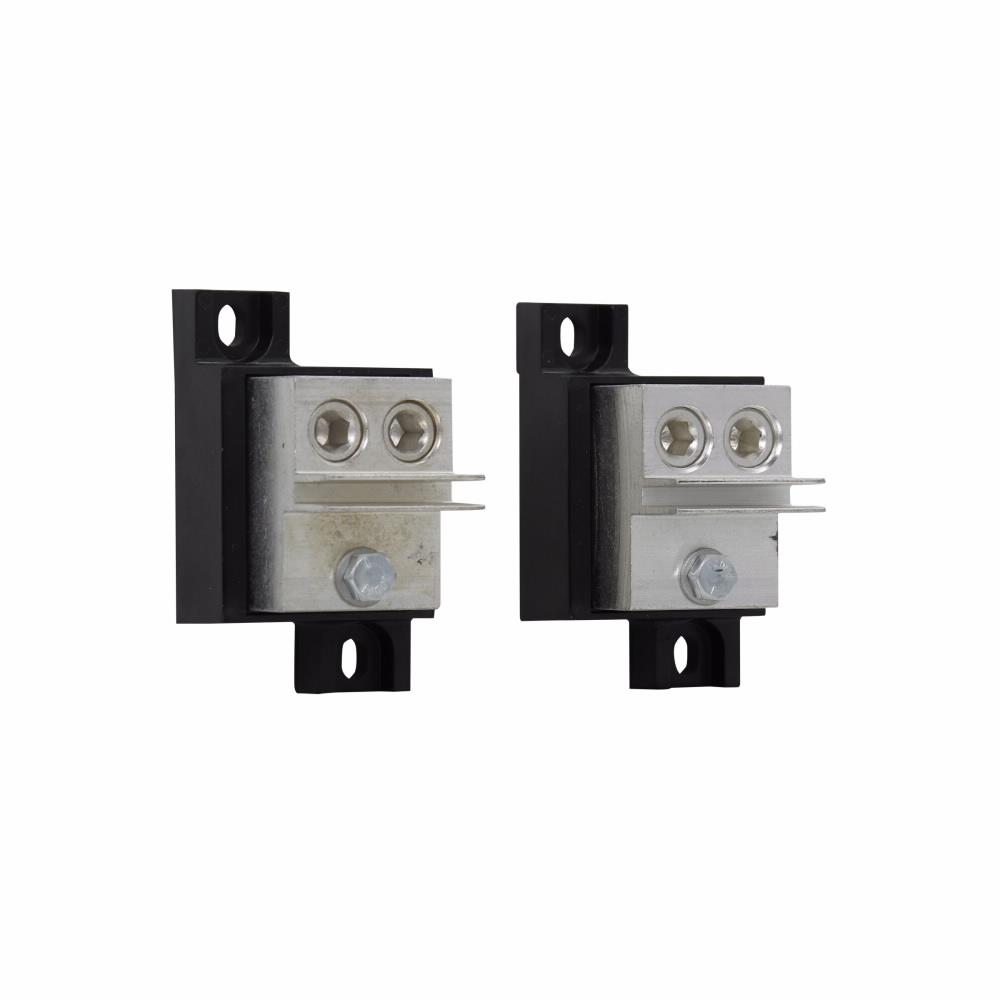

Bussmann Fuse Block, Modular Universal, Series: 1BS10x, 600 V, 400 A, 1 Pole, Screw, 6 AWG to 250 kcmil Wire, Stud Mount, 150 deg C, For Use With: 300/600 VAC Class T High Speed Fuse, Phenolic, Black, 2.25 in W x 2.53 in H
| Color | : | Black |
| Connection Type | : | Screw |
| Dimensions | : | 2.25 in W x 2.53 in H |
| Material | : | Phenolic |
| Mounting Type | : | Stud |
| Series | : | 1BS10x |
| Suitable For Use With | : | 300/600 VAC Class T High Speed Fuse |
| Temperature Rating | : | 150 deg C |
| Type | : | Modular Universal |
| Voltage Rating | : | 600 V |
| Amperage Rating | : | 400 A |
| Wire Size | : | 6 AWG to 250 kcmil |
| Number of Poles | : | 1 |
Specification Sheet
VIDEO LINK
