Panduit® LCB4/0-38-X

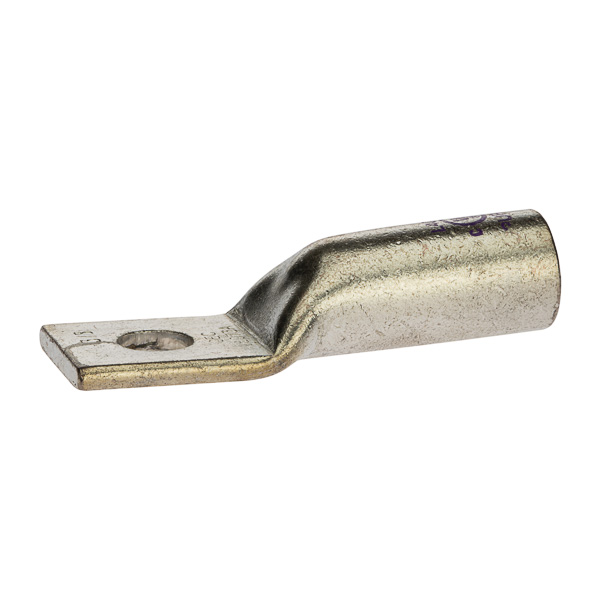

Panduit® Pan-Lug™ LCB4/0-38-X 1-Hole Compression Lug Connector, 4/0 AWG Copper/Stranded Conductor, Die Code: P54, 3/8 in Stud, Tin Plated Copper
- Manufacturer Name: Panduit
- MPN: LCB4/0-38-X
- Brand Name: Panduit®
- UPC: 074983901395
- FEPN: LCB4/0-38-X PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Lug™ Compression Lug Connector, 1-Hole, Series: LCB, Copper/Stranded Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 3/8 in Stud, Straight Tongue, 1.06 in W x 0.14 in THK Tongue, 3.03 in Overall Length, Long without Inspection Window Barrel, 0.57 in ID x 0.71 in OD x 1.56 in L Barrel, Specifications: 1-5/8 in L Wire Strip, Tin Plated, 90 deg C, 1-5/8 in Mounting Hole, Tin Plated Copper, Purple
| Barrel Size | : | 0.57 in ID x 0.71 in OD x 1.56 in L |
| Barrel Type | : | Long without Inspection Window |
| Color | : | Purple |
| Mounting Hole Size | : | 1-5/8 in |
| Overall Length | : | 3.03 in |
| Series | : | LCB |
| Specifications | : | 1-5/8 in L Wire Strip, Tin Plated |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 1.06 in W x 0.14 in THK |
| Tongue Type | : | Straight |
| Type | : | 1-Hole |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 4/0 AWG |
| Conductor Type | : | Copper/Stranded |
| Die Code | : | P54 |
| Stud Size | : | 3/8 in |
| Material | : | Tin Plated Copper |
- The long barrel maximizes the number of crimps and provides premium wire pullout strength and performance

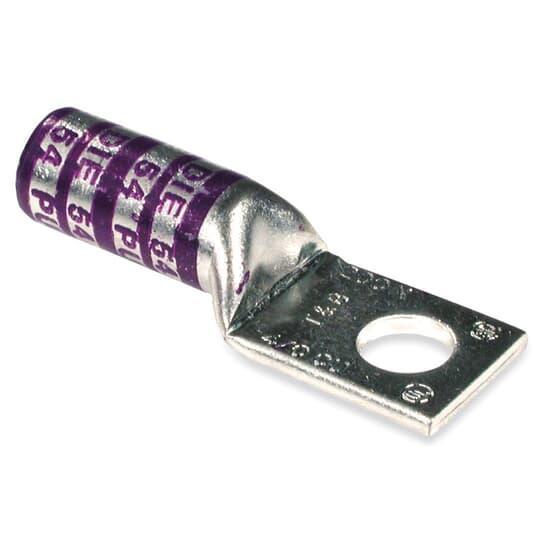

- color-coded barrel marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environment
- Tin-plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
- The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel
