The 2-layer, 100% solid thermo setting cathodic epoxy coating applied to these rugged, die cast pushbuttons provides a flat black, smooth, consistent and corrosion-resistant surface that has passed a demanding 600 hr salt spray test 4-times longer than the industry standard test.

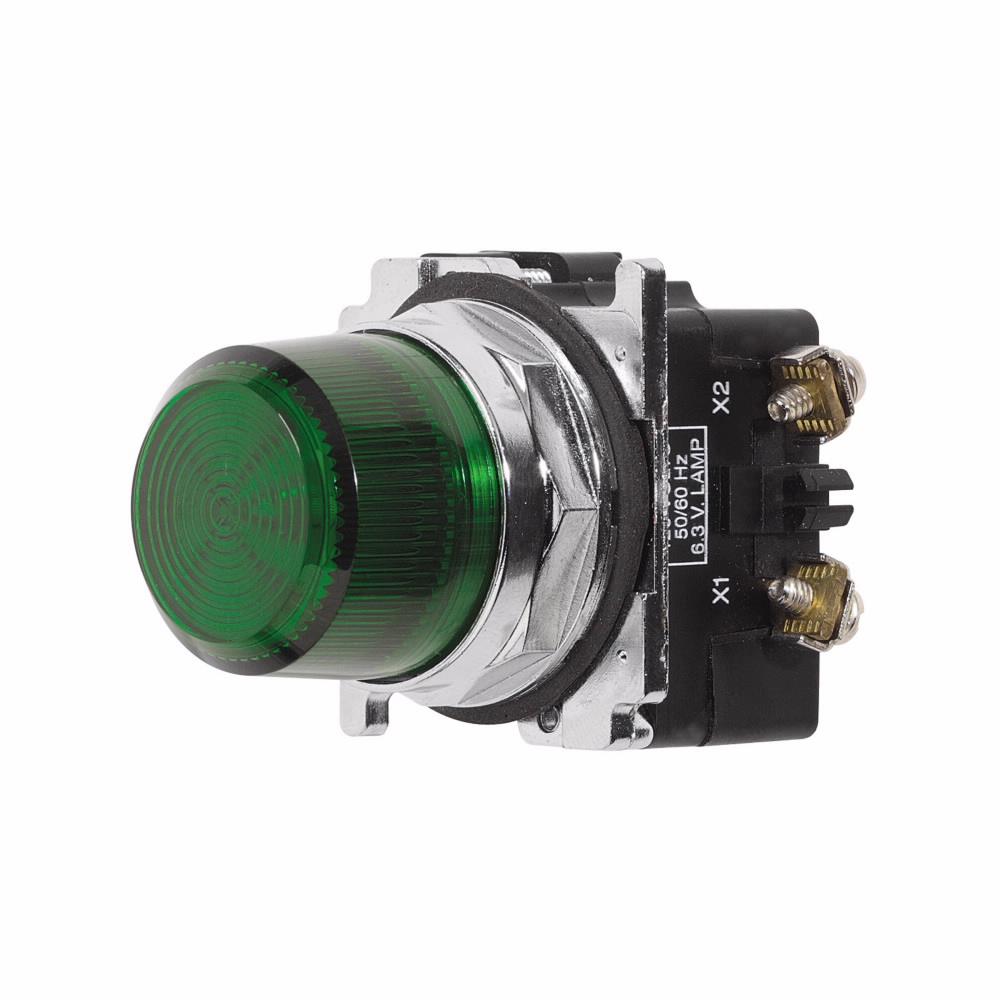

EATON Indicating Light, Corrosion-Resistant Standard Transformer Oiltight Watertight, Series: E34, 120 VAC, Green Lens, Plastic Lens, Incandescent Lamp, Bezel/Housing: Round Metal/Epoxy Powder Coated, 30.5 mm Size, Bayonet Base, Screw Terminal, NEMA 3/3R/3S/4/4X/12/13 Enclosure, Environmental Conditions: 1 to 150 deg F Operating, -40 to 176 deg F Storage, 95% RH at 60 deg C Humidity
| Base Type | : | Bayonet |
| Bezel/Housing | : | Round Metal/Epoxy Powder Coated |
| Enclosure Type | : | NEMA 3/3R/3S/4/4X/12/13 |
| Environmental Conditions | : | 1 to 150 deg F Operating, -40 to 176 deg F Storage, 95% RH at 60 deg C Humidity |
| Lamp Type | : | Incandescent |
| Lens Color | : | Green |
| Lens Material | : | Plastic |
| Series | : | E34 |
| Size | : | 30.5 mm |
| Terminal Type | : | Screw |
| Type | : | Corrosion-Resistant Standard Transformer Oiltight Watertight |
| Voltage Rating | : | 120 VAC |
