A power outlet panel (or POP) is a device designed for outdoor service to meet temporary power requirements at construction sites and RV parks. POPs provide a safe and reliable means for users to access electricity at such locations.

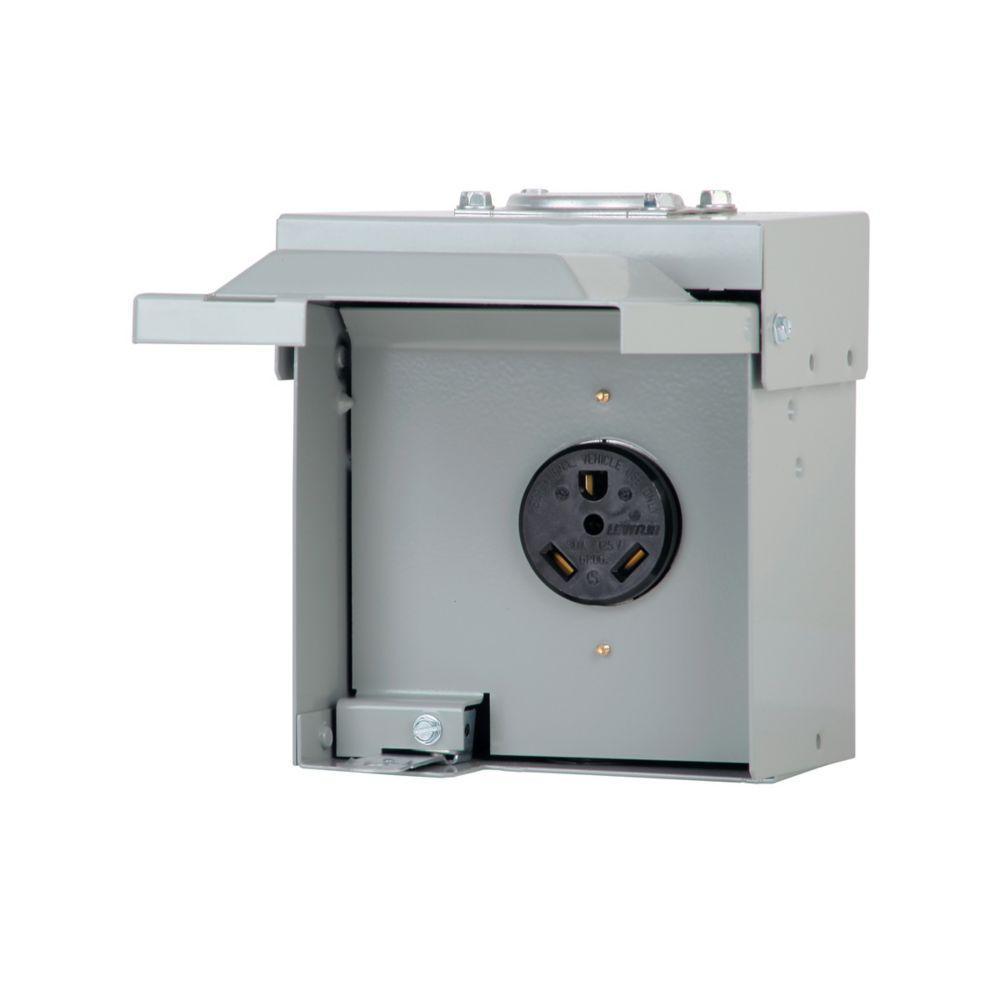

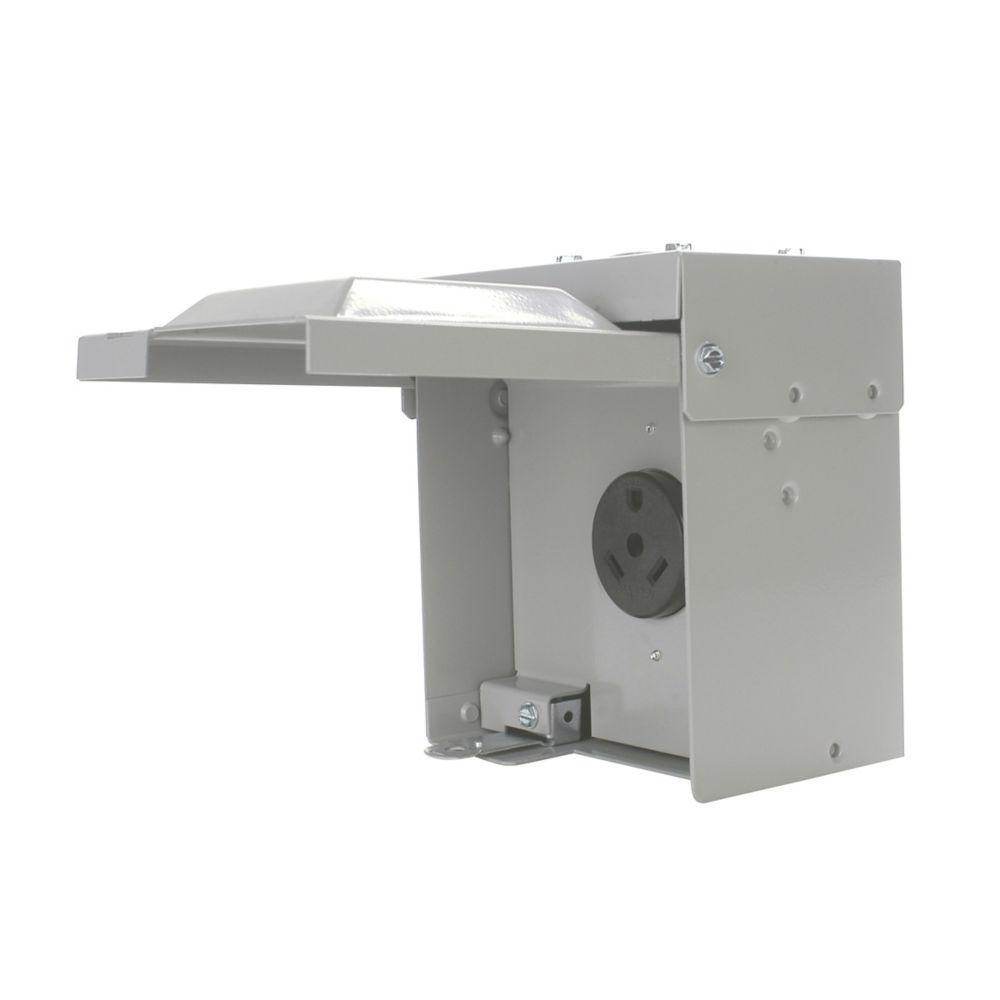

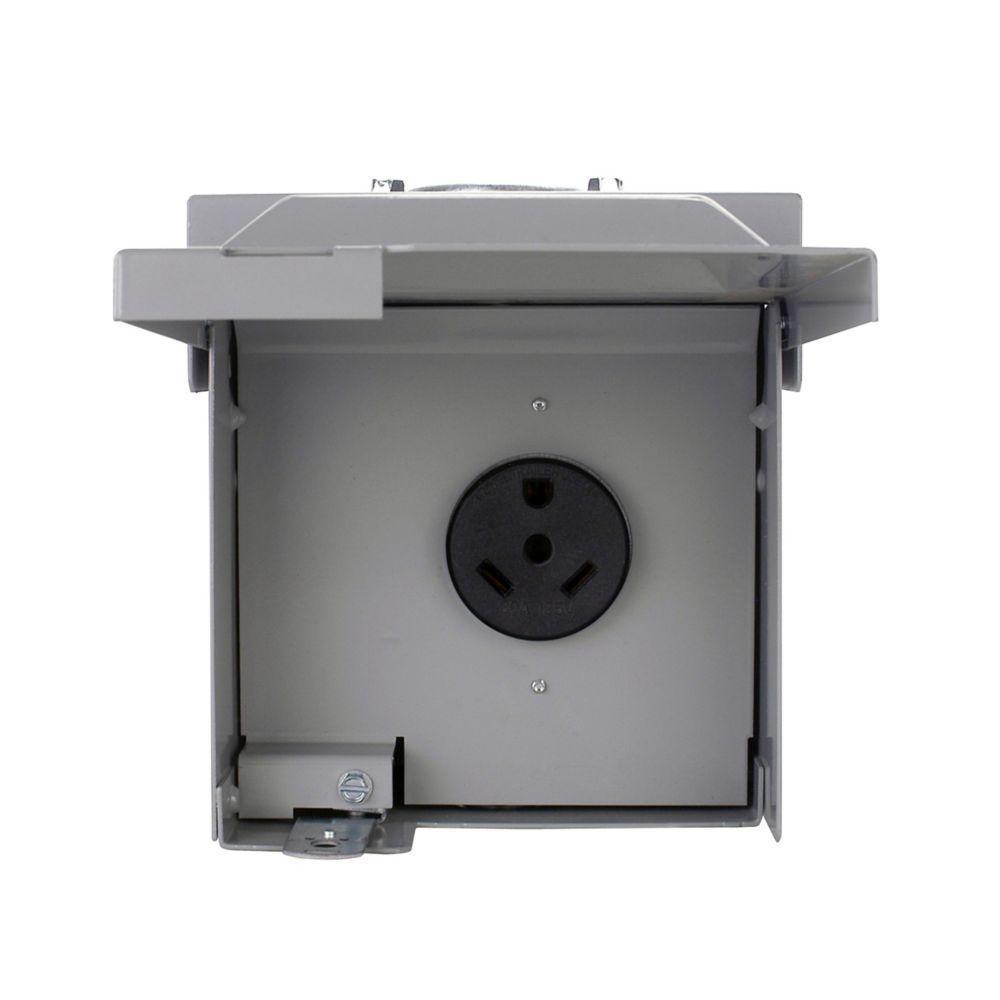

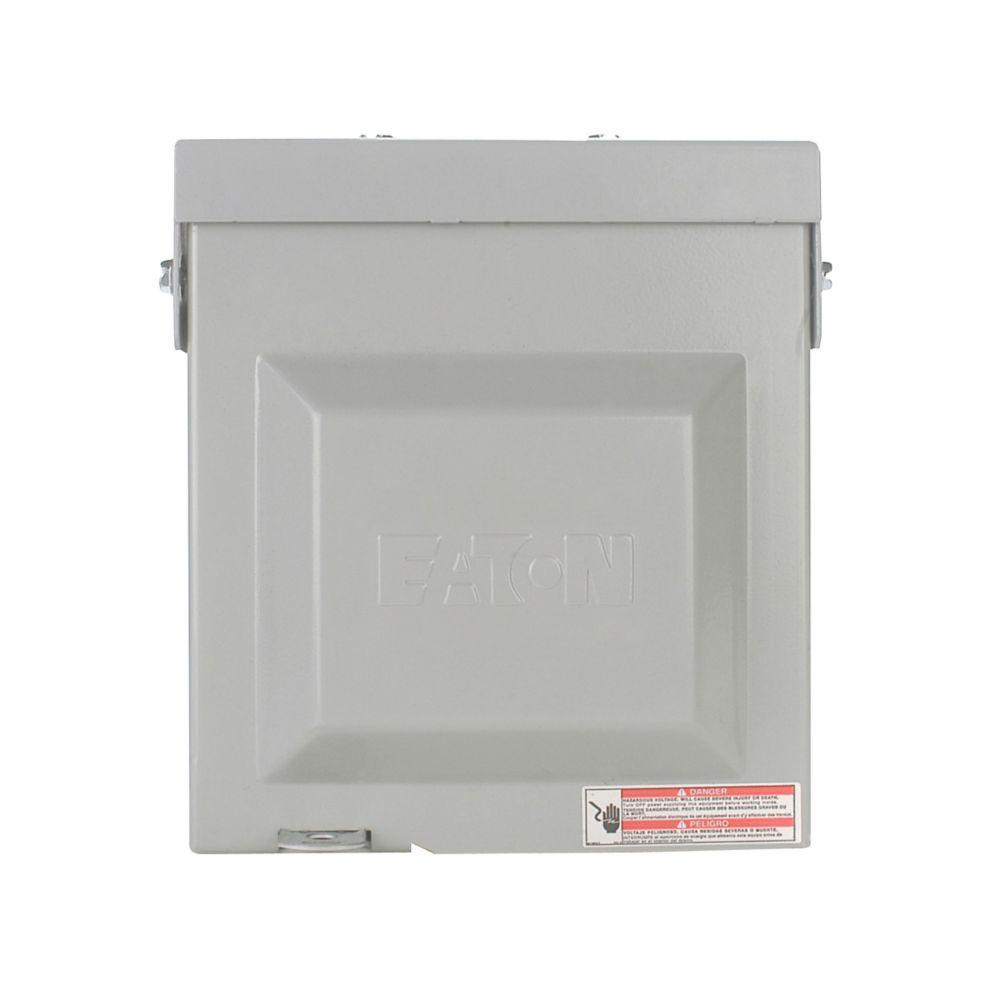

EATON Power Outlet Panel, 2-Pole 3-Wire 4-Circuit, 125 VAC, 30 A, NEMA TT-30R Receptacle, Non-Ground Fault Circuit Breaker Type, 8 to 2/0 AWG Wire, Top Feed, NEMA 3R, Galvanized Steel, Surface Mount
| Circuit Breaker Type | : | Non-Ground Fault |
| Enclosure Type | : | NEMA 3R |
| Feed Type | : | Top |
| Material | : | Galvanized Steel |
| Receptacle Type | : | NEMA TT-30R |
| Type | : | 2-Pole 3-Wire 4-Circuit |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 30 A |
| Wire Size | : | 8 to 2/0 AWG |
| Mounting Type | : | Surface |
- Receptacles conform to NEMA and/or ANSI configurations as specified by the national electrical Code® (NEC)
- Includes a factory installed insulated neutral bar with provisions for bonding when used for temporary service entrance applications
- NEMA TT-30R receptacle left
Specification Sheet
