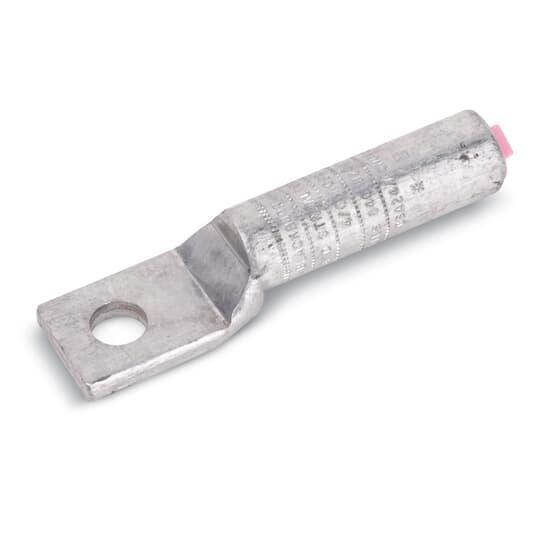

Color-Keyed® Compression Lug, 1-Hole, Series: ATL, Stranded Aluminum Conductor, 1 AWG Conductor, 35 kV, 3/8 in Stud, Straight Tongue, 29/32 in L x 3/4 in W x 3/16 in THK Tongue, 2-3/8 in Overall Length, Standard Barrel, 27/32 in L Barrel, Specifications: Tin Plated, Aluminum, Gold
| Barrel Size | : | 27/32 in L |
| Barrel Type | : | Standard |
| Color | : | Gold |
| Overall Length | : | 2-3/8 in |
| Series | : | ATL |
| Specifications | : | Tin Plated |
| Tongue Size | : | 29/32 in L x 3/4 in W x 3/16 in THK |
| Tongue Type | : | Straight |
| Type | : | 1-Hole |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 1 AWG |
| Conductor Type | : | Stranded Aluminum |
| Stud Size | : | 3/8 in |
| Material | : | Aluminum |
- Specifically designed for use with aluminum conductors (concentric, compressed or compact)
- Also listed for use with copper conductors
- Made of high conductivity seamless aluminum tubing
- Chamfered barrels for ease of installation
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Color coded for quick, easy die identification
- Prefilled with oxide-inhibitor
- Tin plated for corrosion-resistance
