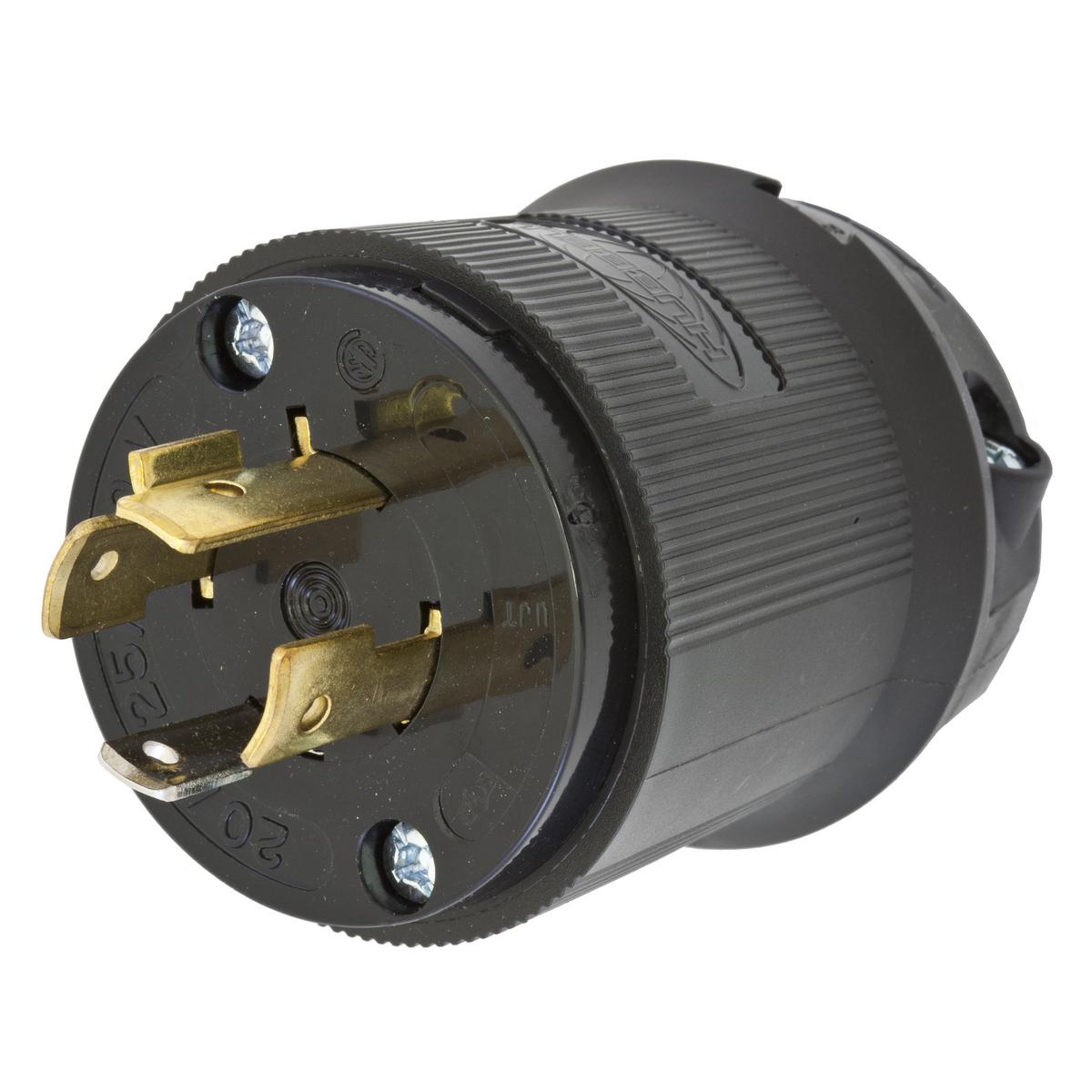

Wiring Device-Kellems HBL2411
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2411 1-Phase Grounding Cord Mount Locking Plug, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL2411
- Brand Name: Wiring Device-Kellems
- UPC: 783585038131
- FEPN: HBL2411 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 1-Phase Grounding Cord Mount, 125/250 VAC, 20 A, 2 hp, 3 Pole, 4 Wires, L14-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 2.75 in
| Cord Diameter | : | 0.35 to 1.15 in |
| Dimensions | : | 2.33 x 2.33 x 2.75 in |
| Enclosure | : | IP20 |
| Grade | : | Industrial |
| Horsepower | : | 2 hp |
| Material | : | Nylon |
| NEMA Rating | : | L14-20P |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Grounding Cord Mount |
| Voltage Rating | : | 125/250 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black/White |
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
- Natural white nylon blade holder material, cord clamp material
- Clear polycarbonate terminal retainer material
- Brass blade material, terminal screw material, ground screw material
- Steel nickel plated terminal clamp material
- Steel, zinc plated cord clamp screw material, body holding screw material
- 16 to 8 AWG stranded copper wire only terminal accommodation
- NO 10-32 brass (phillips-slotted/Robertson) terminal screws
