Panduit® LCAF6-38-L

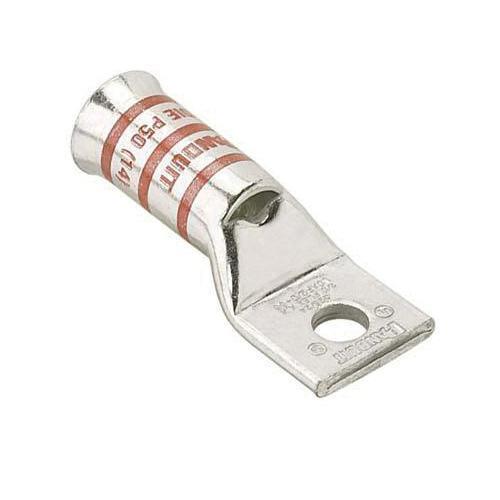

Panduit® Pan-Lug™ LCAF6-38-L 1-Hole Compression Connector Lug, 6 AWG Flexible Copper Conductor, Die Code: P24, 3/8 in Stud, Tin Plated Copper
- Manufacturer Name: Panduit
- MPN: LCAF6-38-L
- Brand Name: Panduit®
- UPC: 074983557318
- FEPN: LCAF6-38-L PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Lug™ Compression Connector Lug, 1-Hole, Series: LCAF, Flexible Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 3/8 in Stud, Flared/Straight Tongue, 0.62 in W x 0.06 in THK Tongue, 1.83 in Overall Length, Standard Barrel, 0.22 in ID x 0.37 in OD x 0.81 in L Barrel, 7/8 in L Wire Strip, 90 deg C, 42.954 in Mounting Hole, Tin Plated Copper, Blue
| Barrel Size | : | 0.22 in ID x 0.37 in OD x 0.81 in L |
| Barrel Type | : | Standard |
| Color | : | Blue |
| Mounting Hole Size | : | 42.954 in |
| Overall Length | : | 1.83 in |
| Series | : | LCAF |
| Specifications | : | 7/8 in L Wire Strip |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 0.62 in W x 0.06 in THK |
| Tongue Type | : | Flared/Straight |
| Type | : | 1-Hole |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 6 AWG |
| Conductor Type | : | Flexible Copper |
| Die Code | : | P24 |
| Stud Size | : | 3/8 in |
| Material | : | Tin Plated Copper |
- Color-coded bands for proper die selection and crimp placement
- Can be used with flex conductor class K, M and diesel locomotive
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Inspection window to assure complete conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Full Engineering Drawing
