Wiring Device-Kellems HBL2323SW

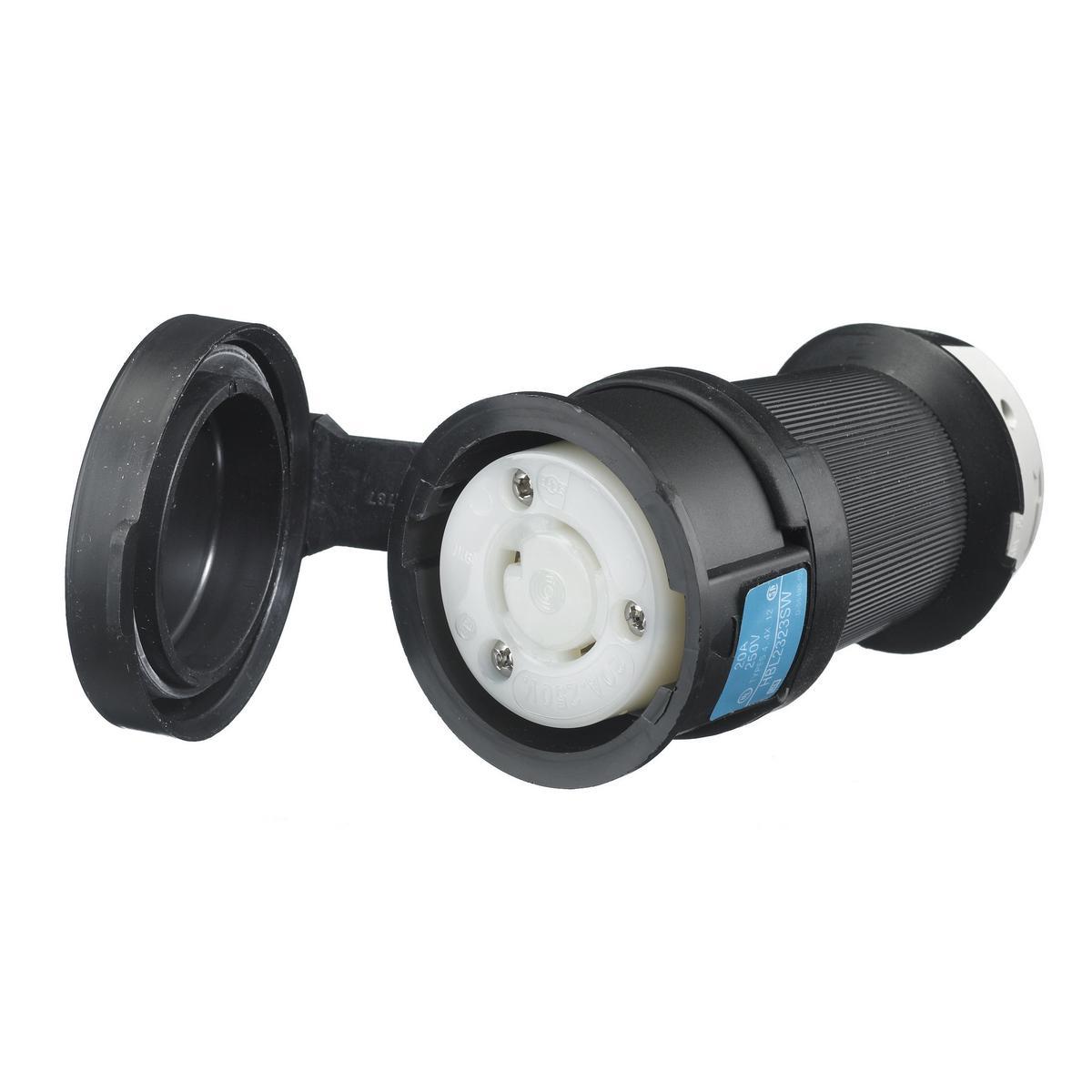

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2323SW Heavy Duty Isolated Grounding Shrouded Standard Sized Watertight Cord Mount Female Connector, 250 VAC, 20 A, 2 Poles, 3 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL2323SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231129
- FEPN: HBL2323SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Insulgrip® Female Connector, Heavy Duty Isolated Grounding Shrouded Standard Sized Watertight Cord Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20R/WD1/WD5 NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.57 x 2.57 x 4.4 in
| Cord Diameter | : | 0.36 to 0.93 in |
| Dimensions | : | 2.57 x 2.57 x 4.4 in |
| Enclosure | : | NEMA 4/4X/12/IP66 |
| Grade | : | Industrial |
| Horsepower | : | 2 hp |
| Material | : | Composite |
| NEMA Rating | : | L6-20R/WD1/WD5 |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Pressure Screw |
| Type | : | Heavy Duty Isolated Grounding Shrouded Standard Sized Watertight Cord Mount |
| Voltage Rating | : | 250 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Black/White |
- One piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
- Closure cap is included for environmental seal when device is not in use
- Superior cord grip design for flat cable protects terminations from excess strain
- UL Type 4X environmental seal protects connection while in use
