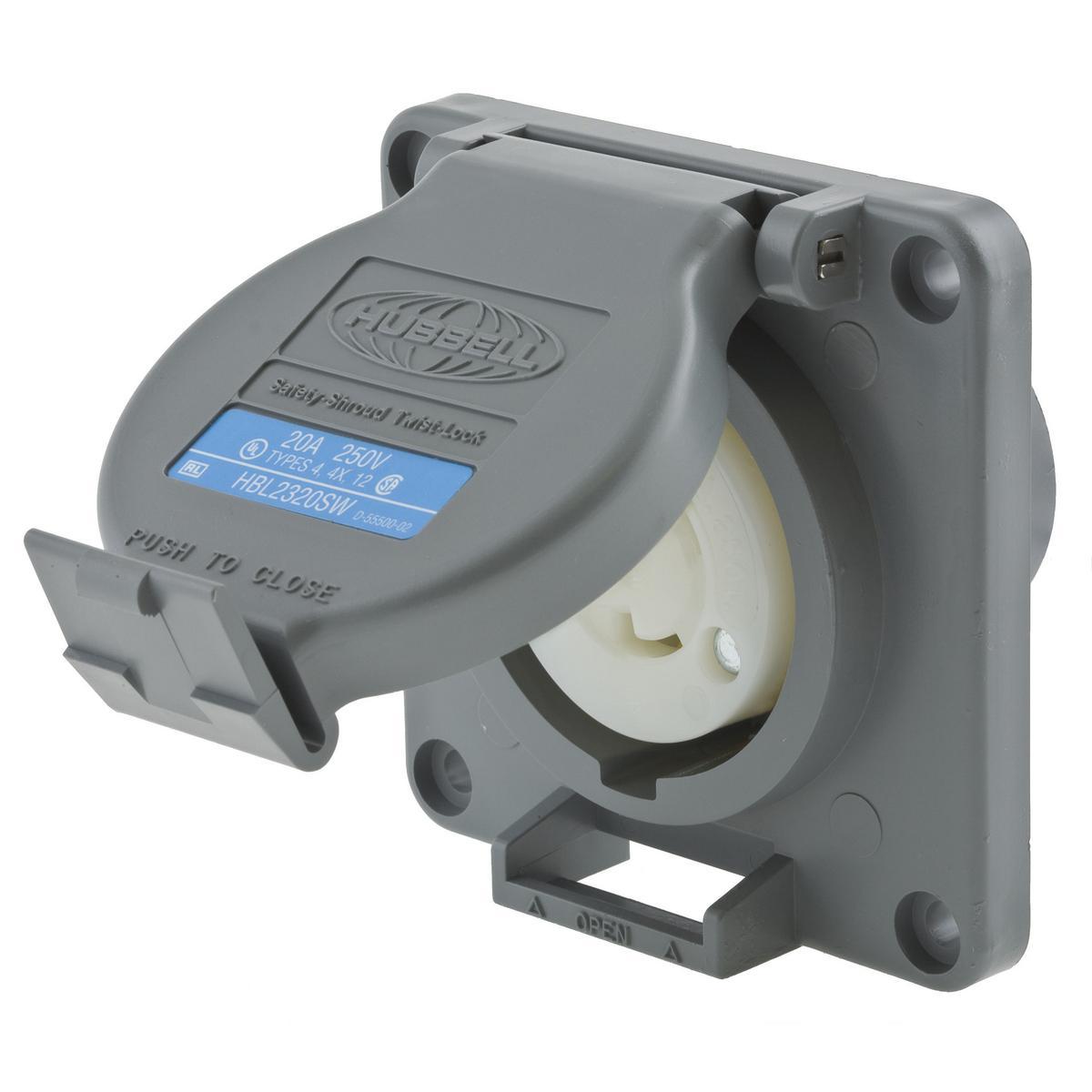

Wiring Device-Kellems HBL2320SW
Wiring Device-Kellems Safety-Shroud® Twist-Lock® HBL2320SW 1-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount Locking Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Gray/White
- Manufacturer Name: Hubbell
- MPN: HBL2320SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231082
- FEPN: HBL2320SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Safety-Shroud® Twist-Lock® Locking Receptacle, 1-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 3.75 x 3.75 x 2.69 in
| Dimensions | : | 3.75 x 3.75 x 2.69 in |
| Enclosure | : | IP20 |
| Grade | : | Industrial |
| Horsepower | : | 2 hp |
| Material | : | Thermoplastic |
| NEMA Rating | : | L6-20R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount |
| Voltage Rating | : | 250 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Gray/White |
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- High impact, thermoplastic housing for heavy duty industrial environments
- Shrouded watertight construction
- UL type 4X environmental seal while in use and when closed
Line Drawing
VIDEO LINK
