Wiring Device-Kellems AFR15TRLA

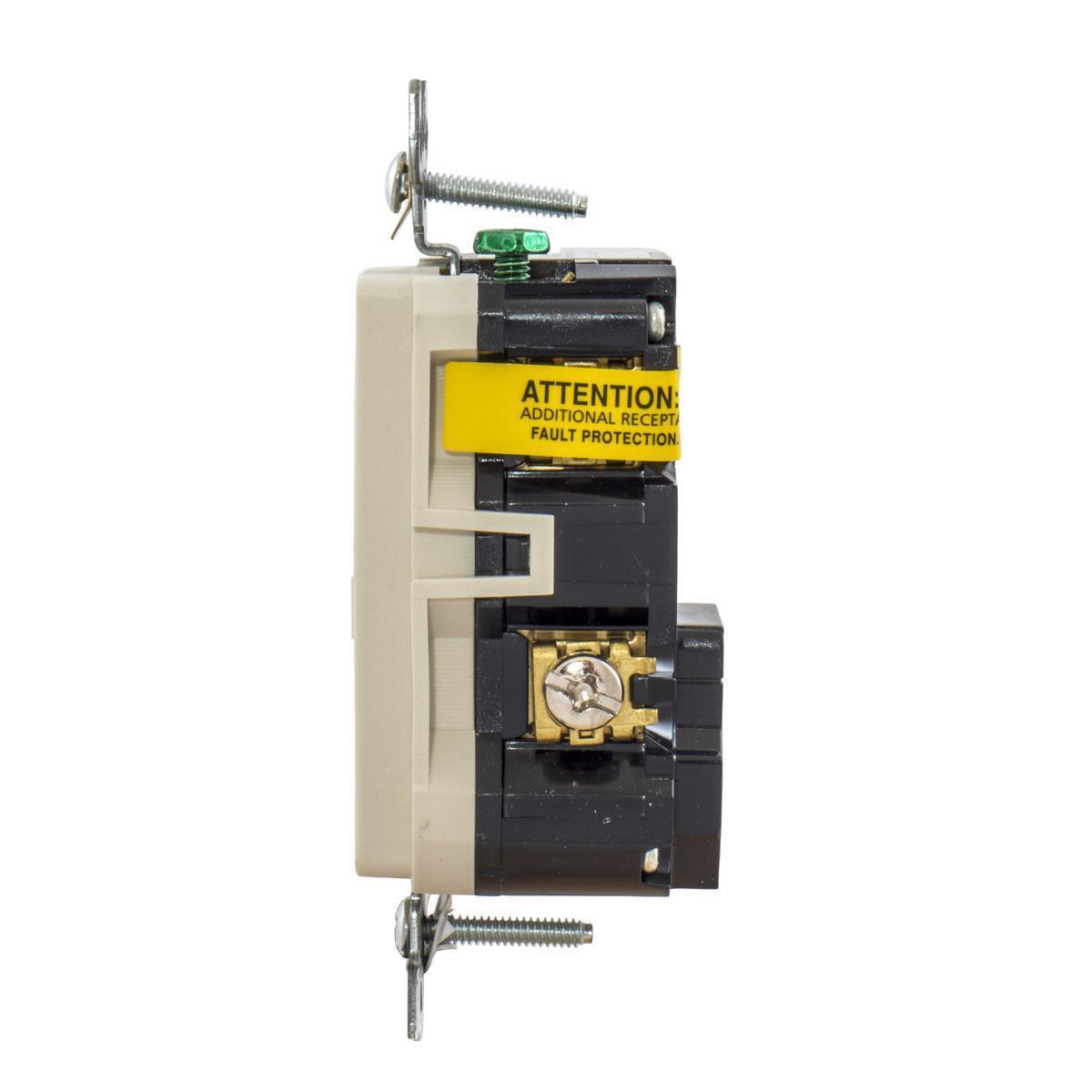

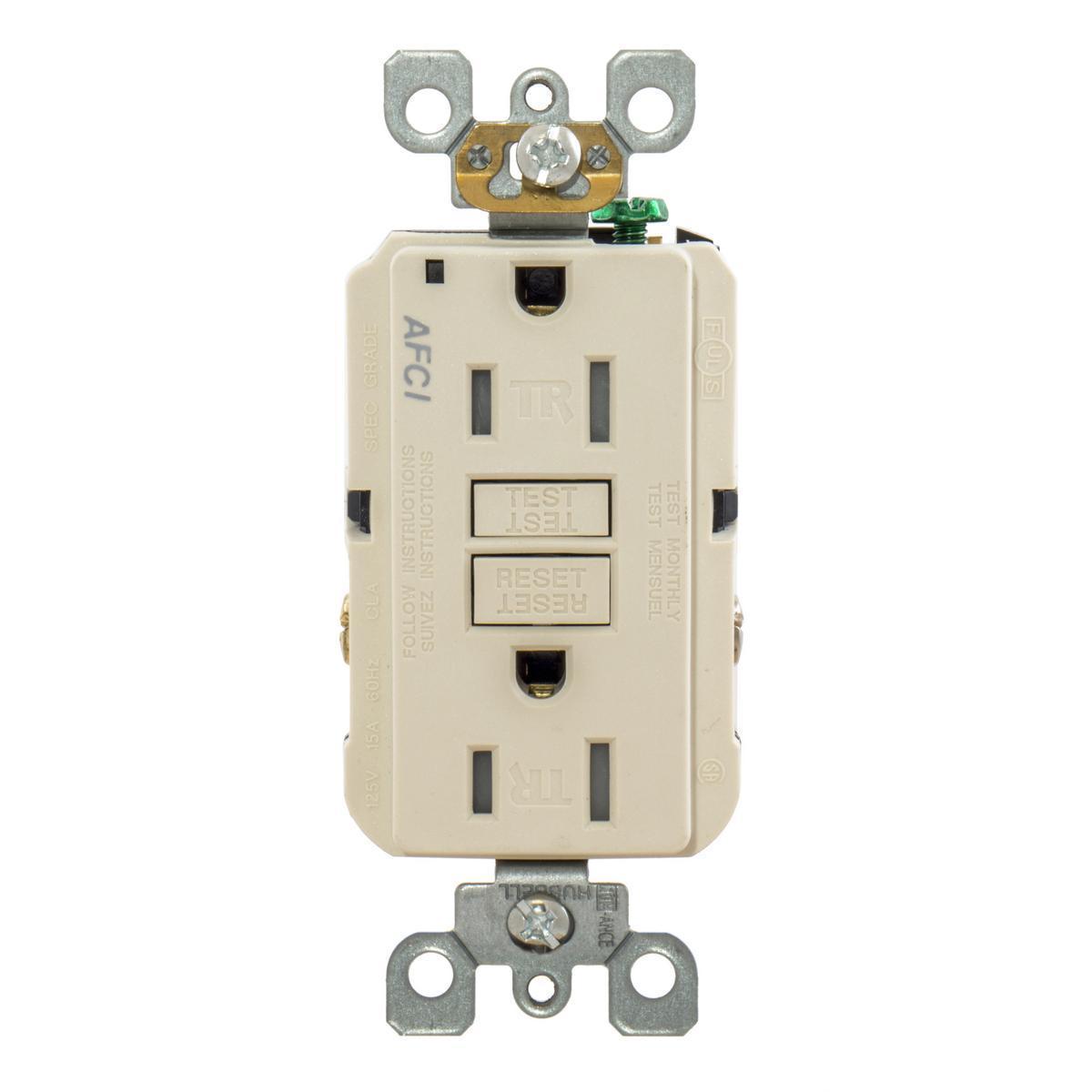

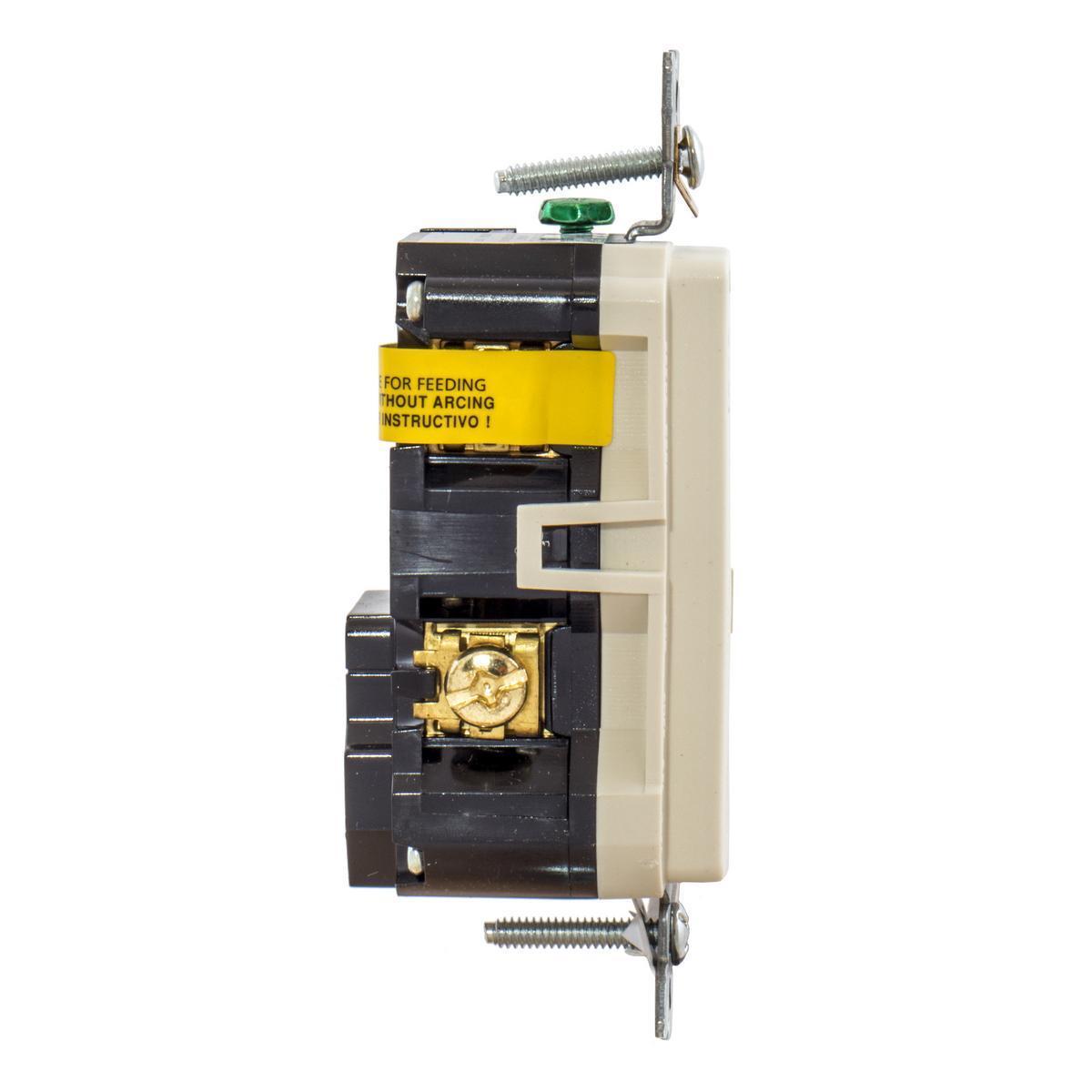

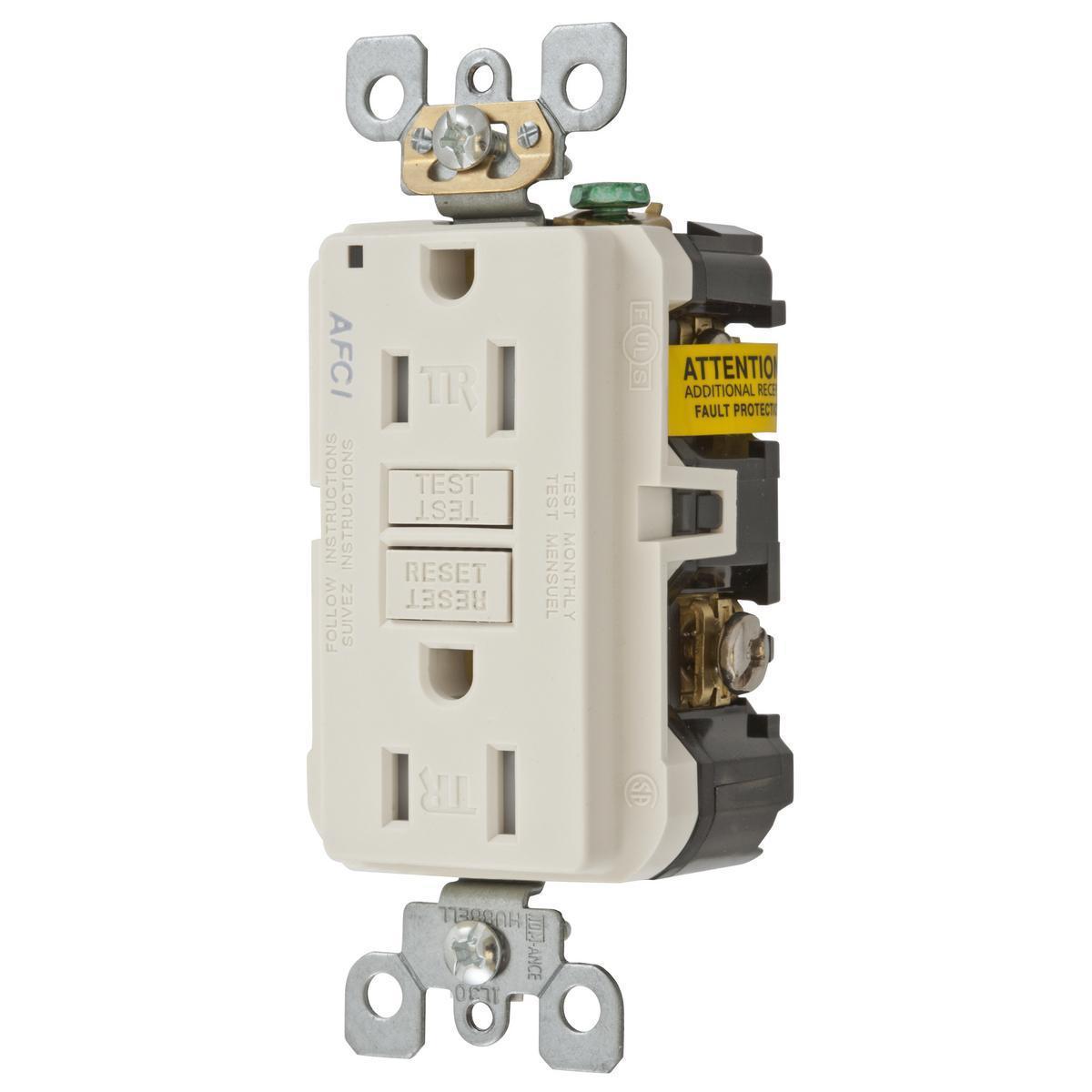

Wiring Device-Kellems AFR15TRLA Decorator Duplex Standard Tamper Resistant Arc Fault Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Light Almond
- Manufacturer Name: Hubbell
- MPN: AFR15TRLA
- Brand Name: Wiring Device-Kellems
- UPC: 783585426129
- FEPN: AFR15TRLA HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Arc fault circuit interrupter (AFCI) protection shall be provided in dwelling units for all 120 VAC, single phase, 15 A and 20 A branch circuits supplying outlets or devices in kitchens, family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, laundry areas or similar rooms or areas. AFCI protection shall also be installed in dormitory unit bedrooms, living rooms, hallways, closets and similar rooms.
Wiring Device-Kellems, AFR15TRLA, Arc Fault Receptacle, Decorator Duplex Standard Tamper Resistant, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Residential Grade, -30 to 150 deg F, Screw Terminal, Thermoplastic/Composite, Light Almond, 4.21 in H x 1.31 in W x 1.29 in D Dimensions
| Dimensions | : | 4.21 in H x 1.31 in W x 1.29 in D |
| Grade | : | Commercial/Residential |
| Horsepower | : | 1/2 hp |
| Material | : | Thermoplastic/Composite |
| NEMA Rating | : | NEMA 5-15R |
| Temperature Rating | : | -30 to 150 deg F |
| Terminal Type | : | Screw |
| Type | : | Decorator Duplex Standard Tamper Resistant |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Light Almond |
- Meets new 2017 national electric code for AFCI protection
- Meets or exceeds UL requirements for tripping time on series and parallel arcs
- Tamper resistant and self-grounding construction are standard features
- Automatically tests the AFCI each time the reset button is pressed in place
- Green power ON LED indicator
- No reset when tested if AFCI functionality is compromised
- 14 to 10 AWG terminal
- Self-grounding clip
- 20 A protection feed-thru
- Outlet branch circuit arc fault receptacle with tamper-resistant outlets 20 A, 125 VAC feed through and LED indicator
- Terminal screw connection
- Indoor dry unless protected by additional means
- Screw mount
- Straight blade receptacle
- 1500 W wattage
- 15 A ampere rating
Instruction/Installation Manual
