EATON E34GDB
Send Print
  1. pin-int

EATON E34GDB

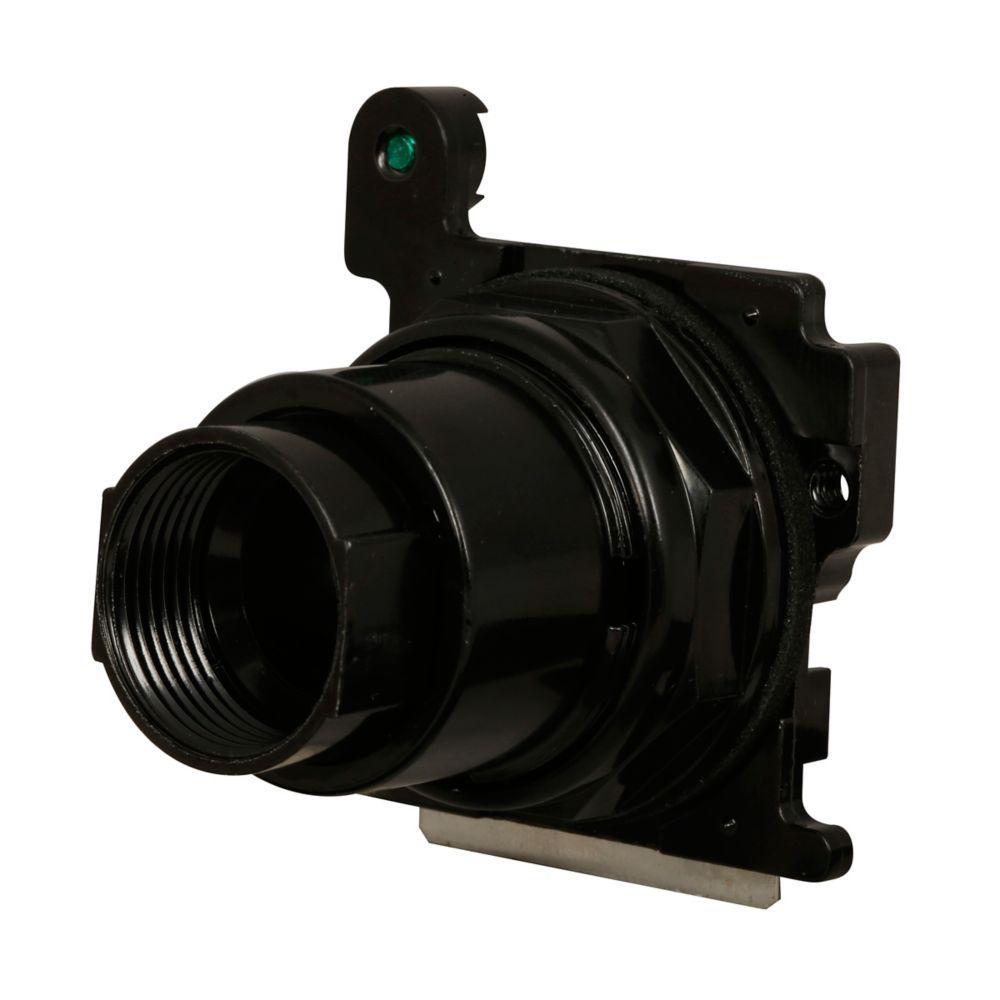

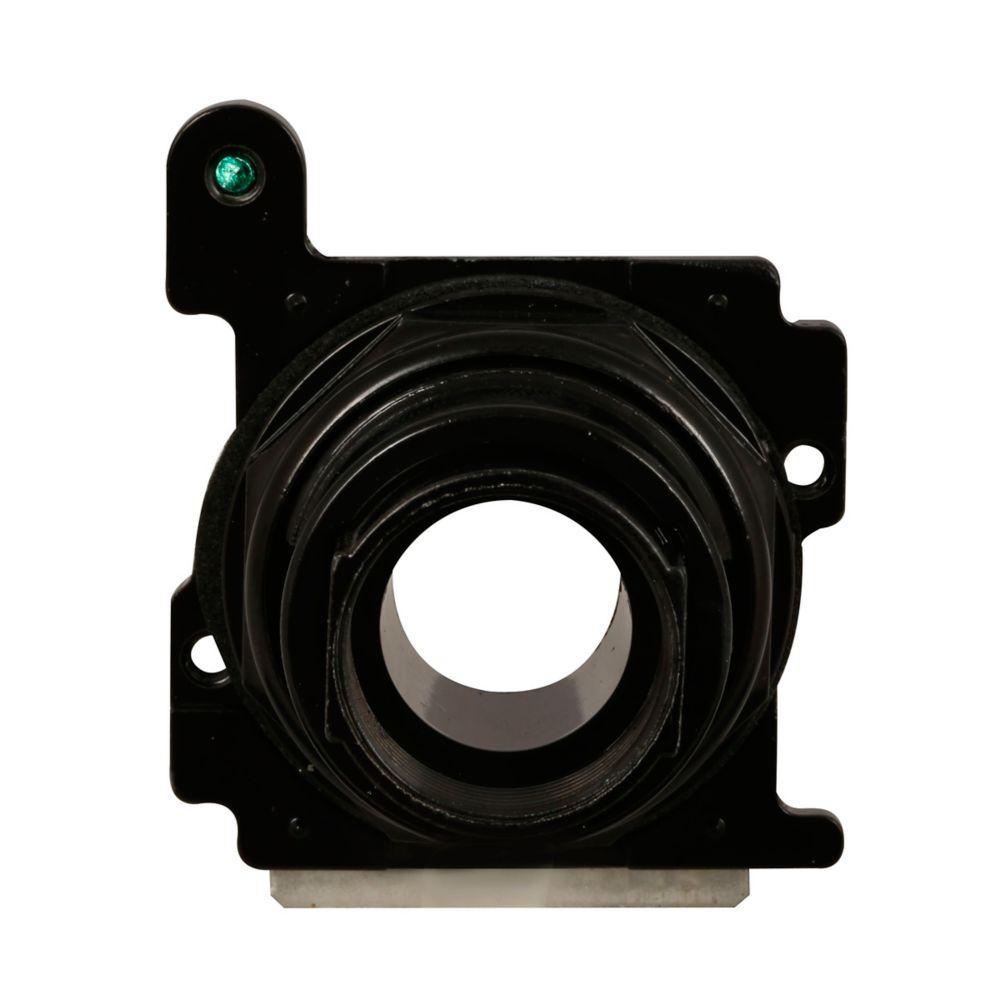

EATON E34GDB Corrosion-Resistant Oiltight/Watertight Non-Illuminated Push/Pull Operator, 30.5 mm, 1NC-1NO Contact, 2 Positions

  • Manufacturer Name: Eaton
  • MPN: E34GDB
  • Brand Name: EATON
  • UPC: 782113702858
  • FEPN: E34GDB EC
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

The two-layer, 100 percent solid thermosetting cathodic epoxy coating applied to these rugged, die cast pushbuttons provides a flat black, smooth, consistent and corrosion-resistant surface that has passed a demanding 600-hour salt spray test four times longer than the industry-standard test.

EATON Non-Illuminated Push/Pull Operator, Corrosion-Resistant Oiltight/Watertight, Series: E34, 30.5 mm Size, 1NC-1NO Contact Configuration, Maintained Contact Mode, 2 Positions, Push/Pull Operator, NEMA 3/3R/4/4X/12/13 Enclosure, Bezel/Housing: Metal

Bezel/Housing       :      Metal
Contact Mode       :      Maintained
Enclosure Type       :      NEMA 3/3R/4/4X/12/13
Operator Type       :      Push/Pull
Series       :      E34
Type       :      Corrosion-Resistant Oiltight/Watertight
Size       :      30.5 mm
Contact Configuration       :      1NC-1NO
Number of Positions       :      2
  • Use NEMA 4X 10250T operators where exposed to UV light
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_10250T2_Technical_Bulletin.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_E34GDB_Specification_Sheet.pdf
  • pdfOwners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_E34VHBA2_User_Manual.pdf
  • linkVIDEO LINK http://videos.eaton.com/detail/video/6243433319001/how-to-size-and-select-a-power-supply?autoStart=true&q=power%20supplies
