For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

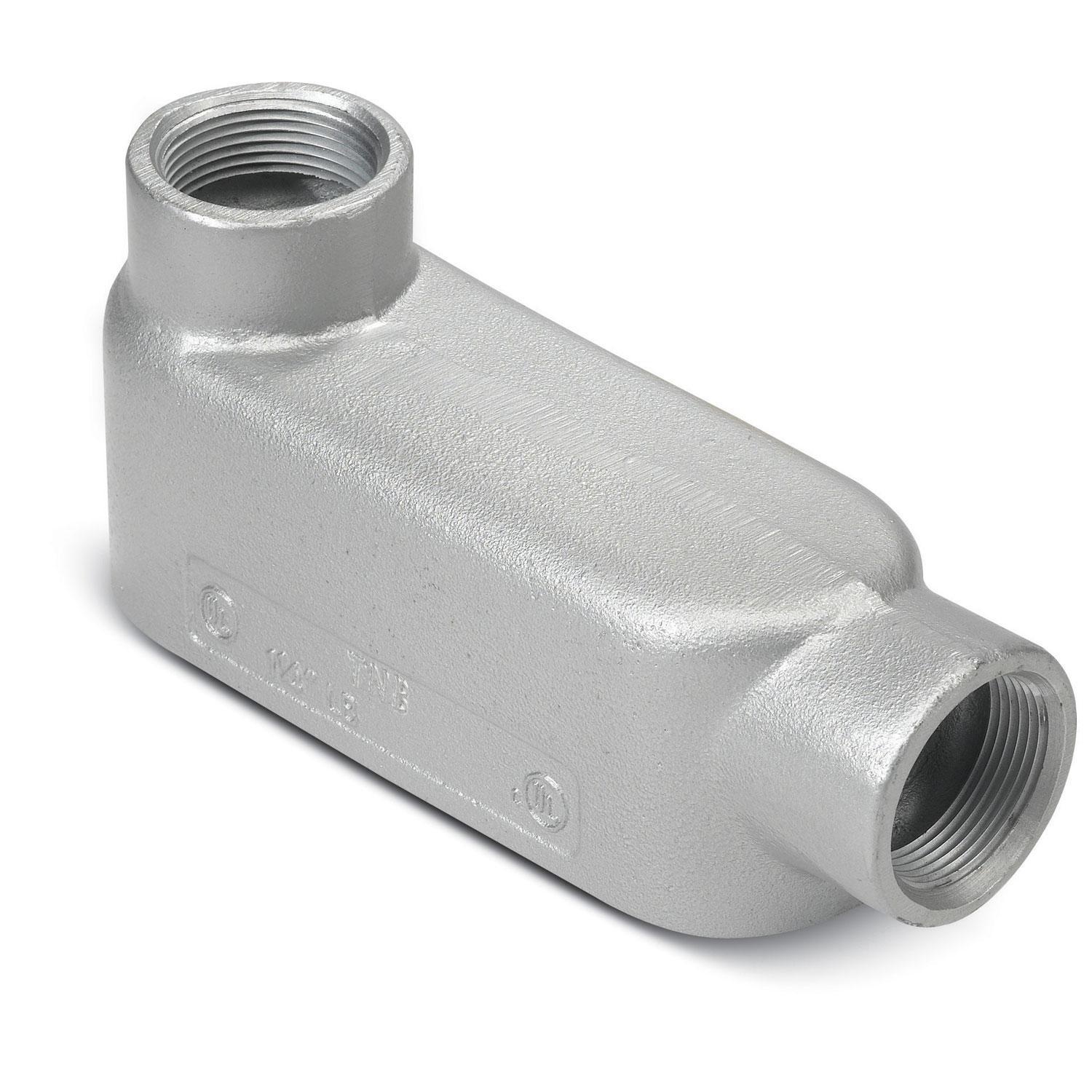

T&B® Conduit Body, Type LB, Series: 35 Series, 1/2 in Hub, 2 Hubs, 4.5 cu-in, Tapered NPT, Malleable Iron, Aluminum Acrylic Coated/Zinc Plated, Gray, 4-11/16 in L x 2-1/16 in W x 1-5/16 in H
| Color | : | Gray |
| Connection Type | : | Tapered NPT |
| Dimensions | : | 4-11/16 in L x 2-1/16 in W x 1-5/16 in H |
| Number of Hubs | : | 2 |
| Series | : | 35 Series |
| Type | : | Type LB |
| Hub Size | : | 1/2 in |
| Capacity | : | 4.5 cu-in |
| Material | : | Malleable Iron |
| Finish | : | Aluminum Acrylic Coated/Zinc Plated |
- Zinc plated iron construction with aluminum acrylic coating provides durability, impact-resistant and corrosion-resistance
- Features tapered, threaded NPT hubs
- Suitable for use in concrete
- To connect conduit sections
- Serve as pulling outlets during conductor installations
- Provide easy access for splices in branch conductors
- Make 90 deg bends in conduit runs
Specification Sheet
