Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.

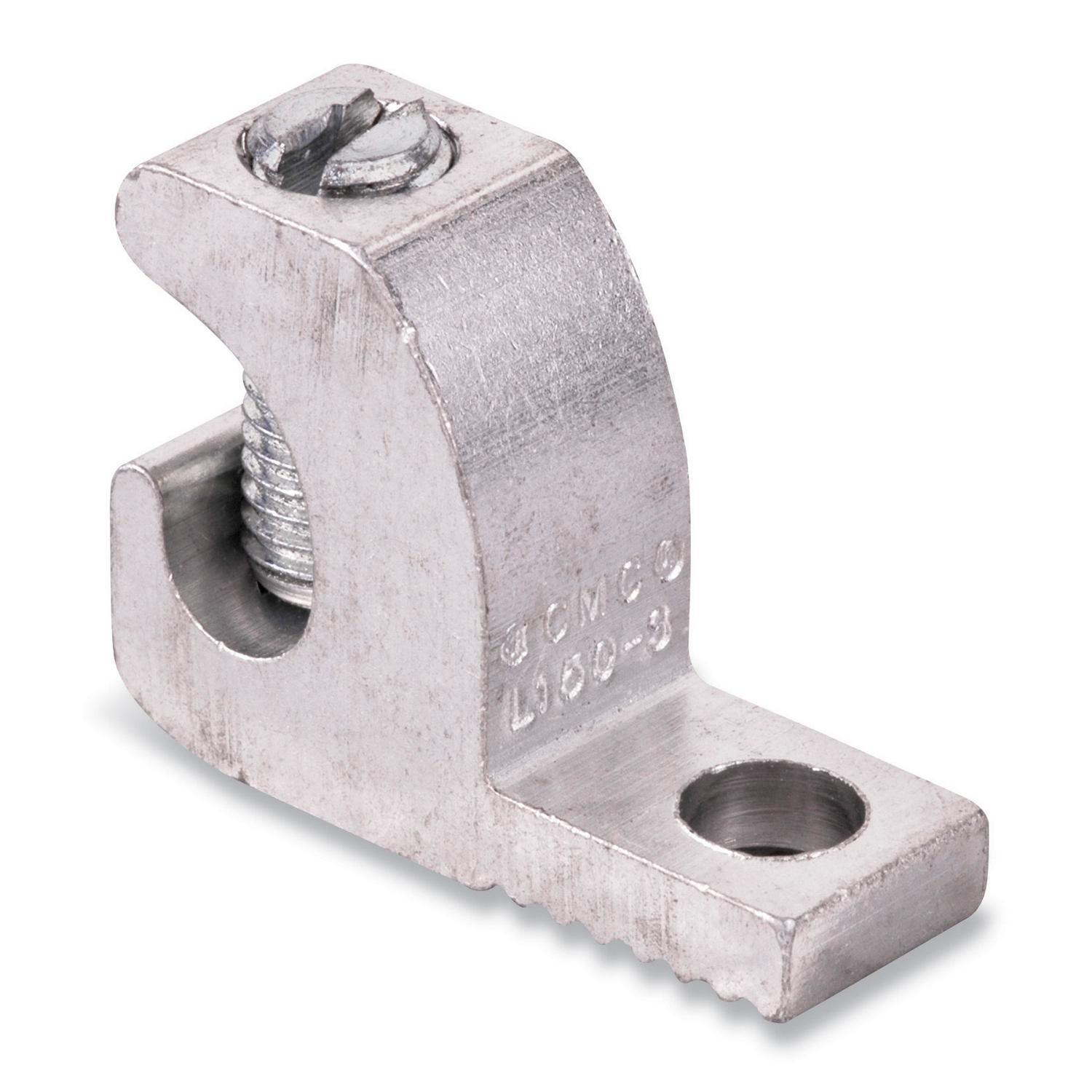

Blackburn® E-Z Ground® Lay-In Lug Connector, Mechanical, 14 to 4 AWG Conductor, 0.22 in Stud, Non-Insulated Insulation, Aluminum, TiN Coated, 1.07 in L x 0.38 in W x 0.78 in H
| Dimensions | : | 1.07 in L x 0.38 in W x 0.78 in H |
| Insulation Type | : | Non-Insulated |
| Type | : | Mechanical |
| Conductor Size | : | 14 to 4 AWG |
| Stud Size | : | 0.22 in |
| Material | : | Aluminum |
| Finish | : | TiN Coated |
- Dual rated for both copper and aluminum conductor
- Manufactured from 6061-T6 aluminum alloy for maximum strength and conductivity
- Open faced design enables installer to quickly lay-in grounding conductor as jumper to multiple conduits with no break in ground conductor
- 90 deg C operating temperature
