These new Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

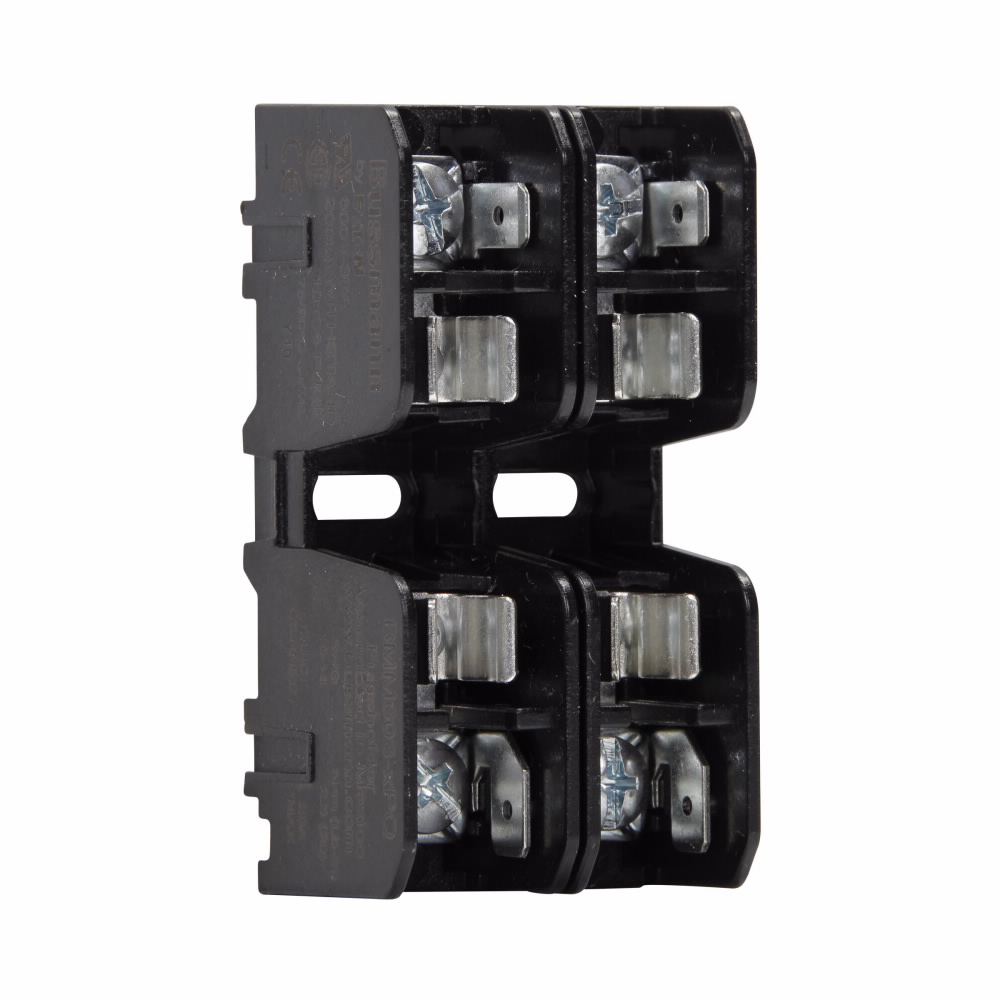

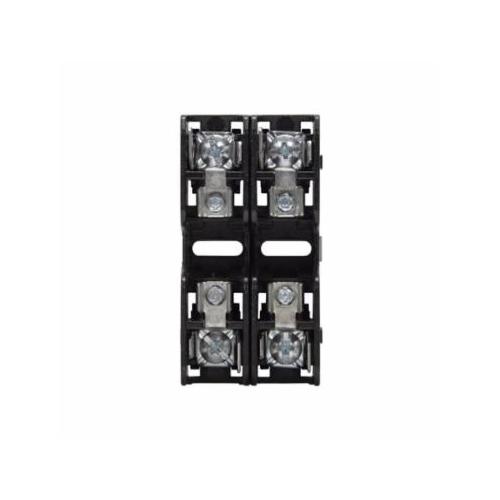

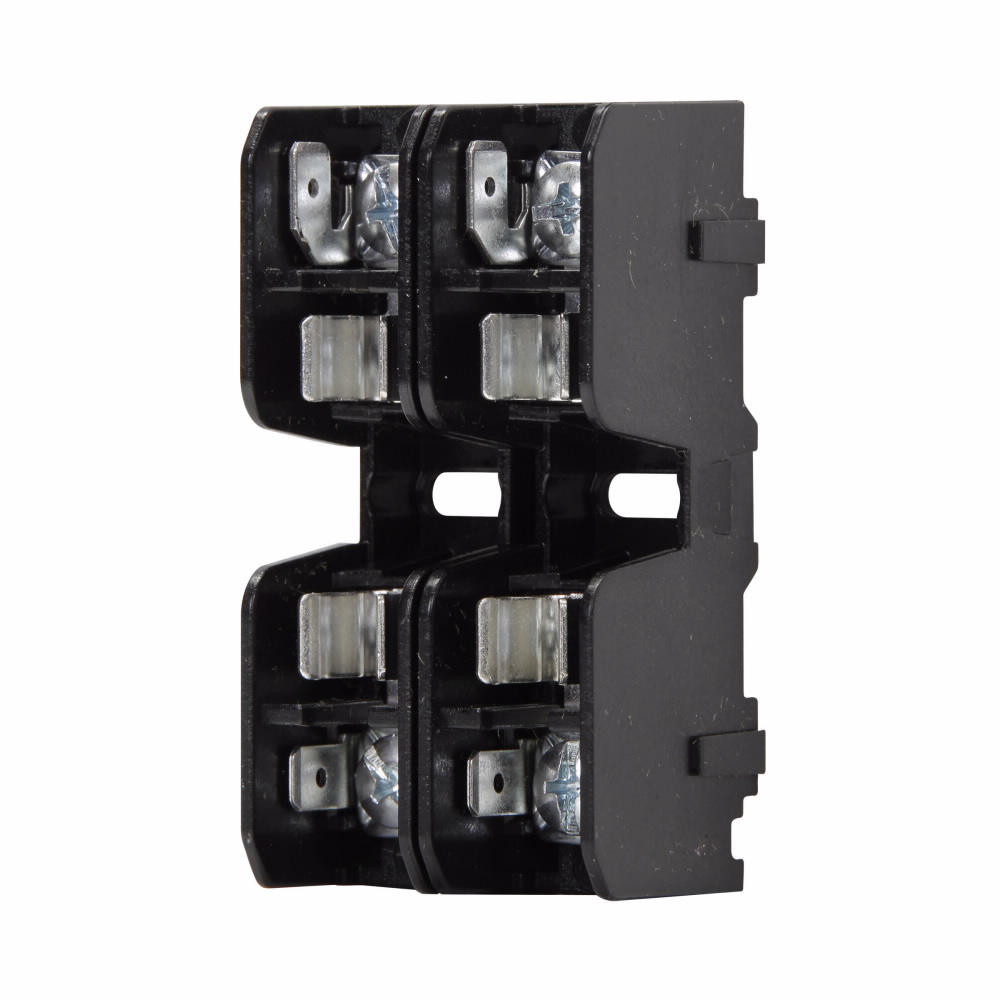

Bussmann Fuse Block, Modular, Series: BMM, 600 V, 30 A, 2 Pole, Class: CC/Midget, 1/4 in Quick-Connect/Pressure Plate, 18 to 10 AWG Wire, DIN Rail/Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 120 deg C, For Use With: BAF Series 250 VAC Fast Acting, KTK Series 600 VAC Fast Acting, KLM Series 600 VAC/VDC Fast Acting, FNM Series 250 VAC Time Delay, FNQ Series 500 VAC Time Delay and Class aM/gG/gL IEC Industrial Fuses, Thermoplastic, 3 in L x 1.6 in W x 1.3 in H
| Class | : | CC/Midget |
| Connection Type | : | 1/4 in Quick-Connect/Pressure Plate |
| Dimensions | : | 3 in L x 1.6 in W x 1.3 in H |
| Fuse Diameter | : | 13/32 in |
| Fuse Length | : | 1-1/2 in |
| Material | : | Thermoplastic |
| Mounting Type | : | DIN Rail/Panel |
| Series | : | BMM |
| Suitable For Use With | : | BAF Series 250 VAC Fast Acting, KTK Series 600 VAC Fast Acting, KLM Series 600 VAC/VDC Fast Acting, FNM Series 250 VAC Time Delay, FNQ Series 500 VAC Time Delay and Class aM/gG/gL IEC Industrial Fuses |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Modular |
| Voltage Rating | : | 600 V |
| Amperage Rating | : | 30 A |
| Wire Size | : | 18 to 10 AWG |
| Number of Poles | : | 2 |
- Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Compact footprint consumes minimal panel space
- Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
