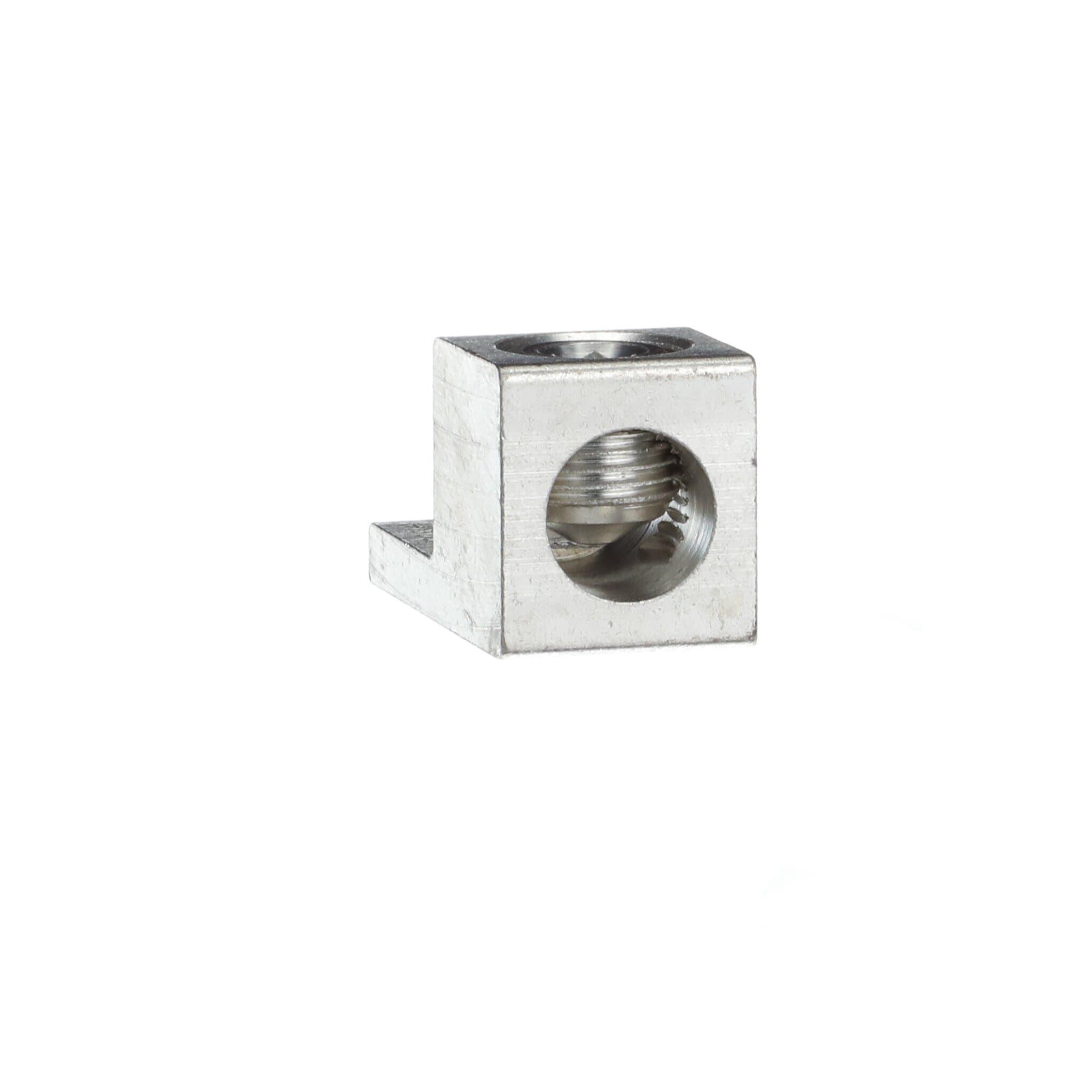

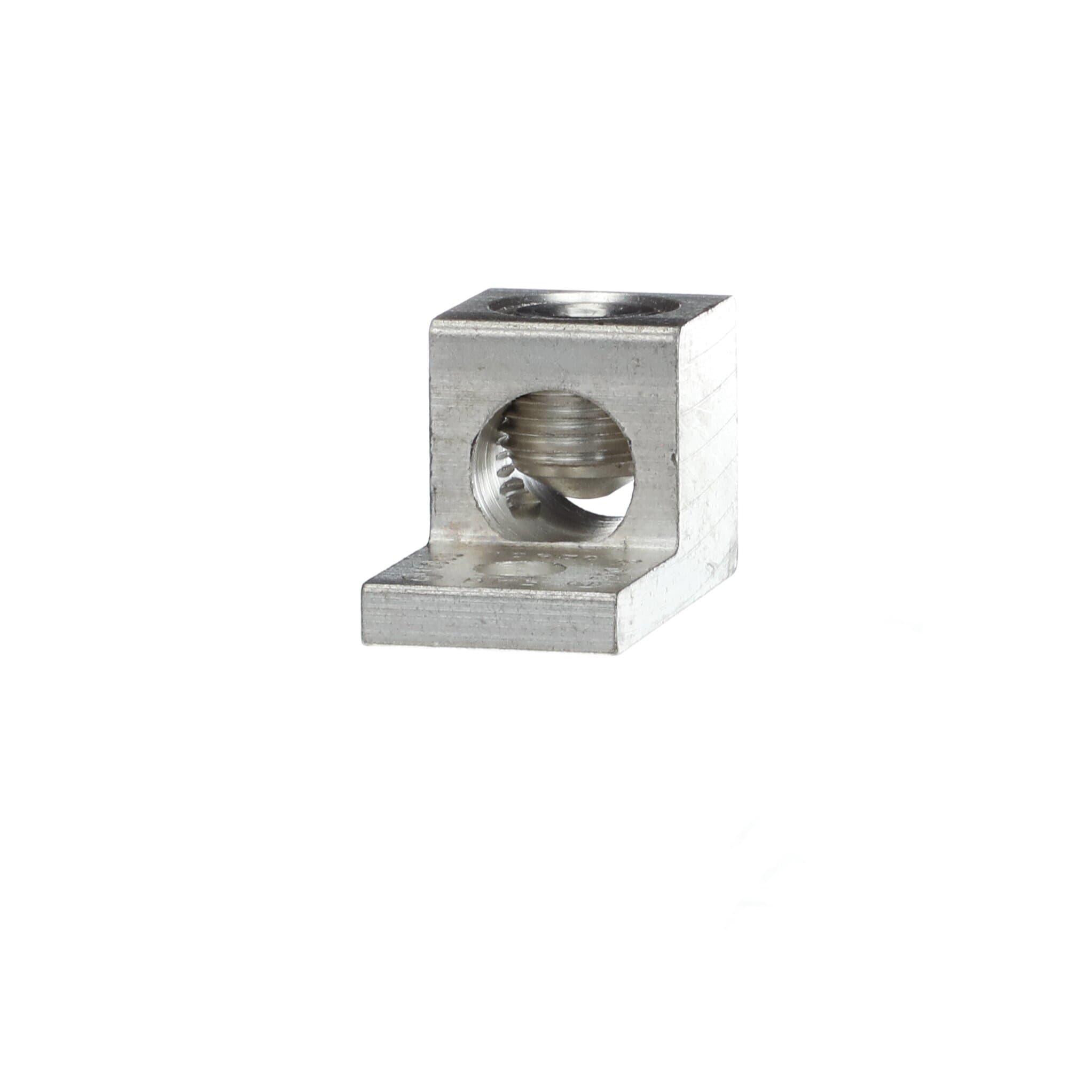

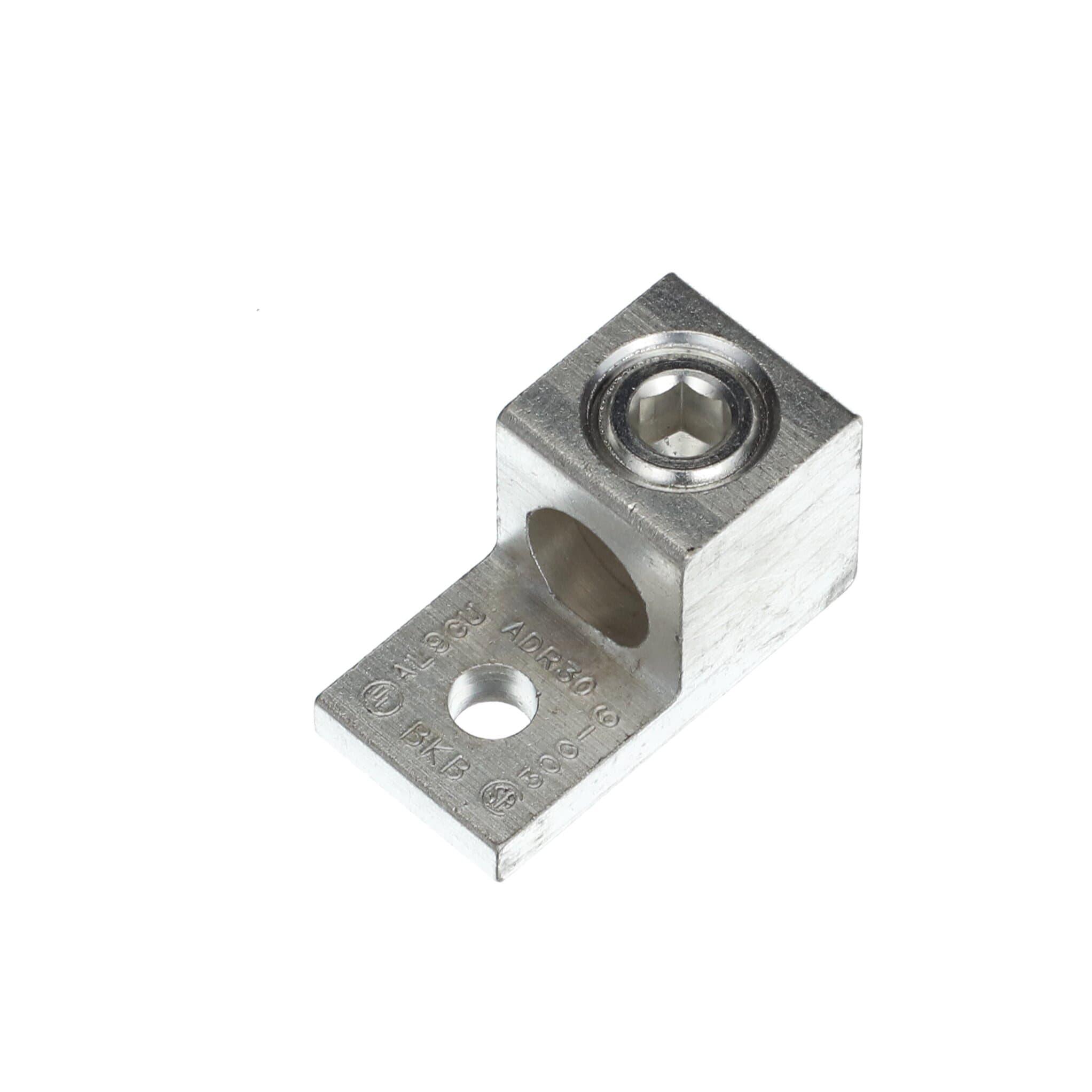

Blackburn® ADR30
Blackburn® ADR30 Type ADR-ALCUL Dual-Rated Mechanical Lugs, 6 AWG to 300 kcmil Conductor Aluminum/Stranded Copper Conductor, 5/16 in Stud, 1 Bolt Holes
- Manufacturer Name: ABB
- MPN: ADR30
- Brand Name: Blackburn®
- UPC: 783786610167
- FEPN: ADR30 TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
Blackburn®, ADR30, Mechanical Lugs, Type ADR-ALCUL Dual-Rated, Aluminum/Stranded Copper Conductor, 6 AWG to 300 kcmil Conductor, 5/16 in Stud, 1 Bolt Holes, 1 in L x 1 in W x 1/4 in THK Tongue, Straight Tongue, 600 V AC, Specifications: 1-Conductor, Socket Screw, Tin Plated, 2 in L x 1 in W x 1-1/8 in H Dimensions
| Dimensions | : | 2 in L x 1 in W x 1-1/8 in H |
| Finish | : | Tin Plated |
| Specifications | : | 1-Conductor, Socket Screw |
| Tongue Size | : | 1 in L x 1 in W x 1/4 in THK |
| Tongue Type | : | Straight |
| Type | : | Type ADR-ALCUL Dual-Rated |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 6 AWG to 300 kcmil |
| Conductor Type | : | Aluminum/Stranded Copper |
| Stud Size | : | 5/16 in |
| Number of Bolt Holes | : | 1 |
| Material | : | Aluminum |
- Easy installation no special tools required
- Tin plated for low contact resistance
- Extra aluminum lug
- 5/16 in socket screw on sizes 250 through 350 kcmil
- 1 stud of 5/16 in
