Specially designed for easy installation, EATON BR 1 in load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

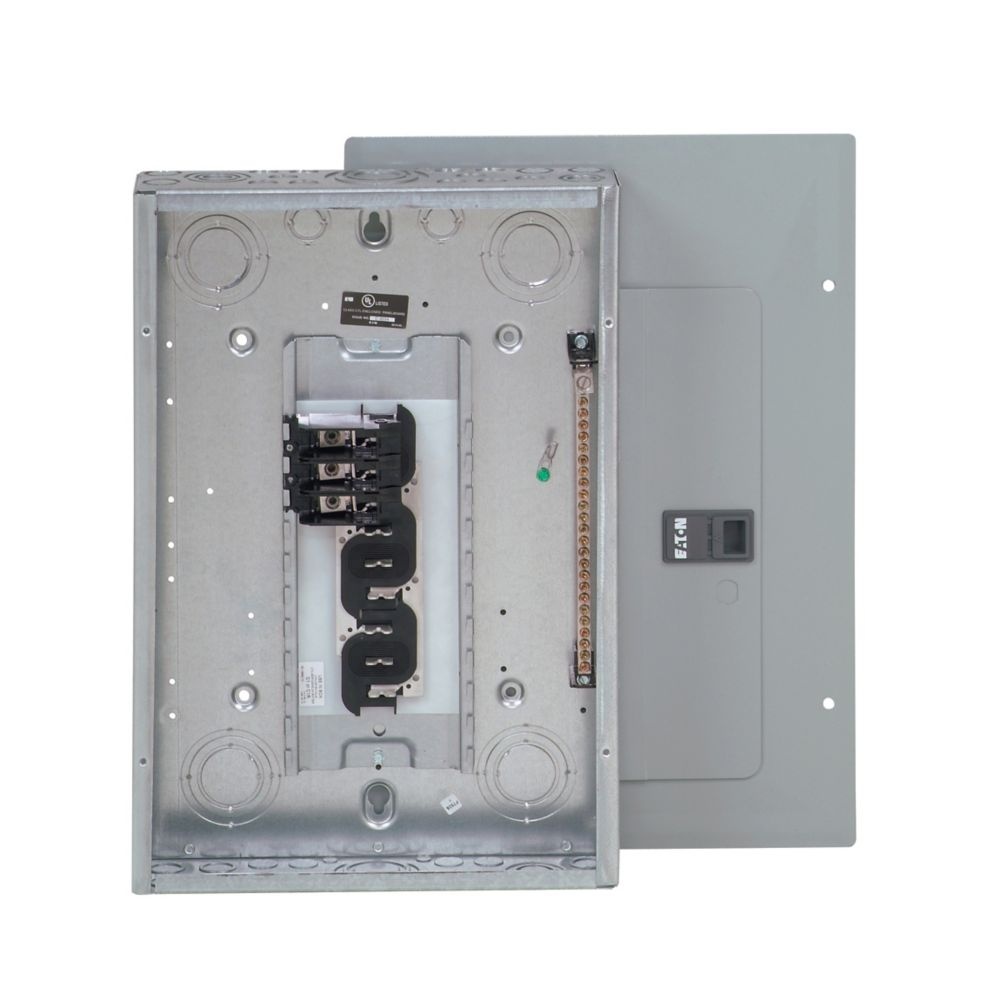

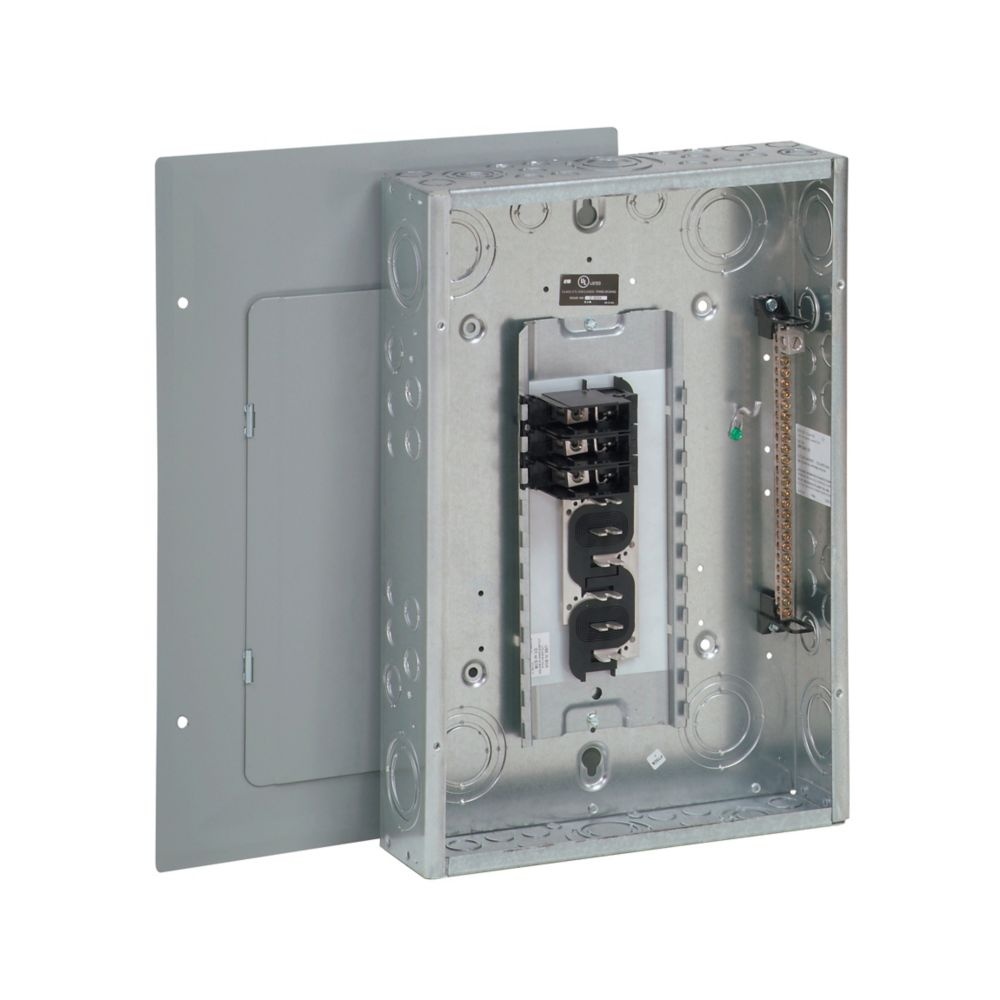

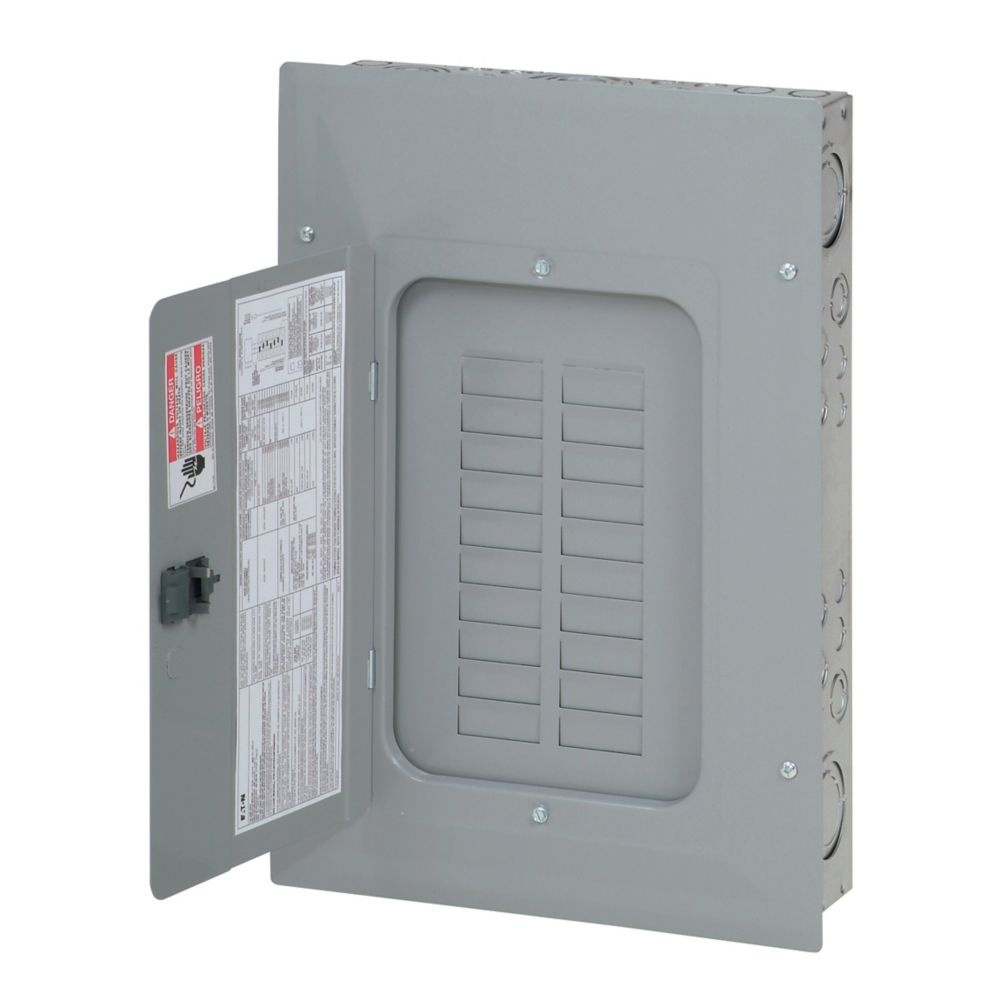

EATON Main Lug Loadcenter, 3-Phase Metallic, 120/208Y/240 VAC, 125 A, 24 Pole, 10 kA Interrupt, 24 Circuits, BR Breaker, 4-Wire Wiring Configuration, 12 Spaces, 6 to 2/0 AWG Wire, Flush Mount, NEMA 1, NEMA C1 Enclosure Box, 3.88 in L x 14.31 in W x 21 in H
| Breaker Type | : | BR |
| Dimensions | : | 3.88 in L x 14.31 in W x 21 in H |
| Enclosure Box Size | : | NEMA C1 |
| Enclosure Type | : | NEMA 1 |
| Mounting Type | : | Flush |
| Number of Circuits | : | 24 |
| Number of Spaces | : | 12 |
| Type | : | 3-Phase Metallic |
| Wire Size | : | 6 to 2/0 AWG |
| Wiring Configuration | : | 4-Wire |
| Voltage Rating | : | 120/208Y/240 VAC |
| Amperage Rating | : | 125 A |
| Number of Poles | : | 24 |
| Interrupt Rating | : | 10 kA |
- Flexible neutral design
- Tangential main knockout
- Single key hole mounting
- Factory pre-attached neutral bonding strap
- Bottom or top feed location
- Straight in wiring saves labor and material
- Easily removable lugs and can be installed in any location on the neutral bar
- Drywall marking on enclosure indicates proper mounting depth for flush applications
- Steel backpan provides solid and reliable breaker mounting single-piece design for stability and durability
- Advanced electronics effectively reduce nuisance tripping
- For use with type BR 1 in breakers
- Indoor enclosure
- Copper aluminum wire at 60 to 75 deg C for main lugs
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- No feed through lugs
- Combination mounting
Specification Sheet
