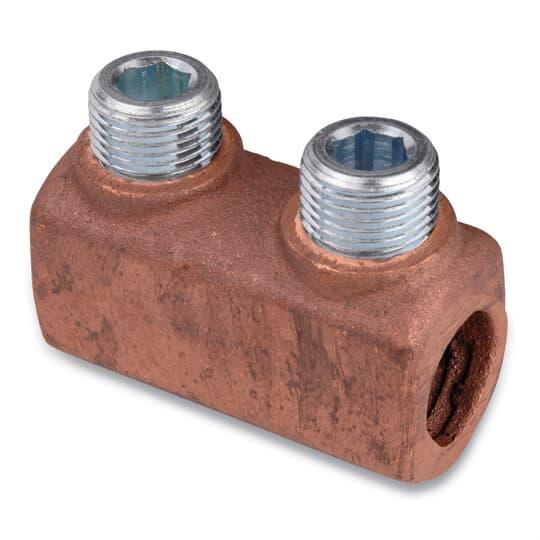

Blackburn® 32509
Blackburn® 32509 2-Way Compression Connector, 1 AWG Solid to 2/0 AWG Stranded Solid Copper Conductor, 1-7/8 in L, Copper
- Manufacturer Name: ABB
- MPN: 32509
- Brand Name: Blackburn®
- UPC: 786210325095
- FEPN: 32509 TB
- Min Order Qty: 1
- Quantity Interval: 5
-
Inventory Availability
-
Retail Price:
Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.
Blackburn® Compression Connector, 2-Way, Solid Copper Conductor, 1 AWG Solid to 2/0 AWG Stranded Conductor, 600 V AC, Screw Connection, 1-7/8 in Length, Copper, 3/4 in W x 1-1/32 in H Dimensions
| Connection Type | : | Screw |
| Dimensions | : | 3/4 in W x 1-1/32 in H |
| Type | : | 2-Way |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 1 AWG Solid to 2/0 AWG Stranded |
| Conductor Type | : | Solid Copper |
| Length | : | 1-7/8 in |
| Material | : | Copper |
- Easy installation
- High conductivity
- Cables held by saddle and tightened by screws
- Wide cable range
- Built-in lock washer
Specification Sheet
