The CurrentWatch EGF series from eaton electrical sector is a family of ground fault (earth leakage) sensors. Ground fault sensors help protect people, products and processes from damage by ground fault conditions by monitoring all current carrying conductors in grounded 1 and 3-phases delta or Wye systems. The EGF series with solid state outputs offers the benefit of reliable, long lasting solid state switches. Solid state design provides unlimited switch operating life, superior resistance to shock and vibration, zero OFF-state leakage, high switch speeds and high input output isolation. The EGF series with mechanical relay outputs is available in solid core housings with a choice of no or NC SPST latching relays and a SPDT form C relay with auto-reset.

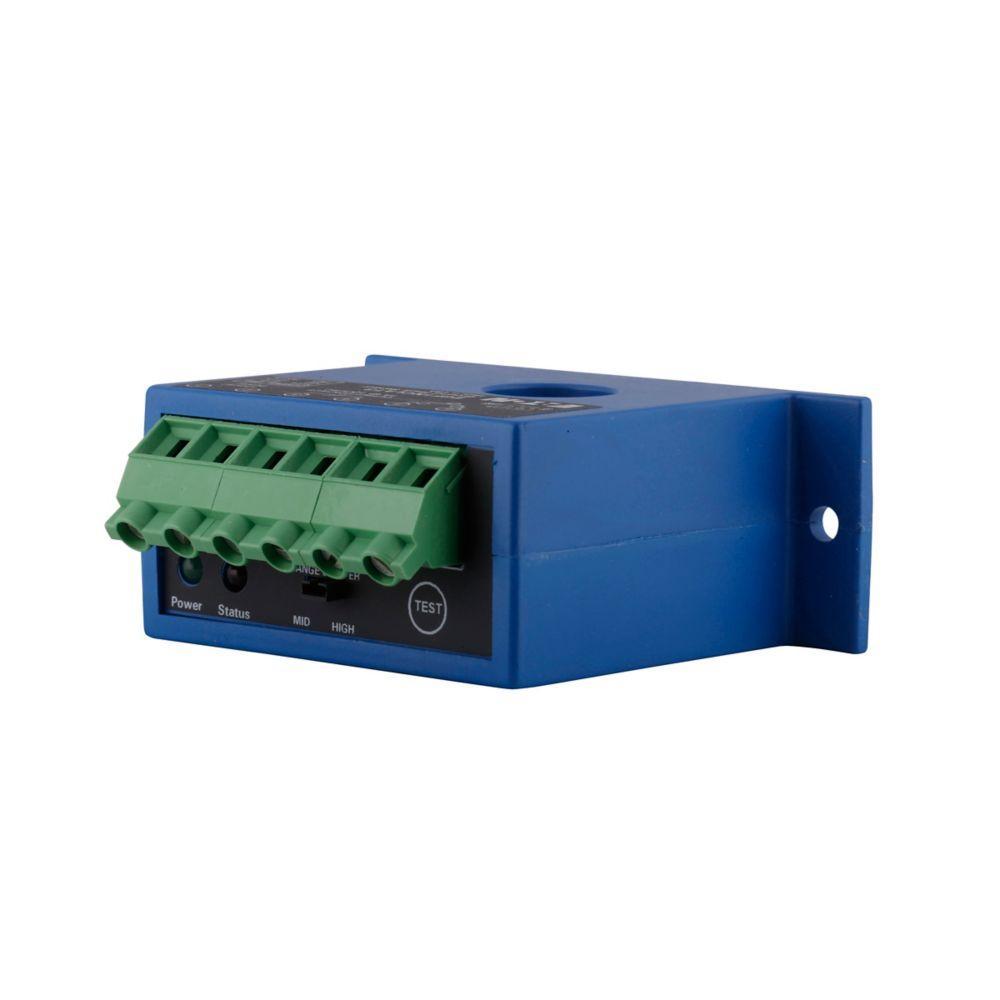

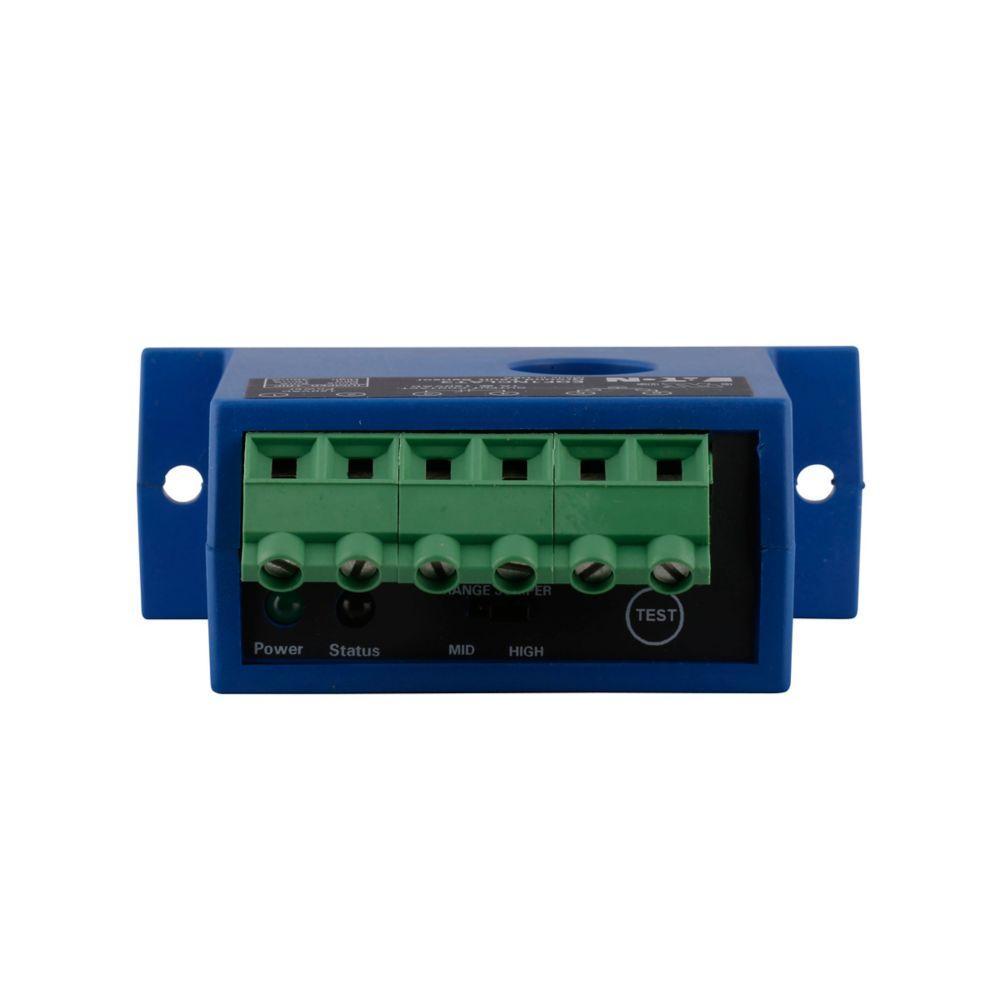

EATON CurrentWatch™ Current Switch, Solid Core Ground Fault Sensor, Series: EGF, 15 to 200 ms Response, Mechanical Relay/NC SPST Output, 120 VAC, 1 A, 50/400 Hz Frequency, Screw Terminal Connection, 1.5 in L x 2.5 in W x 3.88 in H Size, -4 to 122 deg F Operating, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity

• Broad range of options to meet application needs no or NC, solid state or mechanical relays, normally energized or normally de-energized contacts
• Setpoint options maximize ease of use and application flexibility field selectable 5, 10 or 30 mA setpoints on the EGF "triset" models make user adjustments fast, sure and convenient
• Compatible with standard equipment application on single and three phase systems, ideal for use with shunt trip breakers, and magnetically isolated from monitored circuit and control power

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_EGF1NCLAT3_Specification_Sheet.pdf
• Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ECSNOFSC_User_Manual.pdf
