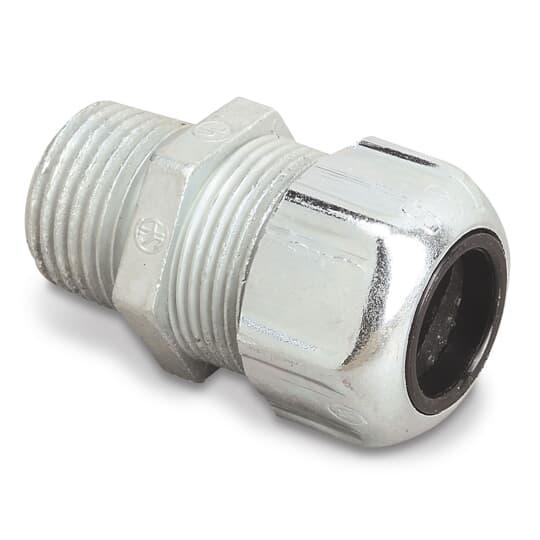

T&B® 2116-TB
T&B® 2116-TB Underground Feeder Service Entrance Cable Connector, 1/2 in Knockout, 0.235 x 0.5 in Clamp Opening, Die Cast Zinc
- Manufacturer Name: ABB
- MPN: 2116-TB
- Brand Name: T&B®
- UPC: 786210021164
- FEPN: 2116-TB TB
- Min Order Qty: 1
- Quantity Interval: 25
-
Inventory Availability
-
Retail Price:
T&B® Service Entrance Cable Connector, Underground Feeder, 1/2 in Knockout, 0.235 x 0.5 in Clamp Opening, For Use With: Underground Liquidtight Feeder Cable Fitting, 1/2 in Hub, 5/8 in Thread, Die Cast Zinc, Metallic, 1-11/16 in L x 1 in W
| Dimensions | : | 1-11/16 in L x 1 in W |
| Finish | : | Metallic |
| Specifications | : | 1/2 in Hub, 5/8 in Thread |
| Suitable For Use With | : | Underground Liquidtight Feeder Cable Fitting |
| Type | : | Underground Feeder |
| Knockout Size | : | 1/2 in |
| Clamp Opening | : | 0.235 x 0.5 in |
| Material | : | Die Cast Zinc |
- Grips cable the full length of the bushing providing adequate strain relief without damaging outer jacket
- Oil and water resistant neoprene bushing is especially designed for sealing around underground feeder cable
- Stainless steel retaining ring provides a bearing surface for the gland nut and eliminates cable twist
- Ribbed gland nut is strong and easily tightened with a wrench to make a connection of high strength
- 0.06 in min to 0.235 in max and 0.35 in min to 0.5 in max opening
- 1-1/8 in maximum gland corners
- 1-1/8 in maximum body corners
Specification Sheet
