Bussmann 16528-3

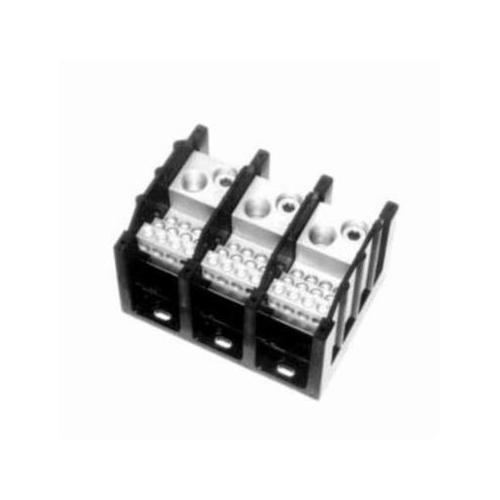

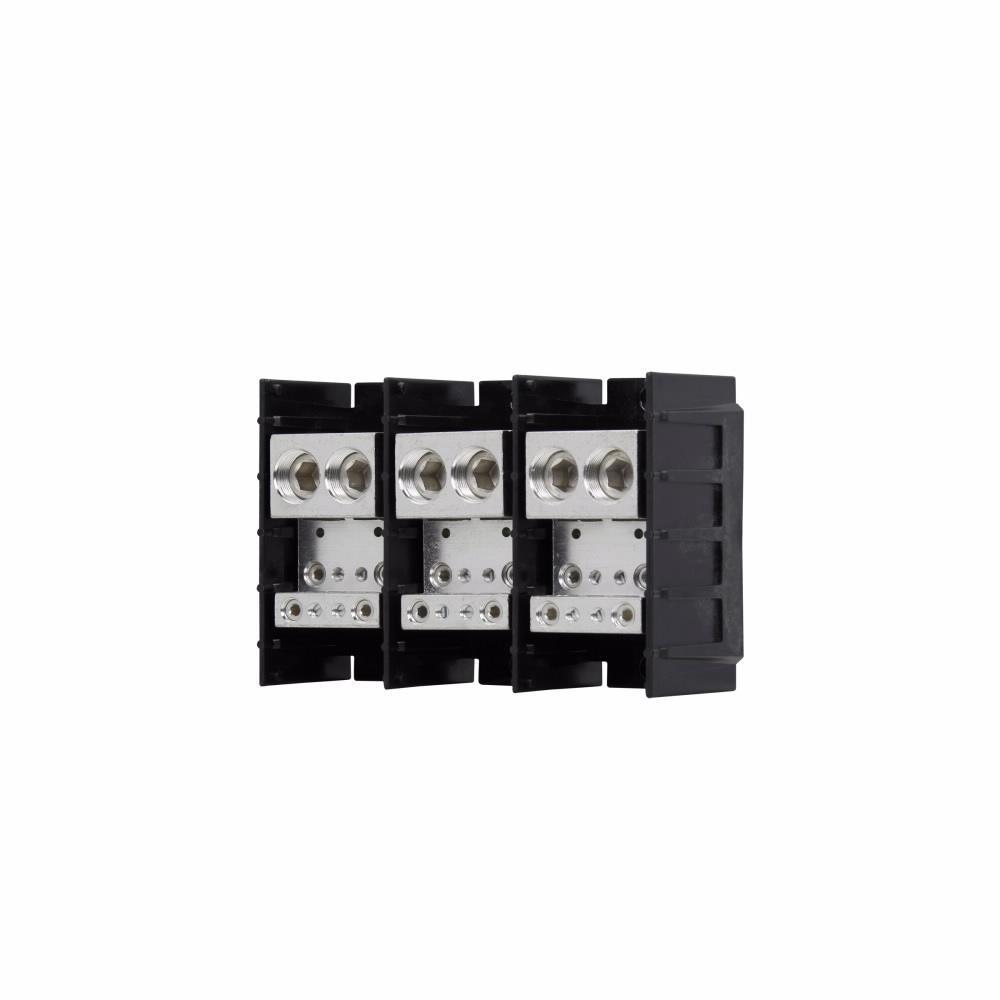

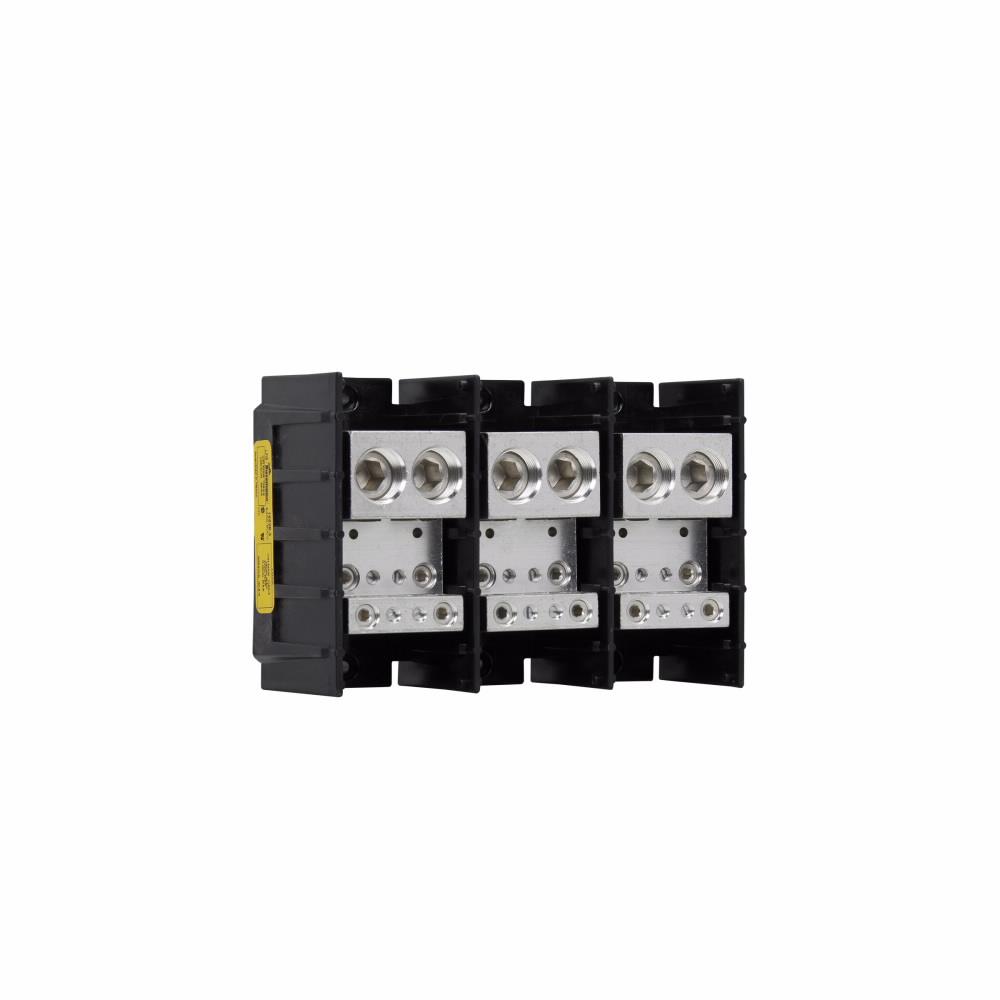

Bussmann 16528-3 Standard Power Distribution Block, 600 VAC/VDC, 840 A, 3 Poles, 2 AWG to 600 kcmil Cu/Al Line, 6 to 3/0 AWG, 14 to 4 AWG Cu/Al Load Wire, Thermoplastic
- Manufacturer Name: Eaton
- MPN: 16528-3
- Brand Name: Bussmann
- UPC: 051712148979
- FEPN: 16528-3 BU
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Bussmann Series UL Recognized power distribution blocks offer a variety of line side and load side port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1, 2 and 3-pole versions and have optional covers to enhance safety (order covers separately).
Bussmann Power Distribution Block, Standard, Series: 165, 600 VAC/VDC, 840 A, 3 Pole, 2 Primary Connections/Pole, 4 Secondary Connection/Pole, 2 AWG to 600 kcmil Cu/Al Line, 6 to 3/0 AWG, 14 to 4 AWG Cu/Al Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 8.48 in L x 5.5 in W x 2.93 in H
| Color | : | Black |
| Dimensions | : | 8.48 in L x 5.5 in W x 2.93 in H |
| Primary Connections/Pole | : | 2 |
| Secondary Connection/Pole | : | 4 |
| Series | : | 165 |
| Short Circuit Current Rating | : | 10 kA |
| Type | : | Standard |
| Voltage Rating | : | 600 VAC/VDC |
| Amperage Rating | : | 840 A |
| Number of Poles | : | 3 |
| Wire Size | : | 2 AWG to 600 kcmil Cu/Al Line, 6 to 3/0 AWG, 14 to 4 AWG Cu/Al Load |
| Material | : | Thermoplastic |
- 2 AWG to 600 kcmil copper/aluminum line, 6 to 3/0 AWG, 14 to 4 AWG copper/aluminum load connection
