Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

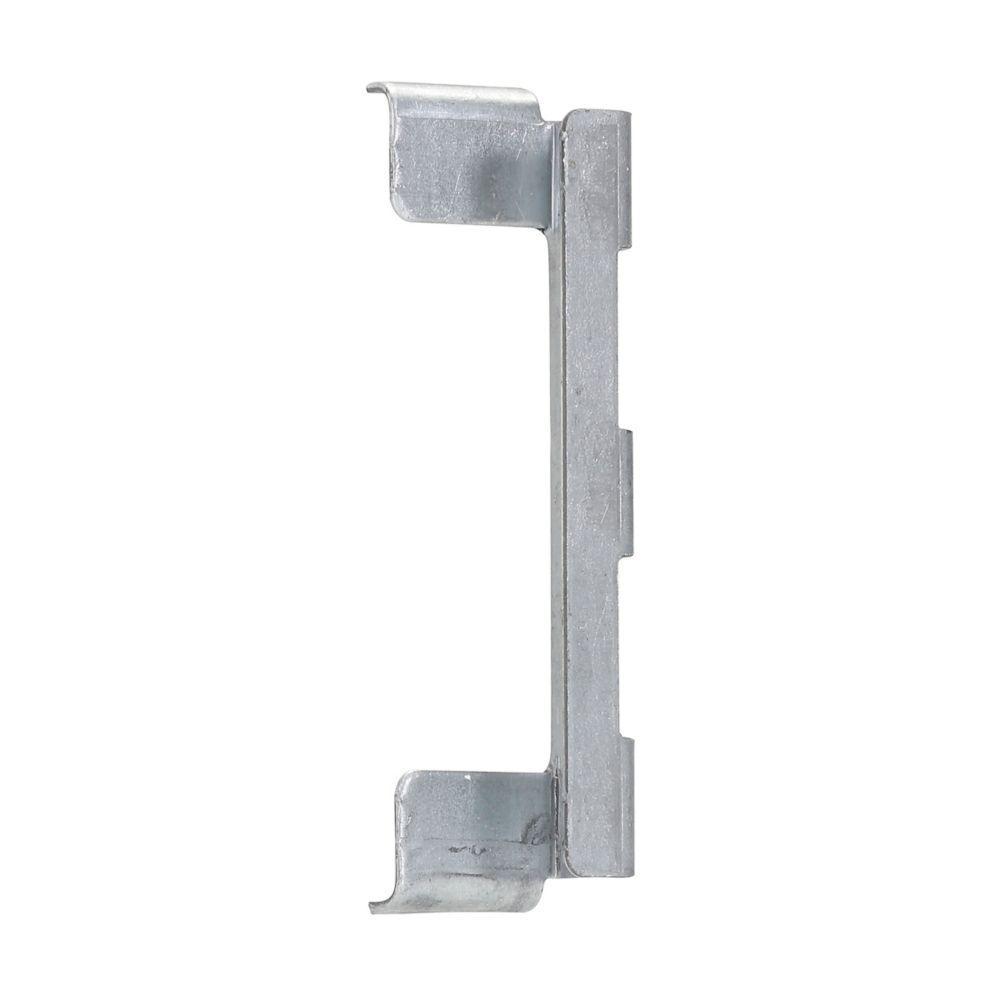

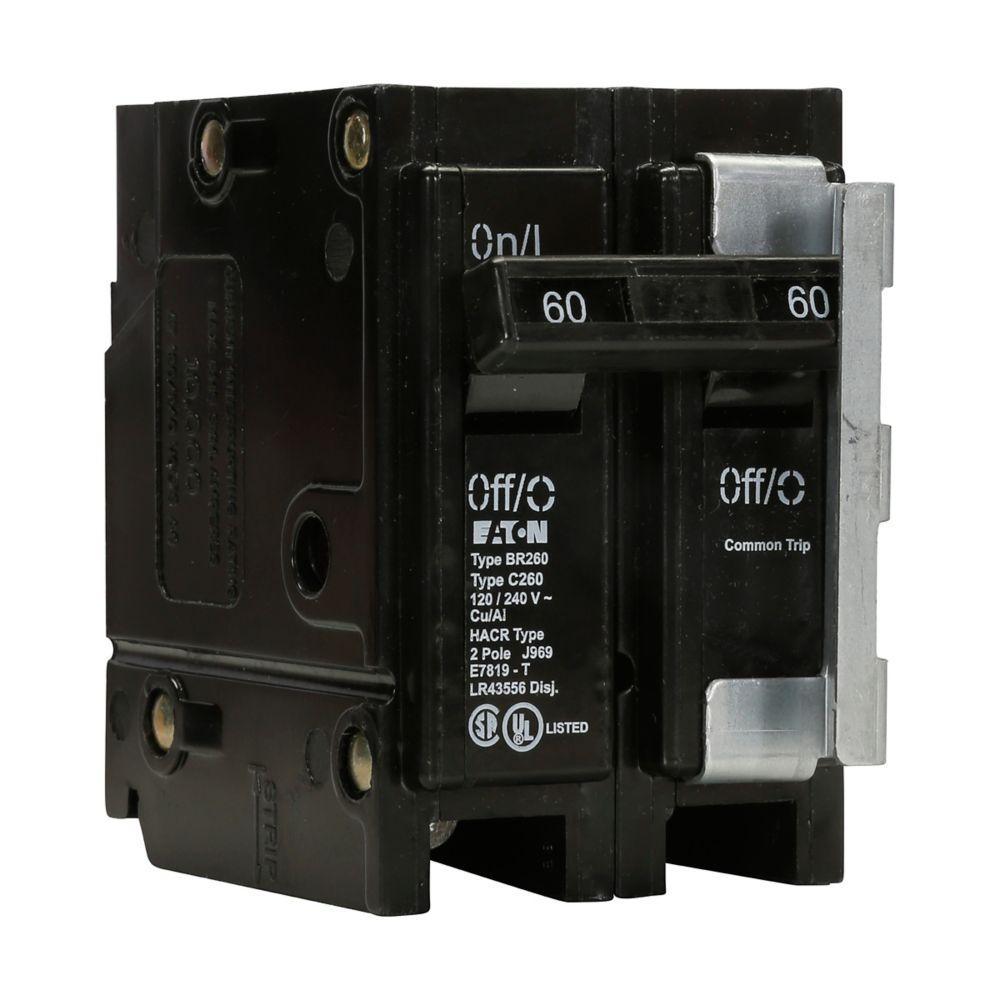

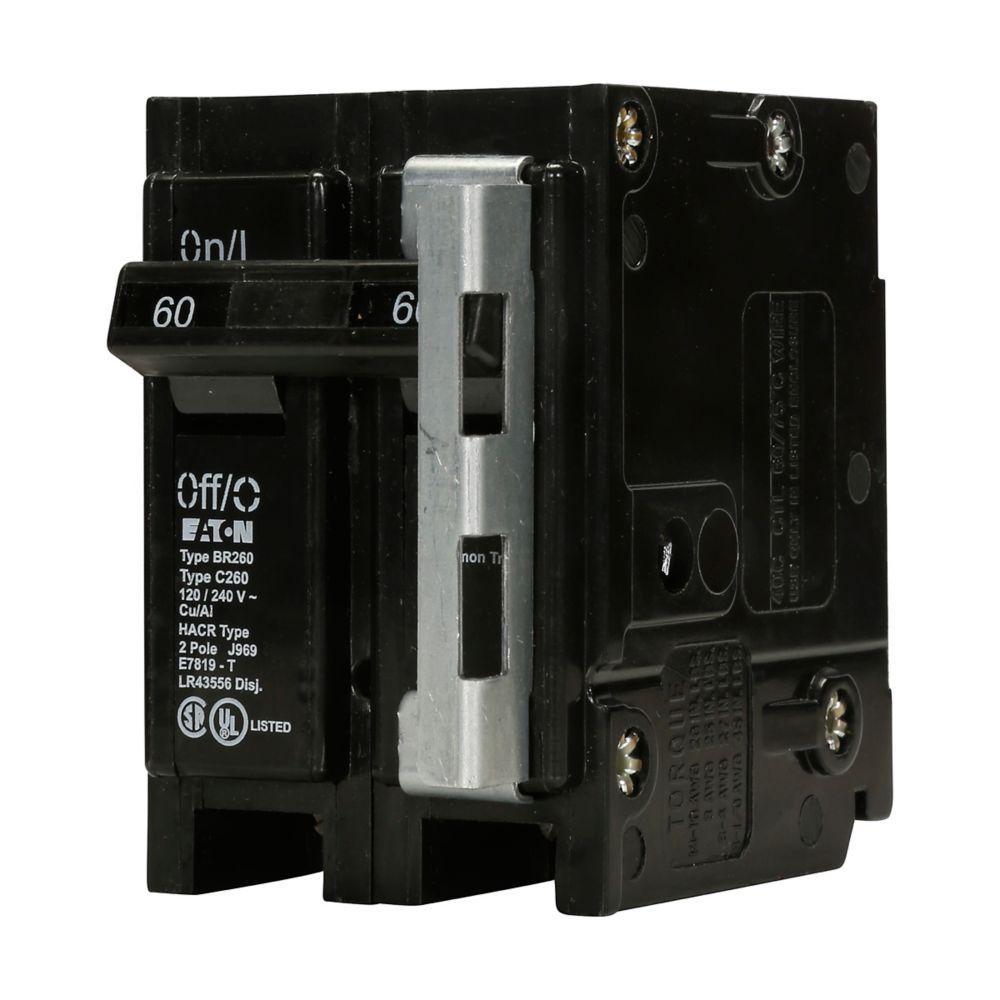

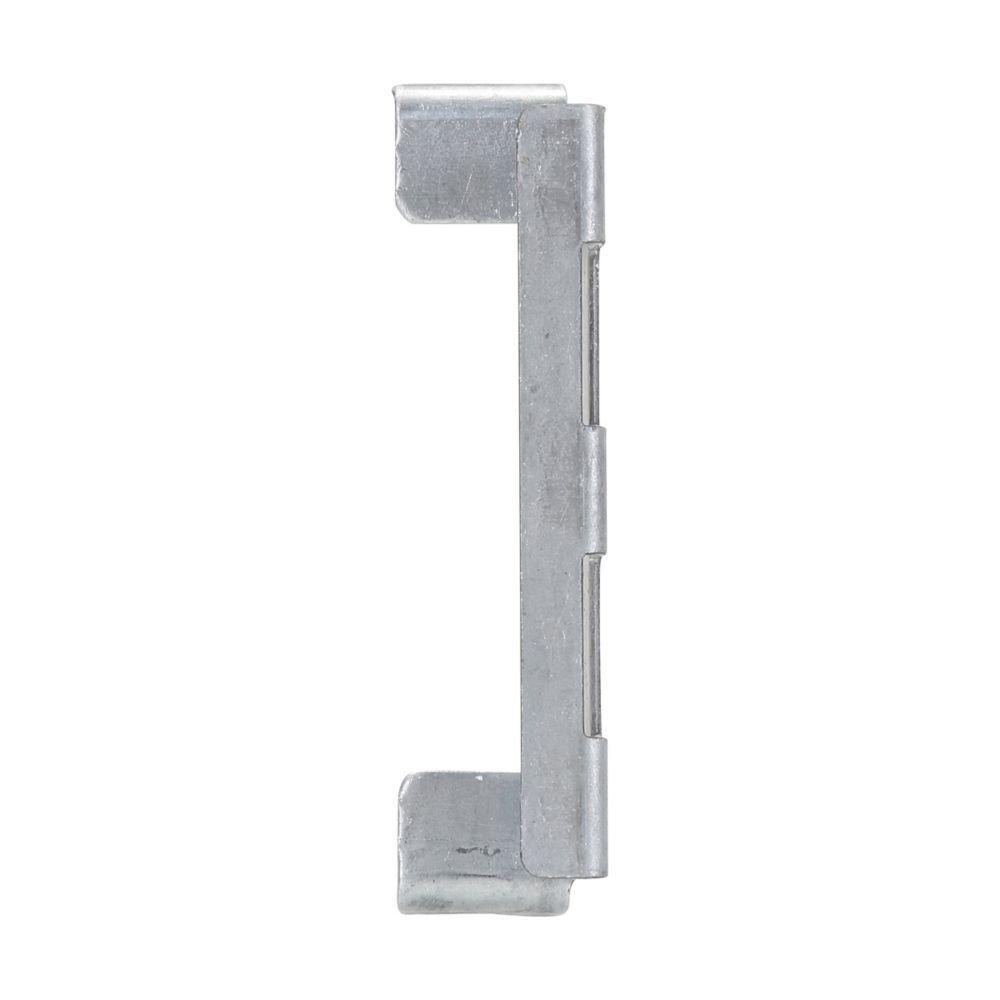

EATON Handle Lockoff, 1/2/3 Pole, For Use With: 1, 2 or 3-Pole BR and BD Circuit Breaker, 2 in L x 1/2 in W x 1/2 in H Dimensions
| Dimensions | : | 2 in L x 1/2 in W x 1/2 in H |
| Number of Poles | : | 1/2/3 |
| Suitable For Use With | : | 1, 2 or 3-Pole BR and BD Circuit Breaker |
- Suitable for 3-pole type BR circuit breakers in S3100 and 3100R loadcenters only
Instruction/Installation Manual
