Blackburn® compression, mechanical and exothermic connectors and accessories represent the most comprehensive set of products in the industry for the creation of a safe, code compliant and reliable grounding system.

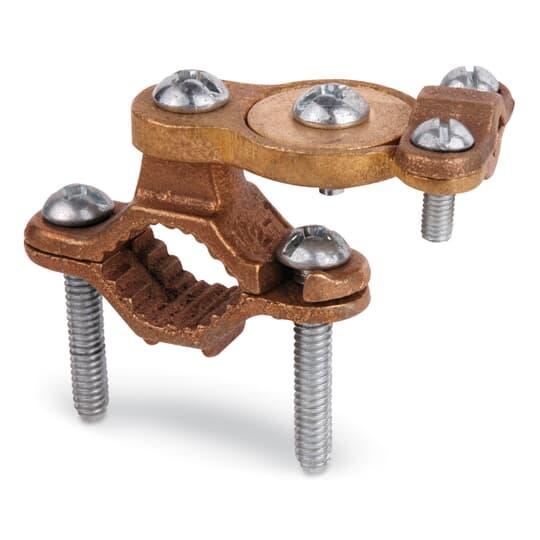

Blackburn® E-Z Ground® Grounding Clamp, 1/2 to 1 in Pipe, Solid Conductor, 10 to 6 AWG Conductor, Cast Bronze, 2-11/32 in W x 25/32 in D x 2-3/4 in H
| Conductor Type | : | Solid |
| Dimensions | : | 2-11/32 in W x 25/32 in D x 2-3/4 in H |
| Pipe Size | : | 1/2 to 1 in |
| Conductor Size | : | 10 to 6 AWG |
| Material | : | Cast Bronze |
- Special pressure bar grips armor or outer cable insulation to reduce chance of grounding conductor being pulled out
- Clamping portion similar to standard "J" clamp
- Furnished with zinc plated screws
