Panduit® LCAX250-12-X
Send Print
  1. pin-int

Panduit® LCAX250-12-X

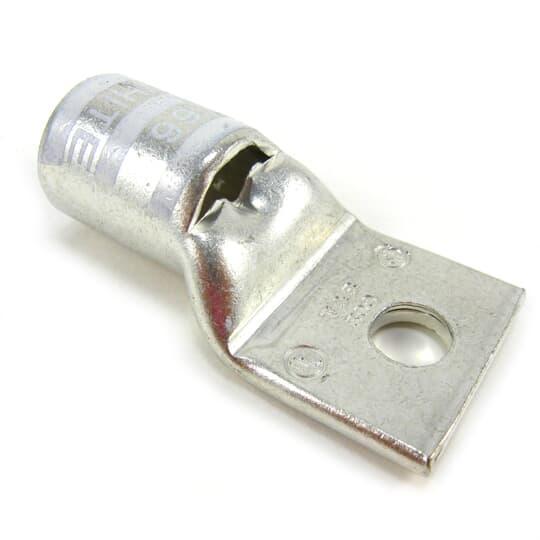

Panduit® Pan-Lug™ LCAX250-12-X 1-Hole Compression Lug Connector With Inspection Window, 250 kcmil, 262.6 kcmil Flexible Copper Conductor, Die Code: P62, 1/2 in Stud, Copper

  • Manufacturer Name: Panduit
  • MPN: LCAX250-12-X
  • Brand Name: Panduit®
  • UPC: 074983435739
  • FEPN: LCAX250-12-X PC
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Panduit® Pan-Lug™ Compression Lug Connector, 1-Hole, Series: LCAX, Flexible Copper Conductor, 250 kcmil , 262.6 kcmil Conductor, Die Code: P62, 35 kV, 1/2 in Stud, Straight Tongue, 1.28 in W x 0.17 in THK Tongue, 2.68 in Overall Length, Standard/Inspection Window Barrel, 0.7 in ID x 0.88 in OD x 1.03 in L Barrel, Specifications: 1-1/16 in L Wire Strip, Tin Plated, 90 deg C, 1-1/16 in Mounting Hole, Copper, Yellow

Barrel Size       :      0.7 in ID x 0.88 in OD x 1.03 in L
Barrel Type       :      Standard/Inspection Window
Color       :      Yellow
Mounting Hole Size       :      1-1/16 in
Overall Length       :      2.68 in
Series       :      LCAX
Specifications       :      1-1/16 in L Wire Strip, Tin Plated
Temperature Rating       :      90 deg C
Tongue Size       :      1.28 in W x 0.17 in THK
Tongue Type       :      Straight
Type       :      1-Hole
Voltage Rating       :      35 kV
Conductor Size       :      250 kcmil , 262.6 kcmil
Conductor Type       :      Flexible Copper
Die Code       :      P62
Stud Size       :      1/2 in
Material       :      Copper
  • Color-coded bands for proper die selection and crimp placement
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Tin-plated to inhibit corrosion
  • An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
  • Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
  • pdfFull Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCAX250-12-X_Full_Engineering_Drawing.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCAX4-10-L_Technical_Bulletin.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCDX750-38D-3_Installation_Manual.pdf
  • videoVIDEO LINK https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4
