Panduit® LCA2-12-Q
Panduit® Pan-Lug™ LCA2-12-Q 1-Hole Compression Connector Lug, 2 AWG Stranded Copper Conductor, Die Code: P33, 1/2 in Stud, Tin Plated Copper
- Manufacturer Name: Panduit
- MPN: LCA2-12-Q
- Brand Name: Panduit®
- UPC: 074983900183
- FEPN: LCA2-12-Q PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Lug™ Compression Connector Lug, 1-Hole, Series: LCA, Stranded Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 1/2 in Stud, Straight Tongue, 0.75 in W x 0.08 in THK Tongue, 2.21 in Overall Length, Standard Barrel, 0.31 in ID x 0.42 in OD x 0.88 in L Barrel, 15/16 in L Wire Strip, 90 deg C, 15/16 in Mounting Hole, Tin Plated Copper, Brown
| Barrel Size | : | 0.31 in ID x 0.42 in OD x 0.88 in L |
| Barrel Type | : | Standard/Inspection Window |
| Color | : | Brown |
| Mounting Hole Size | : | 15/16 in |
| Overall Length | : | 2.21 in |
| Series | : | LCA |
| Specifications | : | 15/16 in L Wire Strip |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 0.75 in W x 0.08 in THK |
| Tongue Type | : | Straight |
| Type | : | 1-Hole |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 2 AWG |
| Conductor Type | : | Stranded Copper |
| Die Code | : | P33 |
| Stud Size | : | 1/2 in |
| Material | : | Tin Plated Copper |
- Straight tongue angle
- 15/16 in L wire strip
- An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion

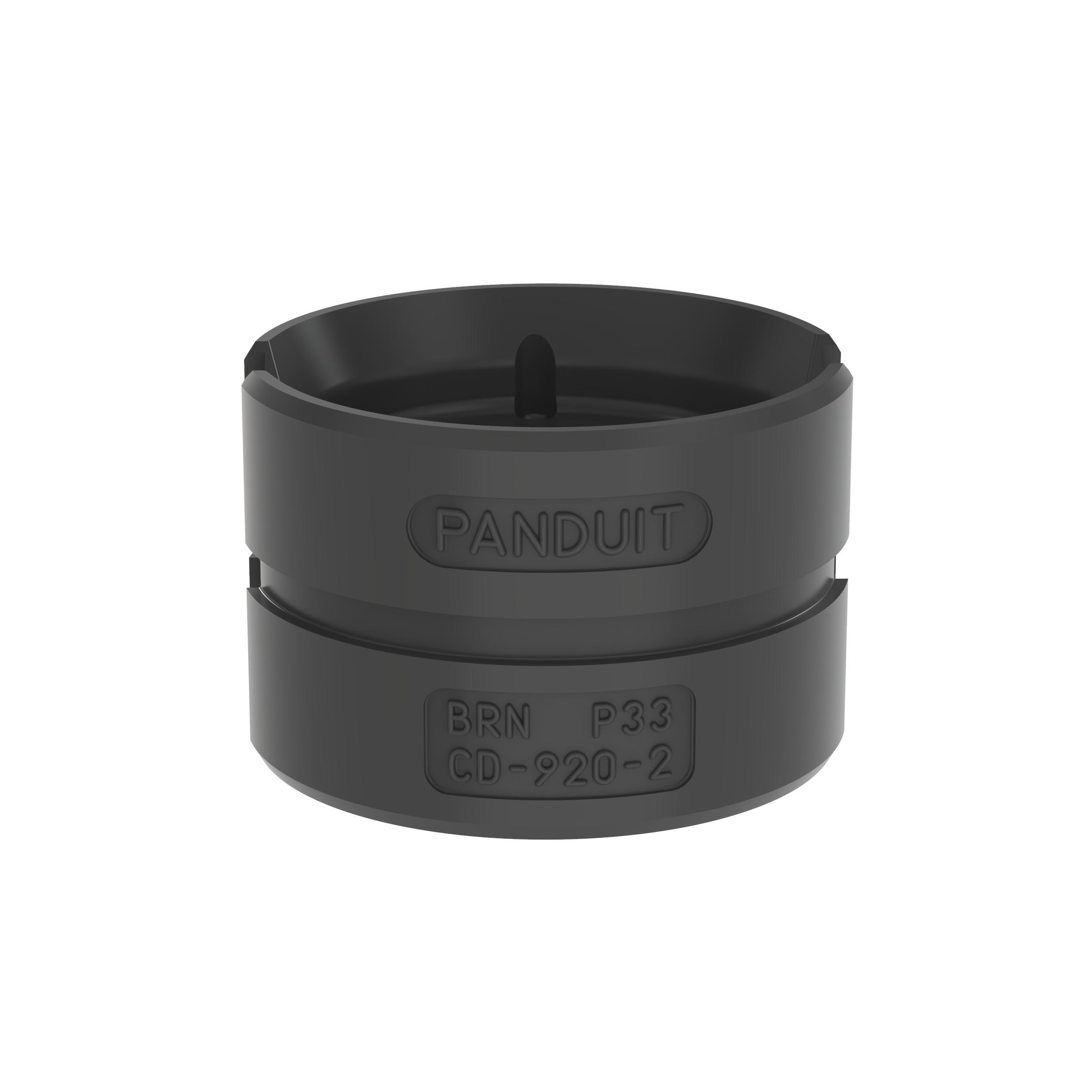

- Color-coded barrelS marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with stranded copper conductor
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
