Wiring Device-Kellems HBL2725SW

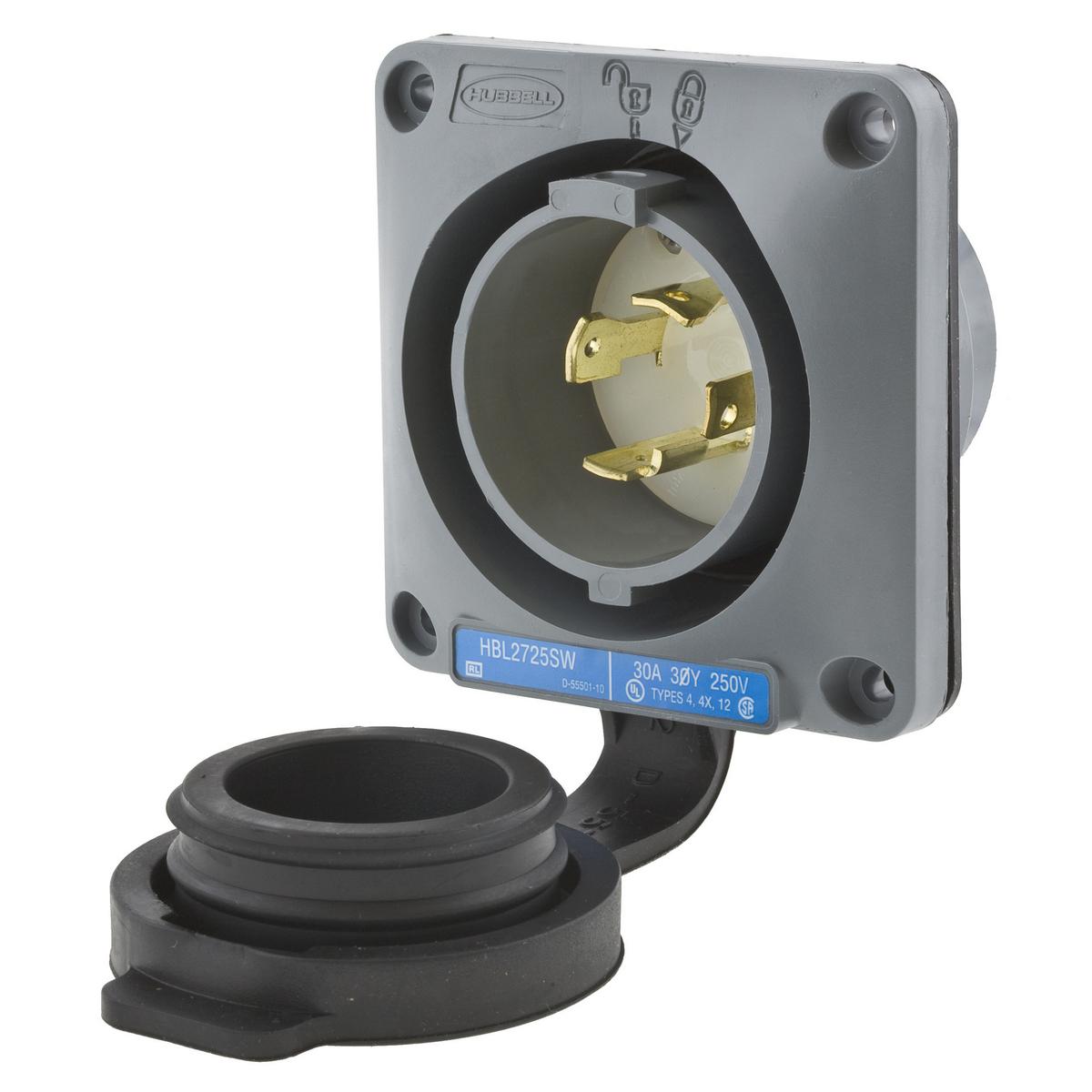

Wiring Device-Kellems HBL2725SW HBL® 3-Phase Extra Heavy Duty Grounding Screw Mount Watertight Locking Flanged Inlet, 250 VAC, 30 A, 3 Poles, 4 Wires, Gray
- Manufacturer Name: Hubbell
- MPN: HBL2725SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231884
- FEPN: HBL2725SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL2725SW, Locking Flanged Inlet, 3-Phase Extra Heavy Duty Grounding Screw Mount Watertight, Series: HBL®, 250 VAC, 30 A, 3 hp, 3 Pole, 4 Wires, L15-30P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray, 3.75 x 3.75 x 2.44 in Dimensions
| Dimensions | : | 3.75 x 3.75 x 2.44 in |
| Enclosure | : | NEMA 4/4X/12/IP66 |
| Grade | : | Industrial |
| Horsepower | : | 3 hp |
| Material | : | Thermoplastic |
| NEMA Rating | : | L15-30P |
| Series | : | HBL® |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 3-Phase Extra Heavy Duty Grounding Screw Mount Watertight |
| Voltage Rating | : | 250 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Gray |
- #10-32 brass (white finish on neutral screw when used) multiple drive terminal screw
- Natural white nylon body contact carrier
- Stainless steel 302/304 multi-drive mounting screws
- Molded-in or stamped on ratings
- Permanently ink marked on product catalog number
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 Percent of rated current at a power factor of 75 Percent
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- 30 A 10 AWG wire size
- Neoprene EPDM blend closure cap and strap
- Closure cap is included for environmental seal when device is not in use
- 10 AWG terminal accommodation
- Clear polycarbonate terminal retainer
- 0.08 in (2) steel nickel plated terminal clamp
- Catalog number and color-coded voltage rating are easily visible even when in use
