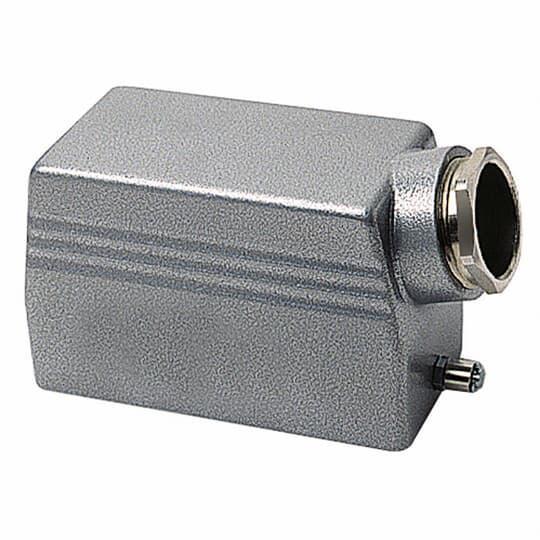

Pos-E-Kon® SH606MV
Pos-E-Kon® SH606MV B Series Single Post Hood With Gasket, Side 1 x 1/2 in NPT Entry, Standard Mount, Die Cast Aluminum
- Manufacturer Name: ABB
- MPN: SH606MV
- Brand Name: Pos-E-Kon®
- UPC: 786209987112
- FEPN: SH606MV TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Pos-E-Kon® DIN standard rectangular pin and sleeve connectors are modular for easy assembly at the customer site.
Pos-E-Kon® Single Post Hood, Series: B Series, Side Entry Position, 1 x 1/2 in NPT Entry, Standard Mounting, For Use With: B Series Connector, -40 to 257 deg F, Specifications: 10 A, 16 A, 35 A, 600 V AC, Die Cast Aluminum, Epoxy Powder Coated
| Finish | : | Epoxy Powder Coated |
| Series | : | B Series |
| Specifications | : | 10 A, 16 A, 35 A, 600 V AC |
| Suitable For Use With | : | B Series Connector |
| Temperature Rating | : | -40 to 257 deg F |
| Entry Position | : | Side |
| Entry Type | : | 1 x 1/2 in NPT |
| Mounting Type | : | Standard |
| Material | : | Die Cast Aluminum |
- 6-contacts with ground
- Side entry single post hood is made of die cast aluminum alloy that provides resistance to corrosion
- IP65 locked positions internal protection per DIN VDE 0470
- Hood is hard silver/gold plated and has epoxy powder coated finish EPDM seal gaskets that are chemical-resistant
- B6 single lock system 1 x PG13, 5-1/2 connection
Specification Sheet
