Blackburn® 3H

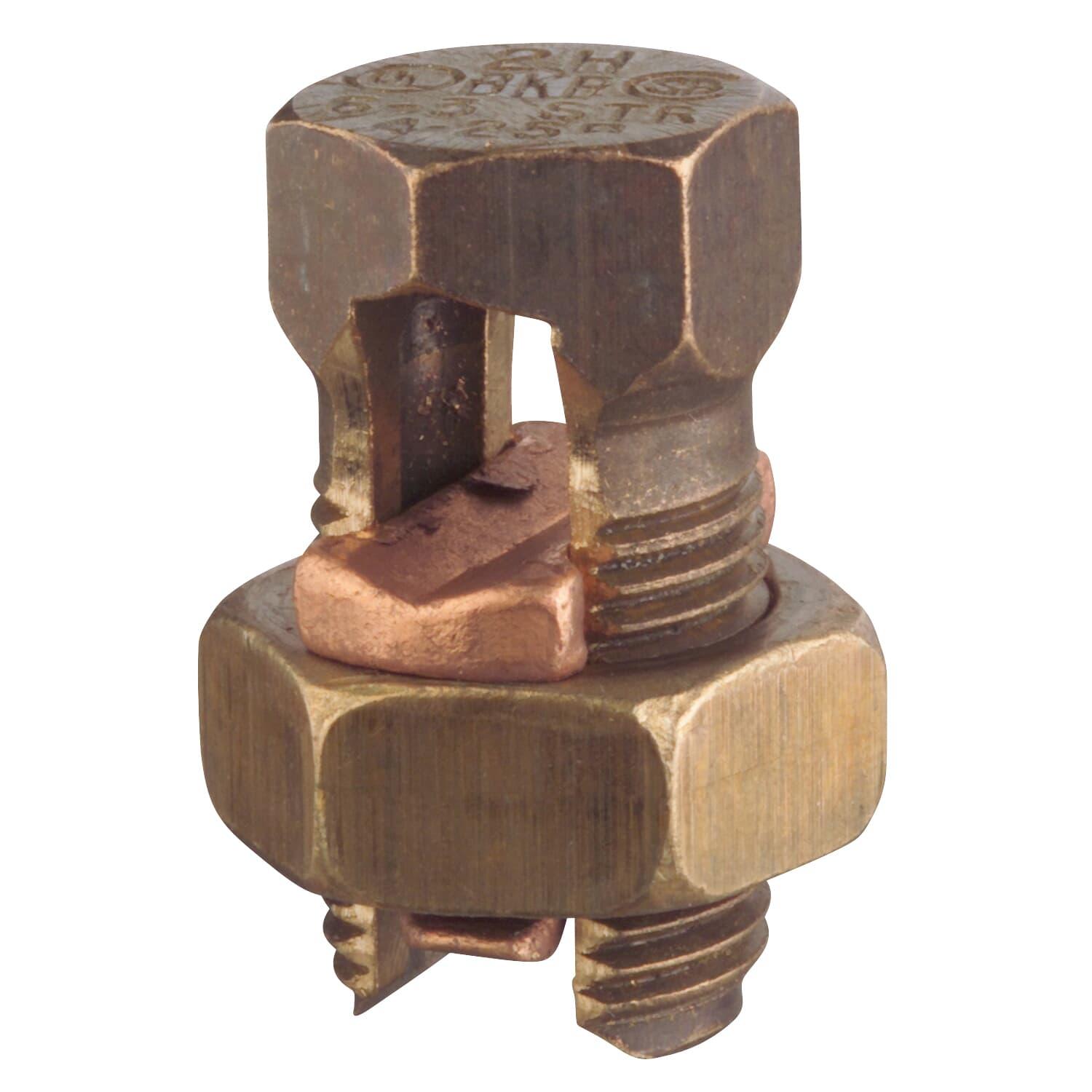

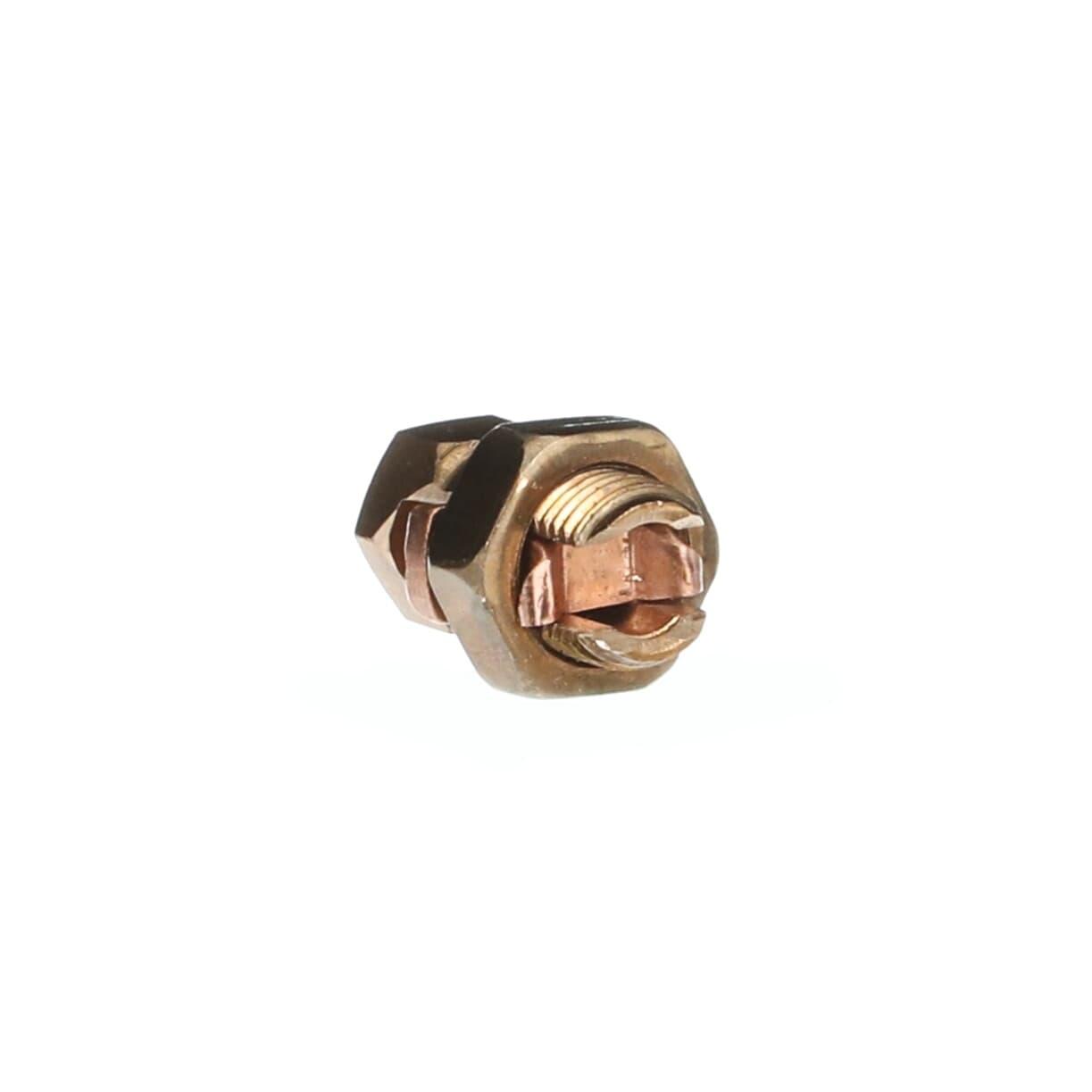

Blackburn® 3H Type H High Strength Split Bolt Connector, 8 to 3 AWG Solid Copper Conductor, 17/32 x 1-7/16 in Bolt, Bronze Alloy
- Manufacturer Name: ABB
- MPN: 3H
- Brand Name: Blackburn®
- UPC: 783786200085
- FEPN: 3H TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Blackburn® 3H Split Bolt Connector, Type H High Strength, Solid Copper Conductor, 8 to 3 AWG Conductor, 17/32 x 1-7/16 in Bolt, Specifications: 0.235 in Split, 23/32 in Hex Nut, Bronze Alloy, Metallic
| Color | : | Metallic |
| Specifications | : | 0.235 in Split, 23/32 in Hex Nut |
| Type | : | Type H High Strength |
| Conductor Size | : | 8 to 3 AWG |
| Conductor Type | : | Solid Copper |
| Bolt Size | : | 17/32 x 1-7/16 in |
| Material | : | Bronze Alloy |
- Bolt and nut of high-strength corrosion resistant bronze alloy
- Pressure bar is copper through 40H, copper alloy for 350 kcmil and above
- Bolt and nut of hex design up to 350 kcmil
- Split-bolt connector made of metallic bronze alloy for use on copper conductors
- 16 AWG stranded conductor range min tap with one max main
- 3 to 8 AWG solid conductor range for equal main and tap
- 100 Pieces/Pack
Specification Sheet
