Panduit® LCD500-12-6

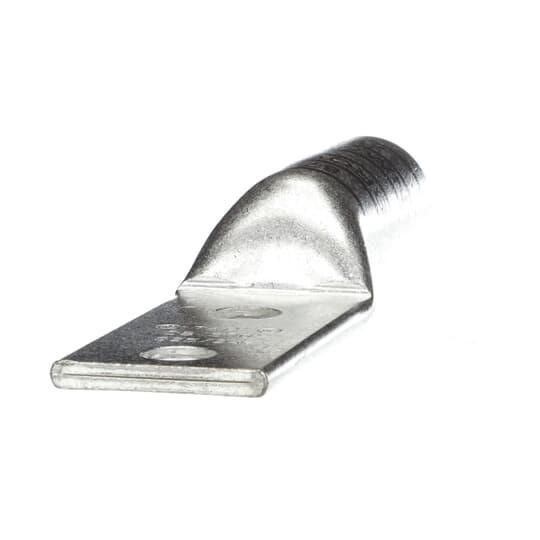

Panduit® Pan-Lug™ LCD500-12-6 2-Hole Compression Lug, 500 kcmil Code Copper Conductor, Die Code: P87, 1/2 in Stud, Copper
- Manufacturer Name: Panduit
- MPN: LCD500-12-6
- Brand Name: Panduit®
- UPC: 074983901067
- FEPN: LCD500-12-6 PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Lug™ Compression Lug, 2-Hole, Series: LCD, Code Copper Conductor, 500 kcmil Conductor, Die Code: P87, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 5.37 in Overall Length, Standard/Inspection Window Barrel, 0.84 in ID x 1.06 in OD x 1.75 in L Barrel, Specifications: 1-13/16 in L Wire Strip, 1-3/4 in Stud Hole Spacing, Tin Plated Finish, 90 deg C, 1.81 in Mounting Hole, Copper, Brown
| Barrel Size | : | 0.84 in ID x 1.06 in OD x 1.75 in L |
| Barrel Type | : | Standard/Inspection Window |
| Color | : | Brown |
| Mounting Hole Size | : | 1.81 in |
| Overall Length | : | 5.37 in |
| Series | : | LCD |
| Specifications | : | 1-13/16 in L Wire Strip, 1-3/4 in Stud Hole Spacing, Tin Plated Finish |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 1.54 in W x 0.22 in THK |
| Tongue Type | : | Standard/Straight |
| Type | : | 2-Hole |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 500 kcmil |
| Conductor Type | : | Code Copper |
| Die Code | : | P87 |
| Stud Size | : | 1/2 in |
| Material | : | Copper |
- Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
