Sta-Kon® RF4-38

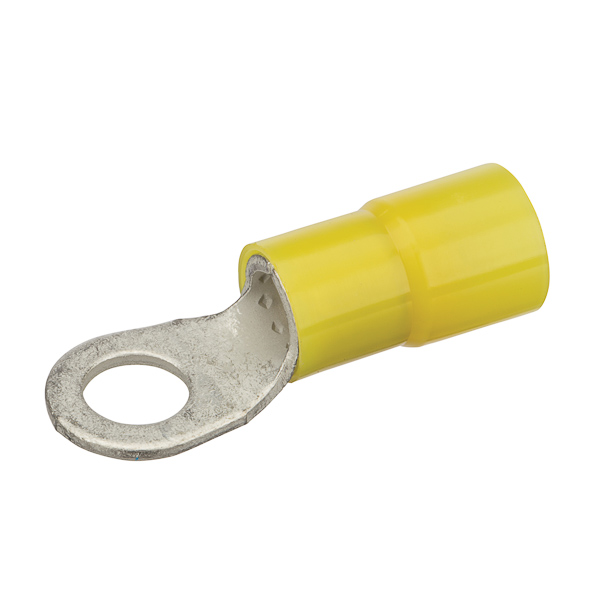

Sta-Kon® RF4-38 RF Series Insulated Ring Terminal, 4 AWG Conductor, 1.84 in L, Brazed/Overlapped Seam Barrel, Copper, Yellow
- Manufacturer Name: ABB
- MPN: RF4-38
- Brand Name: Sta-Kon®
- UPC: 786210878690
- FEPN: RF4-38 TB
- Min Order Qty: 1
- Quantity Interval: 15
-
Inventory Availability
-
Retail Price:
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Sta-Kon® Ring Terminal, Insulated, Series: RF Series, 4 AWG Conductor, 3/8 in Stud, 1.84 in Length, Brazed/Overlapped Seam Barrel, Large Ring Tongue, 0.62 in W x 0.04 in THK Tongue, 600 V AC, 0.51 in Dia Maximum Insulation, 0.35 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Yellow
| Finish | : | Tin Coated |
| Series | : | RF Series |
| Specifications | : | 0.51 in Dia Maximum Insulation, 0.35 in Clearance, Nylon Insulation |
| Stud Size | : | 3/8 in |
| Temperature Rating | : | 105 deg C |
| Tongue Size | : | 0.62 in W x 0.04 in THK |
| Tongue Type | : | Large Ring |
| Type | : | Insulated |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 4 AWG |
| Length | : | 1.84 in |
| Barrel Type | : | Brazed/Overlapped Seam |
| Material | : | Copper |
| Color | : | Yellow |
- Funneled barrel entry
- Deep internal serrations
- Made of copper and has electro-tin plating for corrosion-resistance
- 15 pieces/pack
