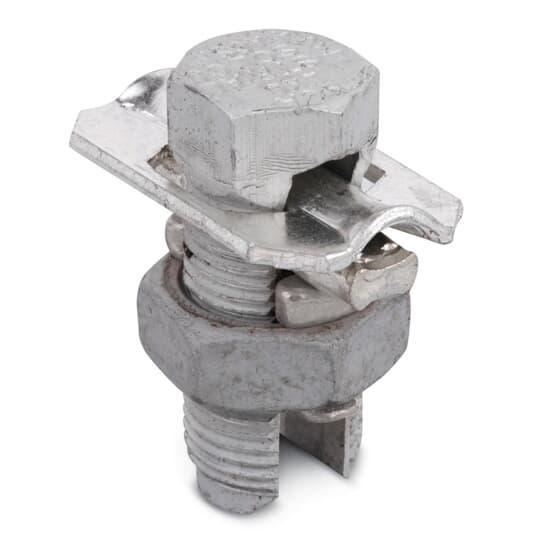

Blackburn® 10CA
Blackburn® 10CA Type CA Split Bolt Connector With Spacer, Washer, 2 to 2/0 AWG Solid/Stranded Aluminum/Copper Conductor, 7/8 x 2-1/16 in, Aluminum
- Manufacturer Name: ABB
- MPN: 10CA
- Brand Name: Blackburn®
- UPC: 783786200573
- FEPN: 10CA TB
- Min Order Qty: 1
- Quantity Interval: 25
-
Inventory Availability
-
Retail Price:
Blackburn® Split Bolt Connector, Type CA, Solid/Stranded Aluminum/Copper Conductor, 2 to 2/0 AWG Conductor, 7/8 x 2-1/16 in Bolt, 0.443 in Split, 1-1/8 in Hex Nut, Aluminum, Tin Plated, Metallic
| Color | : | Metallic |
| Finish | : | Tin Plated |
| Specifications | : | 0.443 in Split, 1-1/8 in Hex Nut |
| Type | : | Type CA |
| Conductor Size | : | 2 to 2/0 AWG |
| Conductor Type | : | Solid/Stranded Aluminum/Copper |
| Bolt Size | : | 7/8 x 2-1/16 in |
| Material | : | Aluminum |
- Bolt, nut and washer made of high-strength aluminum alloy
- Pressure bar and contoured spacer made of electrolytic copper
- Spacer is completely tin plated
- Bolt and nut are anodized to prevent seizing of threads and reduce galvanic corrosion when in contact with copper conductor
- Blackburn® contax paste recommended with the connector
- 2/0 AWG stranded to 6 AWG solid conductor range min tap with one max main
- 2/0 AWG stranded to 2 AWG solid conductor range for equal main and tap
- 25 Pieces/Pack
Specification Sheet
