EATON HT8JXH1DAA5

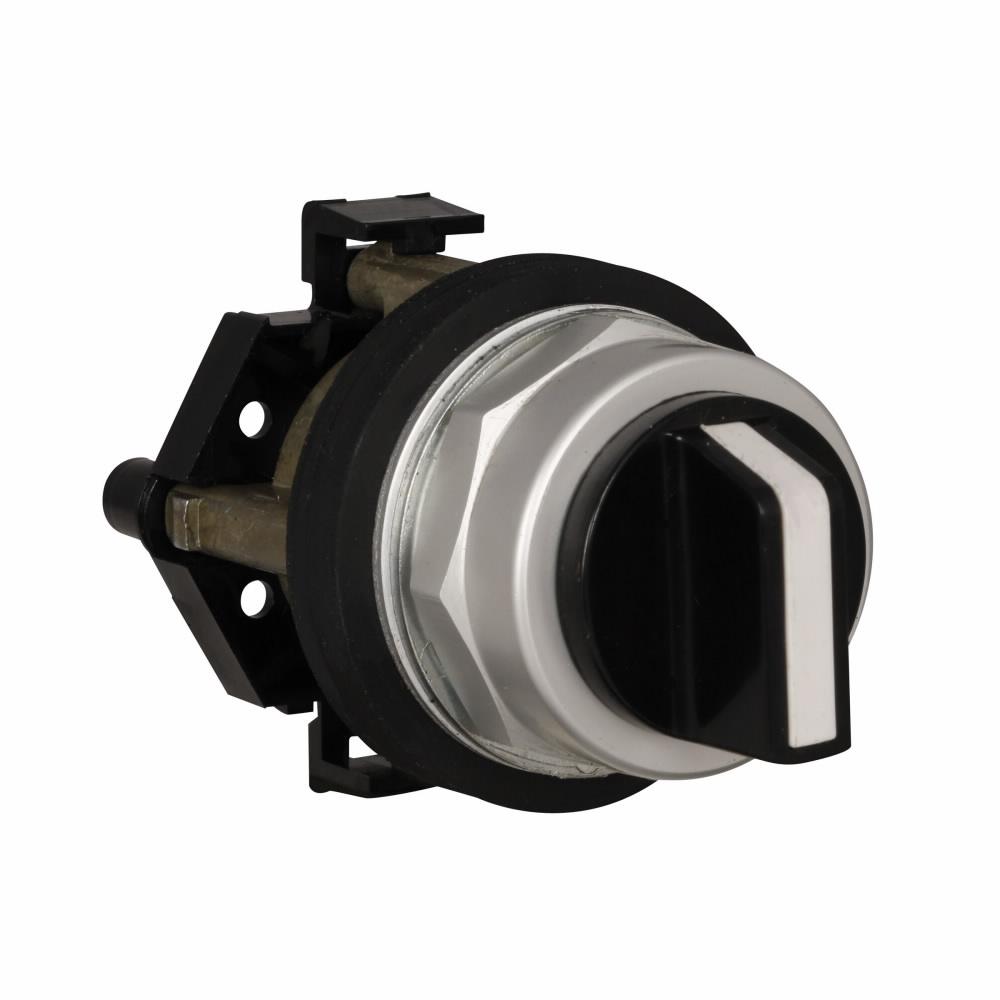

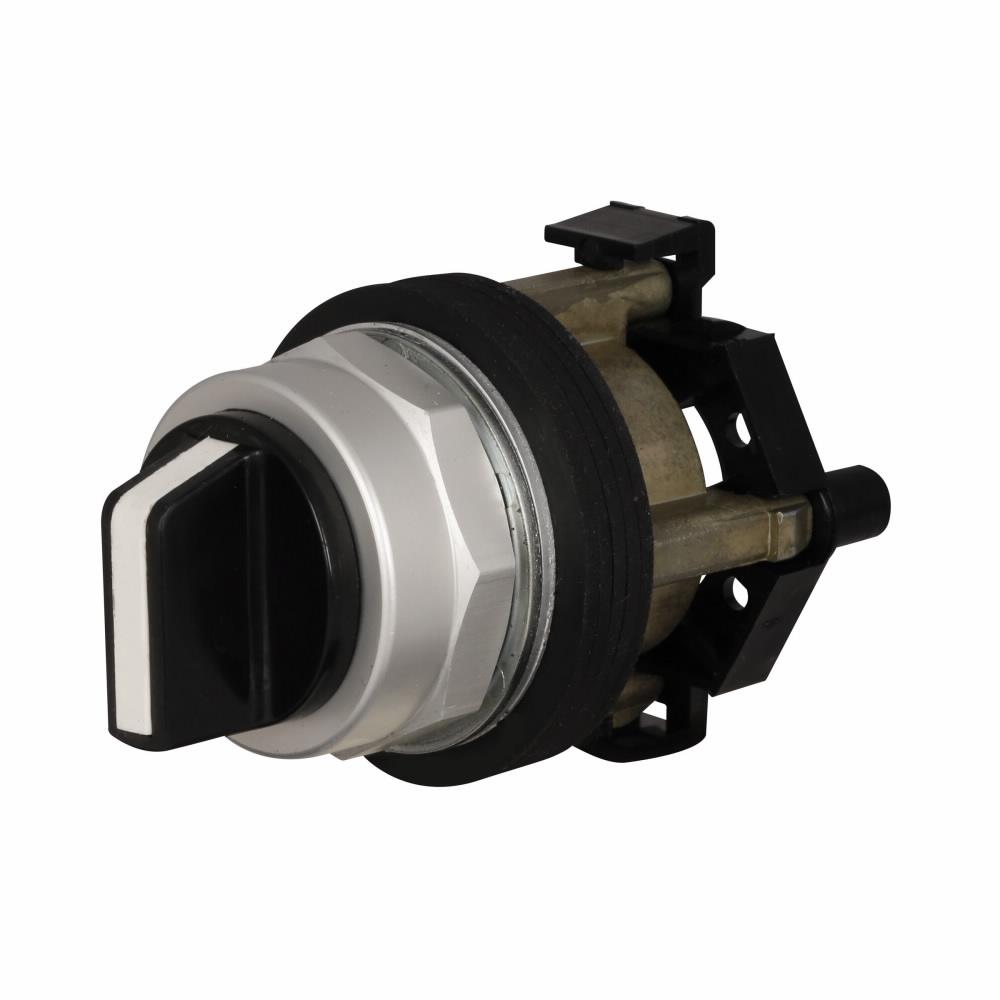

EATON HT8JXH1DAA5 Oiltight/Watertight Standard Pushbutton Non-Illuminated Selector Switch Unit, 30.5 mm, 1NO Contact, Black
- Manufacturer Name: Eaton
- MPN: HT8JXH1DAA5
- Brand Name: EATON
- UPC: 782113563800
- FEPN: HT8JXH1DAA5 EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
The HT800 series from EATON electrical sector is a family of 30.5 mm pushbutton devices which includes momentary, illuminated and mushroom head pushbuttons, selector switches, indicating lights and push-pull switches. The HT800 devices have a familiar appearance found in most industrial applications and are suitable for replacement of several other manufacturer's 30.5 mm pushbutton devices.
EATON Non-Illuminated Selector Switch Unit, Oiltight/Watertight Standard Pushbutton, Series: HT800, 30.5 mm Size, 1NO Contact Configuration, Momentary/Maintained/Momentary/Spring Return Contact Mode, 3 Positions, Bezel/Housing: Chrome, Knob Actuator, NEMA 3/4/12/13/3R/4X Enclosure, Surface Mounting, Black
| Actuator | : | Knob |
| Bezel/Housing | : | Chrome |
| Contact Mode | : | Momentary/Maintained/Momentary/Spring Return |
| Enclosure Type | : | NEMA 3/4/12/13/3R/4X |
| Mounting Type | : | Surface |
| Number of Positions | : | 3 |
| Series | : | HT800 |
| Type | : | Oiltight/Watertight Standard Pushbutton |
| Size | : | 30.5 mm |
| Contact Configuration | : | 1NO |
| Color | : | Black |
- Anodized aluminum mounting rings
- Watertight double V-gasket seals
- Extended height bulbs
- Transparent housing contact blocks
- Color coded contact blocks
- Gold plated contacts (on low voltage contact block)
- Reliability ridge on movable contact
- Stackable screw-mounted contact blocks
- Standard NC contact opens before NO contact closes (break-before-make operation)
- Bright and long lasting LED indicating lights in six colors
- Field convertible maintained selector switches from 2 to 3-position and vice versa
