Wiring Device-Kellems S1SPFFAL

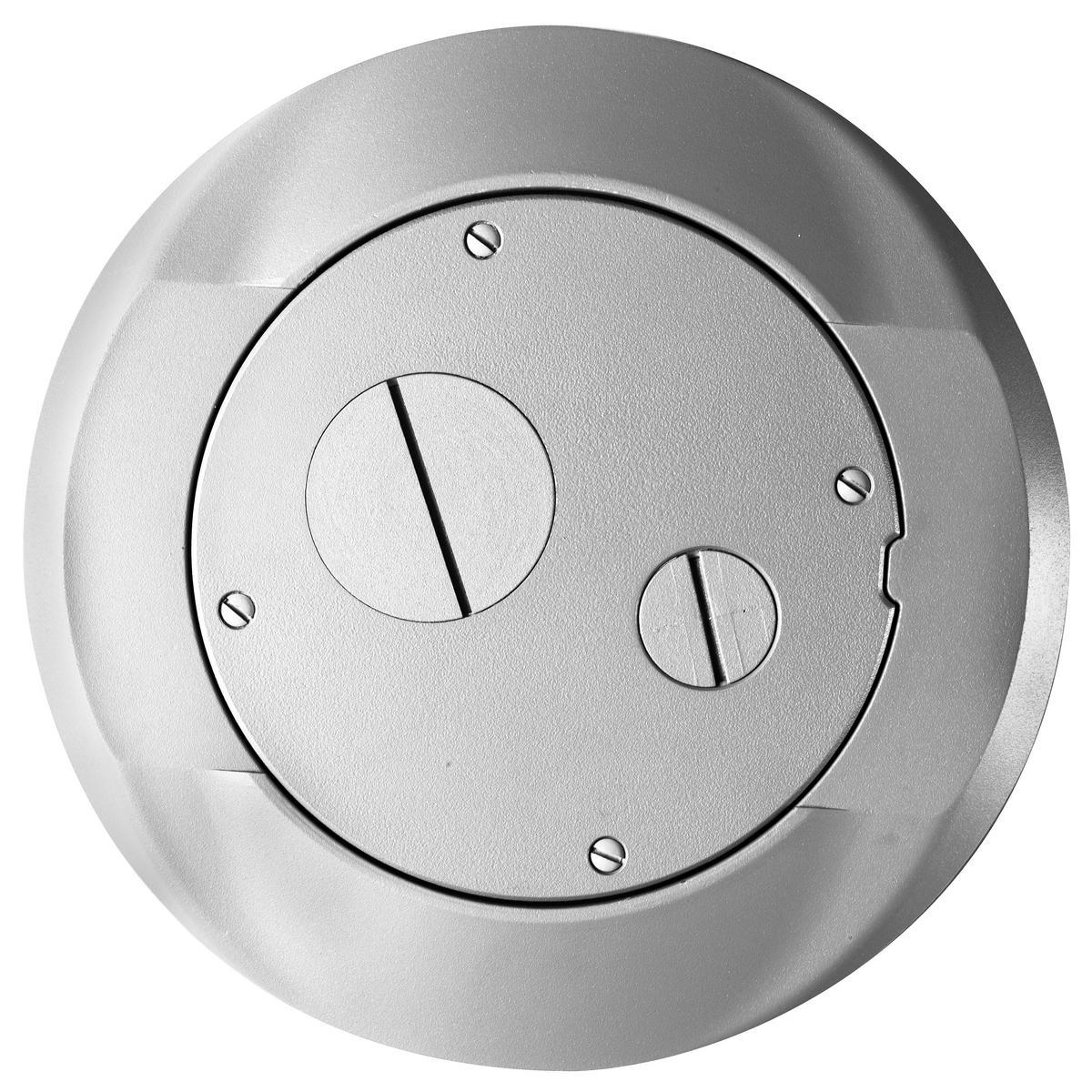

Wiring Device-Kellems SystemOne S1SPFFAL Fire-Rated Poke-Through Sub Plate, 8 in Dia, 2.41 in L, Cast Aluminum

  • Manufacturer Name: Hubbell
  • MPN: S1SPFFAL
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585371481
  • FEPN: S1SPFFAL HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

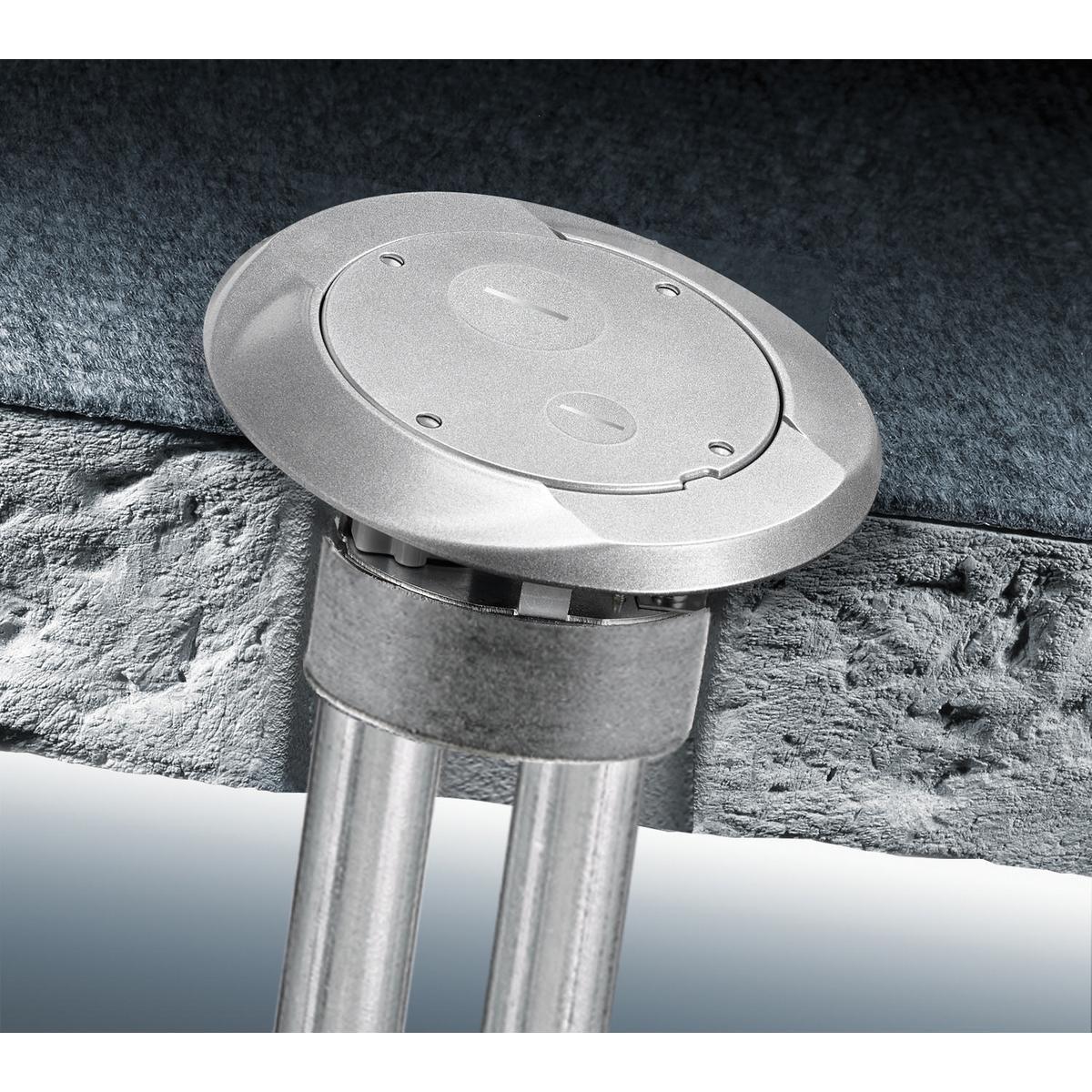

Hubbell® SystemOne™ is an innovative system that provides consumers with the flexibility to create personal solutions for the most demanding multi-service applications for both flush in-floor boxes and fire rated poke-throughs. Hubbell® SystemOne™ features a unique universal cover assembly and a wide variety of application sub-plates that install on both Hubbell® flush floor boxes and fire rated poke-throughs. Whatever the application, Hubbell® SystemOne™ delivers a consistent, aesthetic and functional solution for applications "in-the-floor" or "through-the-floor" for power, voice, data and A/V requirements.

Wiring Device-Kellems SystemOne Poke-Through Sub Plate, Fire-Rated, 2 Outlets, 8 in Diameter, 2.41 in Length, Surface Mounting, Cast Aluminum, Powder Coated/Aluminum

Color       :      Aluminum
Finish       :      Powder Coated/Aluminum
Mounting Type       :      Surface
Number of Outlets       :      2
Type       :      Fire-Rated
Diameter       :      8 in
Length       :      2.41 in
Material       :      Cast Aluminum
  • Large capacity and multi-service furniture feed applications
  • Open system sub-plates permit maximum data flexibility
  • Fabricated construction
  • Standard type
  • (1) 3/4 in and (1) 1-1/2 in NPT access holes for power and/or datacom applications universal cover not required
