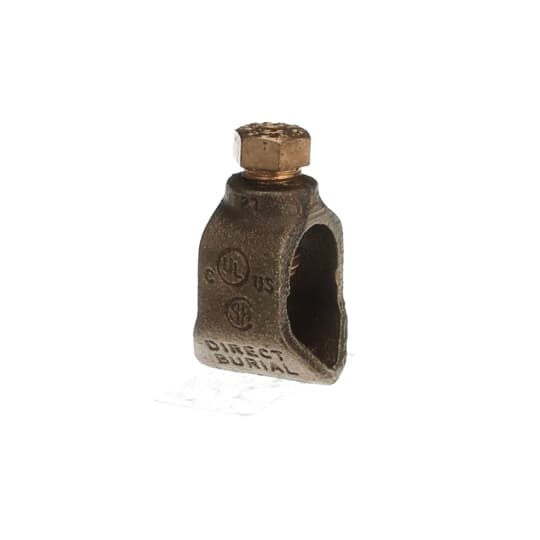

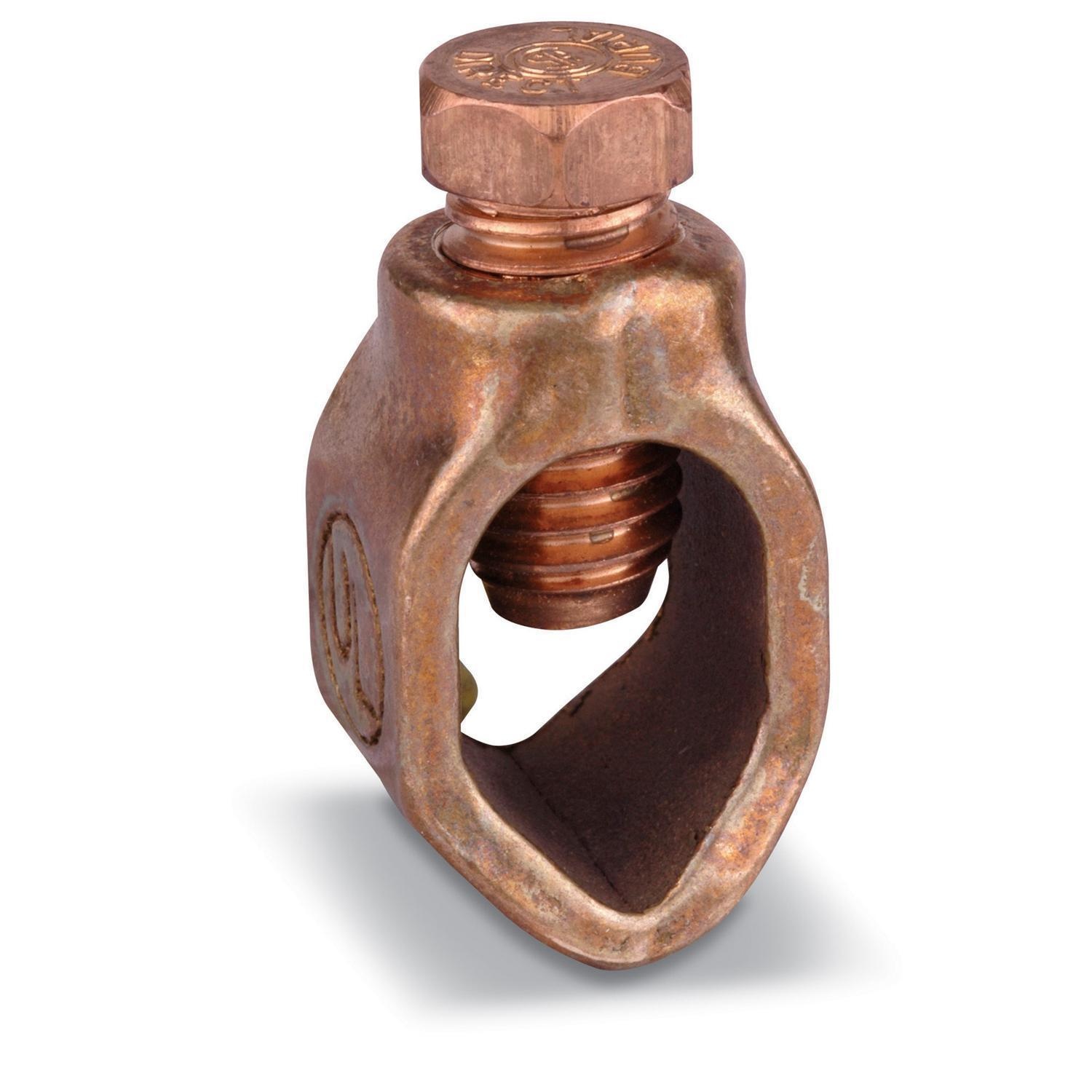

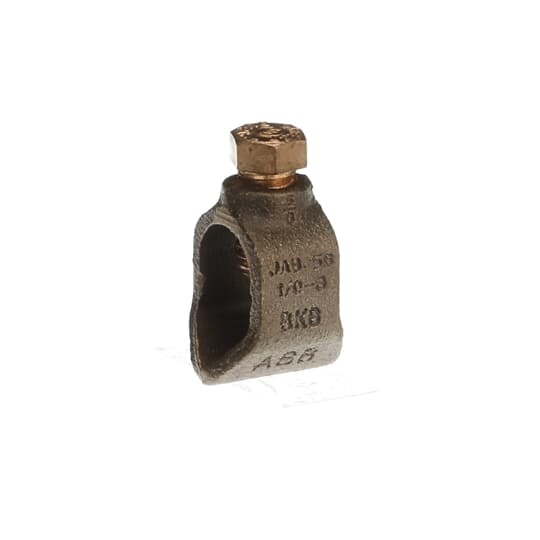

Blackburn® JAB58H
Blackburn® E-Z Ground® JAB58H Type JAB Non-Insulated Grounding Rod Clamp, 5/8 in Rod, 8 to 1/0 AWG Conductor, Copper
- Manufacturer Name: ABB
- MPN: JAB58H
- Brand Name: Blackburn®
- UPC: 783786800735
- FEPN: JAB58H TB
- Min Order Qty: 1
- Quantity Interval: 50
-
Inventory Availability
-
Retail Price:
Blackburn® compression, mechanical and exothermic connectors and accessories represent the most comprehensive set of products in the industry for the creation of a safe, code compliant and reliable grounding system.
Blackburn® E-Z Ground® Grounding Rod Clamp, Type JAB Non-Insulated, 5/8 in Rod, Copper/Solid/Stranded Conductor, 8 to 1/0 AWG Conductor, Copper, 11/16 in W x 2-13/64 in H
| Conductor Type | : | Copper/Solid/Stranded |
| Dimensions | : | 11/16 in W x 2-13/64 in H |
| Type | : | Type JAB Non-Insulated |
| Rod Size | : | 5/8 in |
| Conductor Size | : | 8 to 1/0 AWG |
| Material | : | Copper |
- Cast of high strength corrosion resistant copper alloy
- Long bearing surface of clamp on ground wire secures ground connection
- UL listed for direct burial
- Hex head bolts
- 7/16-14 UNC-2A thread
