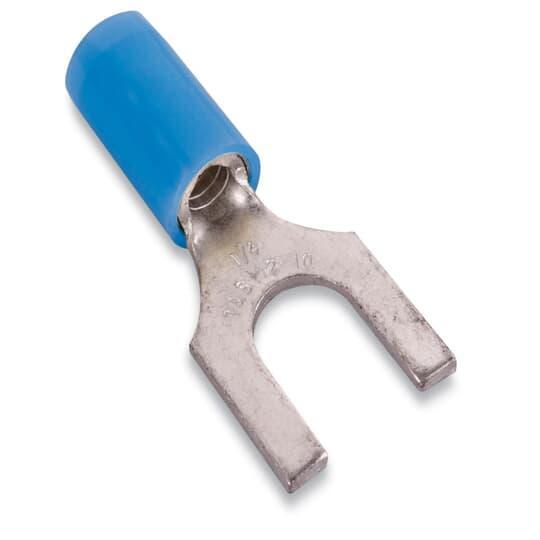

Sta-Kon® Fork Terminal, Insulated, 18 to 14 AWG Conductor, #10 Stud, 0.95 in Length, Fork Tongue, 0.31 in W Tongue, 600 V AC, Specifications: 0.19 in Dia Maximum Insulation, Nylon Insulation, 221 deg F, Copper, Tin Coated, Blue
| Finish | : | Tin Coated |
| Specifications | : | 0.19 in Dia Maximum Insulation, Nylon Insulation |
| Stud Size | : | #10 |
| Temperature Rating | : | 221 deg F |
| Tongue Size | : | 0.31 in W |
| Tongue Type | : | Fork |
| Type | : | Insulated |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 18 to 14 AWG |
| Length | : | 0.95 in |
| Material | : | Copper |
| Color | : | Blue |
- Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep
- Nylon jacket is Color coded
Specification Sheet
