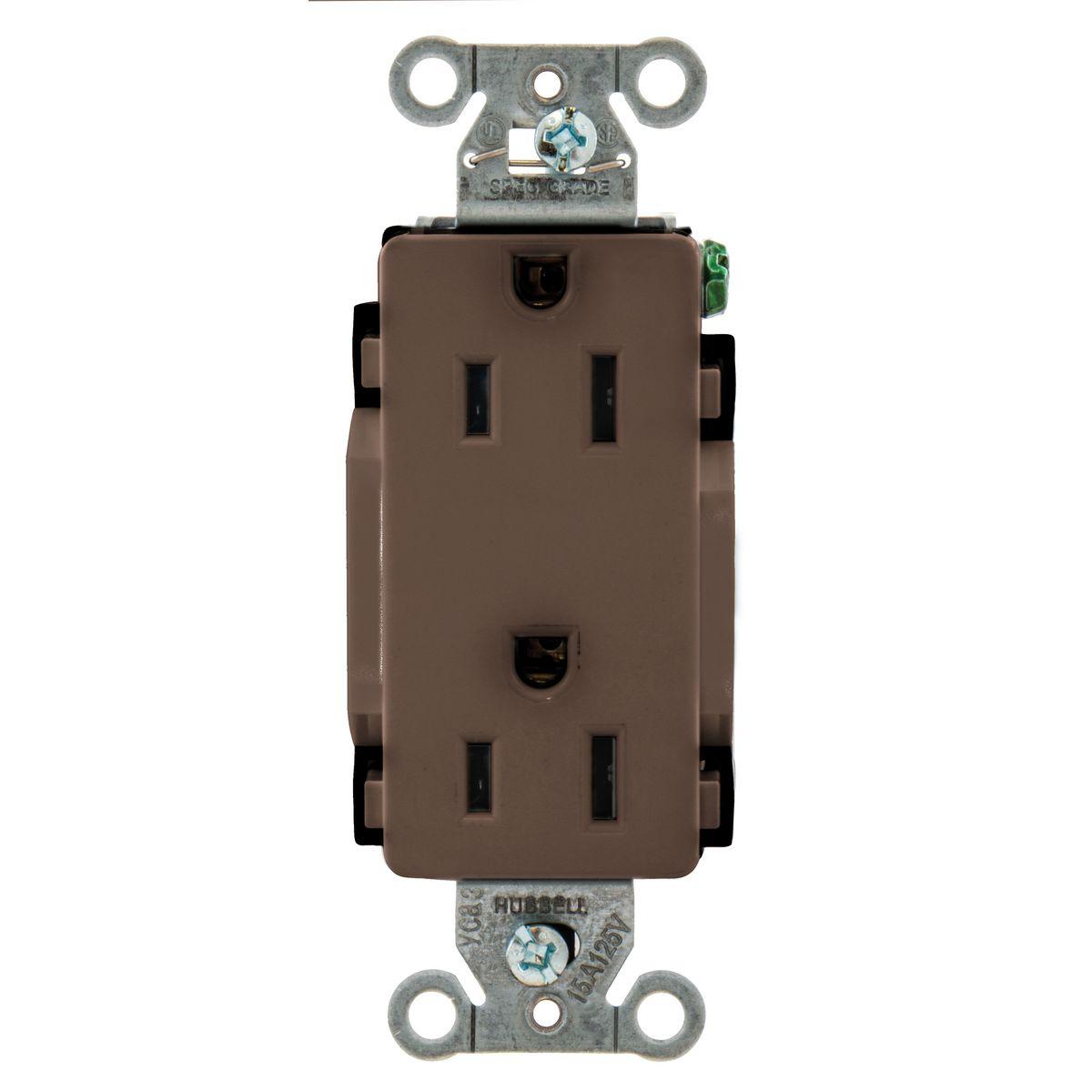

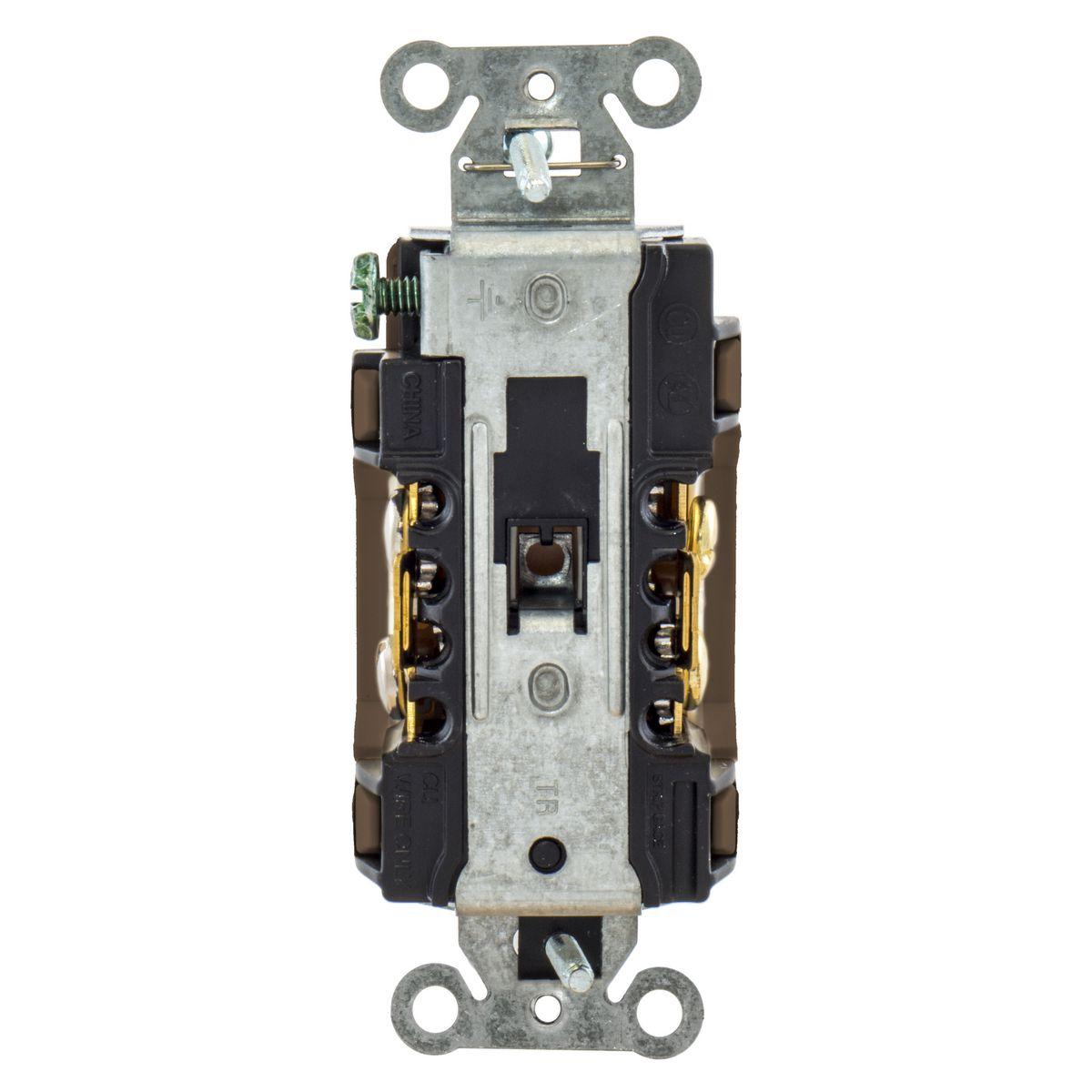

Wiring Device-Kellems DR15
Wiring Device-Kellems Style Line® DR15 1-Phase Decorator Duplex Standard Screw Mount Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
- Manufacturer Name: Hubbell
- MPN: DR15
- Brand Name: Wiring Device-Kellems
- UPC: 783585127781
- FEPN: DR15 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Style Line® Straight Blade Receptacle, 1-Phase Decorator Duplex Standard Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Brown, 1.29 x 1.06 x 3.28 in
| Dimensions | : | 1.29 x 1.06 x 3.28 in |
| Grade | : | Commercial/Industrial/Specification |
| Horsepower | : | 1/2 hp |
| Material | : | Nylon |
| NEMA Rating | : | 5-15R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Side Wired |
| Type | : | 1-Phase Decorator Duplex Standard Screw Mount |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Brown |
- Smooth face
- Triple wipe contacts
