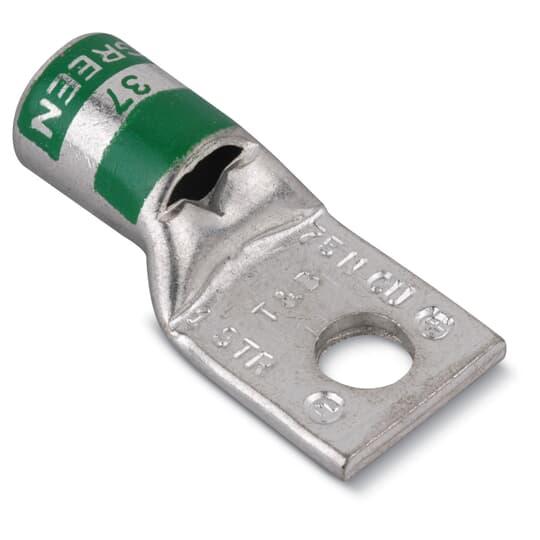

Color-Keyed® 256-30695-282
Color-Keyed® 256-30695-282 1-Hole Non-Insulated Compression Lug Connector With Peep Hole, 6 AWG Copper Conductor, Die Code: 24, 3/8 in Stud, Copper
- Manufacturer Name: ABB
- MPN: 256-30695-282
- Brand Name: Color-Keyed®
- UPC: 786210642857
- FEPN: 256-30695-282 TB
- Min Order Qty: 1
- Quantity Interval: 100
-
Inventory Availability
-
Retail Price:
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Color-Keyed® Compression Lug Connector, 1-Hole Non-Insulated, Copper Conductor, 6 AWG Conductor, Die Code: 24, 35 kV, 3/8 in Stud, 0.75 in L x 0.56 in W x 0.06 in THK Tongue, 1.41 in Overall Length, Standard Barrel, 0.31 in Dia Barrel, Specifications: 5/16 in Stud Hole Spacing, NEMA 570/2B Enclosure Rating, Tin Plated, Copper, Blue
| Barrel Size | : | 0.31 in Dia |
| Barrel Type | : | Standard |
| Color | : | Blue |
| Overall Length | : | 1.41 in |
| Specifications | : | 5/16 in Stud Hole Spacing, NEMA 570/2B Enclosure Rating, Tin Plated |
| Tongue Size | : | 0.75 in L x 0.56 in W x 0.06 in THK |
| Type | : | 1-Hole Non-Insulated |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 6 AWG |
| Conductor Type | : | Copper |
| Die Code | : | 24 |
| Stud Size | : | 3/8 in |
| Material | : | Copper |
- High conductivity wrought copper construction
- NEMA 570/2B
- 5/16 in hole to tongue end
Specification Sheet
