Color-Keyed® 256-30695-1253

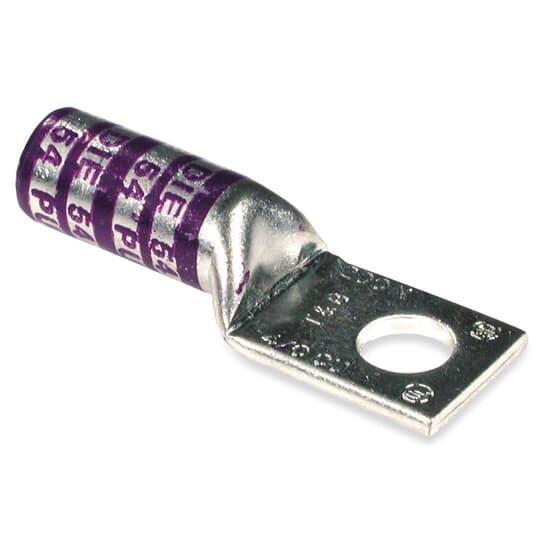

Color-Keyed® 256-30695-1253 1-Hole Non-Insulated Compression Lug Connector, 4/0 AWG Copper Conductor, Die Code: 54, 3/8 in Stud, Copper
- Manufacturer Name: ABB
- MPN: 256-30695-1253
- Brand Name: Color-Keyed®
- UPC: 786210642277
- FEPN: 256-30695-1253 TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Color-Keyed® Compression Lug Connector, 1-Hole Non-Insulated, Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 35 kV, 3/8 in Stud, 1.25 in L x 1.03 in W x 0.14 in THK Tongue, 2.95 in Overall Length, Blind End/Long Barrel, 0.7 in Dia Barrel, Specifications: 3/8 in Hole Spacing, Tin Plated, Copper, Purple
| Barrel Size | : | 0.7 in Dia |
| Barrel Type | : | Blind End/Long |
| Color | : | Purple |
| Overall Length | : | 2.95 in |
| Specifications | : | 3/8 in Hole Spacing, Tin Plated |
| Tongue Size | : | 1.25 in L x 1.03 in W x 0.14 in THK |
| Type | : | 1-Hole Non-Insulated |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 4/0 AWG |
| Conductor Type | : | Copper |
| Die Code | : | 54 |
| Stud Size | : | 3/8 in |
| Material | : | Copper |
- High conductivity electro wrought copper construction
- 3/8 in hole to tongue end
