Blackburn® W62-1

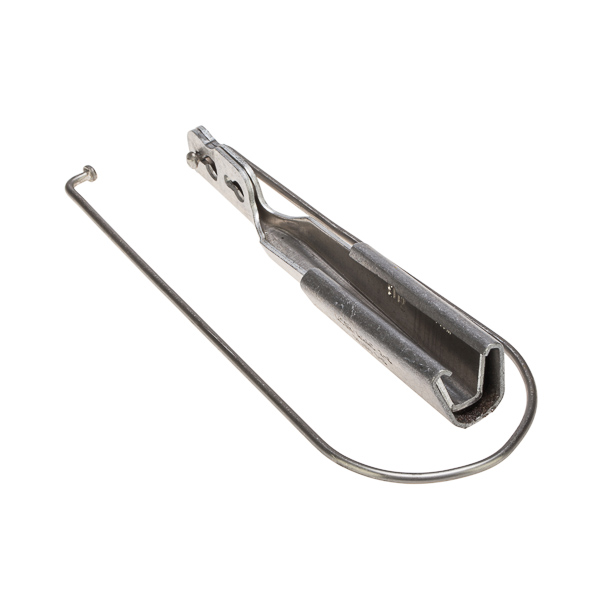

Blackburn® W62-1 W-1 Type W Service Entrance Wedge Clamp, 6 to 2 AWG, 6 to 1 AWG ASCR/AAAC/Solid/Stranded Conductor, Aluminum, Bare
- Manufacturer Name: ABB
- MPN: W62-1
- Brand Name: Blackburn®
- UPC: 783786332007
- FEPN: W62-1 TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Blackburn® Service Entrance Wedge Clamp, Type W, Series: W-1, ASCR/AAAC/Solid/Stranded Conductor, 6 to 2 AWG, 6 to 1 AWG Conductor, 35 kV, 1-Conductor, Tension Connection, 1.2 lb Tensile, Aluminum, Bare, Orange, 12-1/2 in L x 2-3/8 in D
| Color | : | Orange |
| Dimensions | : | 12-1/2 in L x 2-3/8 in D |
| Series | : | W-1 |
| Specifications | : | 1-Conductor, Tension Connection, 1.2 lb Tensile |
| Type | : | Type W |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 6 to 2 AWG, 6 to 1 AWG |
| Conductor Type | : | ASCR/AAAC/Solid/Stranded |
| Material | : | Aluminum |
| Finish | : | Bare |
- Drop wire may be cut to exact length for adjustments in drop wire sag
- Can be attached to bare neutral at any point in the span
- Versatile use, flexible and rigid bails grip ACSR, AAC and AAAC conductors
- All seasons environmental conditions
Specification Sheet
