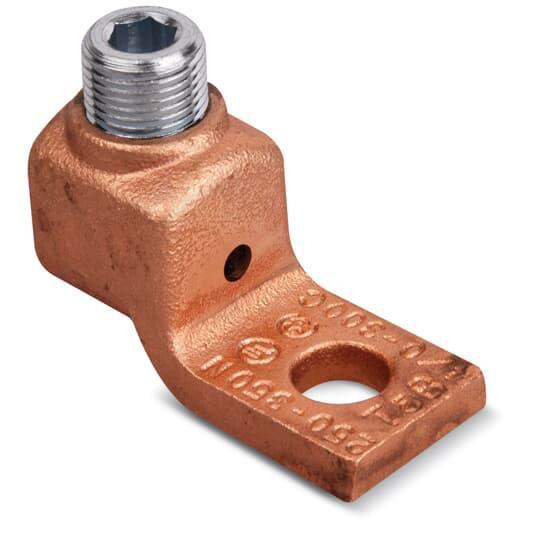

Blackburn® Locktite® Cone Screw Lug, Copper Conductor, 1 AWG to 250 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 29/32 in L x 1 in W x 7/32 in THK Tongue, Straight Tongue, 250 in-lb Wrench Torque, Copper, 2-1/32 in L x 1 in W x 1 in H
| Dimensions | : | 2-1/32 in L x 1 in W x 1 in H |
| Specifications | : | 250 in-lb Wrench Torque |
| Tongue Size | : | 29/32 in L x 1 in W x 7/32 in THK |
| Tongue Type | : | Straight |
| Conductor Size | : | 1 AWG to 250 kcmil |
| Conductor Type | : | Copper |
| Stud Size | : | 3/8 in |
| Number of Bolt Holes | : | 1 |
| Material | : | Copper |
- Conically shaped screw compresses copper conductor so each strand is forced to carry its share of the load
- Exerts equal pressure on each conductor strand
- 1 stud of 3/8 in
- The cone screw assures high pull out and low resistance
