Panduit® LCCX2-12-E
Send Print
  1. pin-int

Panduit® LCCX2-12-E

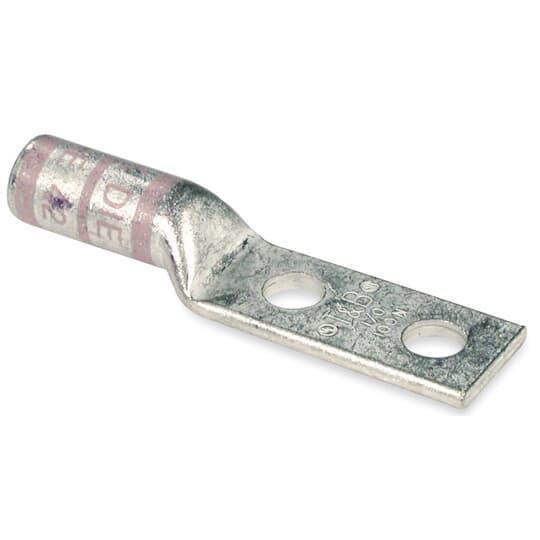

Panduit® Pan-Lug™ LCCX2-12-E 2-Hole Compression Connector Lug, 2 AWG Extra-Flexible/Flexible/Stranded Copper Conductor, Die Code: P33, 42.767 in Stud, Tin Plated Copper

  • Manufacturer Name: Panduit
  • MPN: LCCX2-12-E
  • Brand Name: Panduit®
  • UPC: 074983425587
  • FEPN: LCCX2-12-E PC
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Panduit® Pan-Lug™ Compression Connector Lug, 2-Hole, Series: LCCX, Extra-Flexible/Flexible/Stranded Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 42.767 in Stud, Straight Tongue, 3/4 in W x 3/32 in THK Tongue, 4.63 in Overall Length, Long Barrel, 0.36 in ID x 0.47 in OD x 1.36 in L Barrel, 1-3/4 in Stud Hole Spacing, 1.44 in L Wire Strip, 90 deg C, 1.44 in Mounting Hole, Tin Plated Copper, Brown

Barrel Size       :      0.36 in ID x 0.47 in OD x 1.36 in L
Barrel Type       :      Long
Color       :      Brown
Mounting Hole Size       :      1.44 in
Overall Length       :      4.63 in
Series       :      LCCX
Specifications       :      1-3/4 in Stud Hole Spacing, 1.44 in L Wire Strip
Temperature Rating       :      90 deg C
Tongue Size       :      3/4 in W x 3/32 in THK
Tongue Type       :      Straight
Type       :      2-Hole
Voltage Rating       :      35 kV
Conductor Size       :      2 AWG
Conductor Type       :      Extra-Flexible/Flexible/Stranded Copper
Die Code       :      P33
Stud Size       :      42.767 in
Material       :      Tin Plated Copper
  • Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
  • For use with flexible, extra-flexible and code stranded copper conductors
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • pdfFull Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_68be41f62887e3c1769da635dde09b66f3feaf4e14590d0f9c3c96339ae778cf.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bde0a9f3c41fad8bb66f5c7956f6e8a64017384cb0e197095902d3e1ab8ea261.pdf
