Blackburn® AMTT250

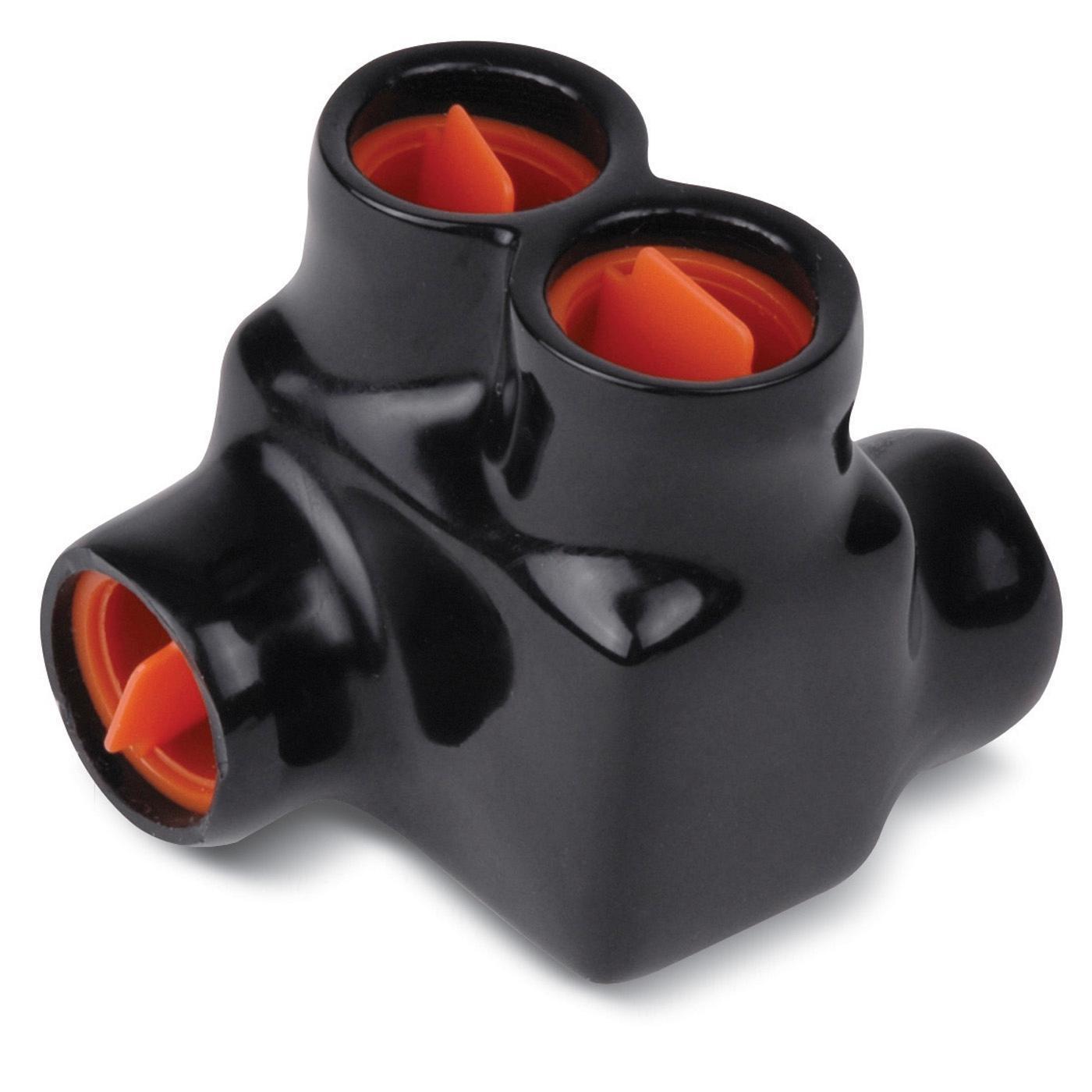

Blackburn® AMTT250 AMT 2-Port Offset Multi-Tap Splice Connector, 10 AWG to 250 kcmil Stranded Conductor, Aluminum
- Manufacturer Name: ABB
- MPN: AMTT250
- Brand Name: Blackburn®
- UPC: 783786259236
- FEPN: AMTT250 TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Blackburn® AMTT250 Multi-Tap Splice Connector, 2-Port Offset, Series: AMT, Stranded Conductor, 10 AWG to 250 kcmil Conductor, 600 V AC, Specifications: 5/16 in Hex, Black Color, 90 deg C, Aluminum, 2.12 in L x 2.63 in W x 2.13 in H Dimensions
| Dimensions | : | 2.12 in L x 2.63 in W x 2.13 in H |
| Series | : | AMT |
| Specifications | : | 5/16 in Hex, Black Color |
| Temperature Rating | : | 90 deg C |
| Type | : | 2-Port Offset |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 10 AWG to 250 kcmil |
| Conductor Type | : | Stranded |
| Material | : | Aluminum |
- PVC insulation eliminates insulation failures and reduces outage costs
- Removable port and screw plugs
- Compact design provides space efficiencies
- All cable entry are equipped with an anti-oxidation compound
Specification Sheet
