Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

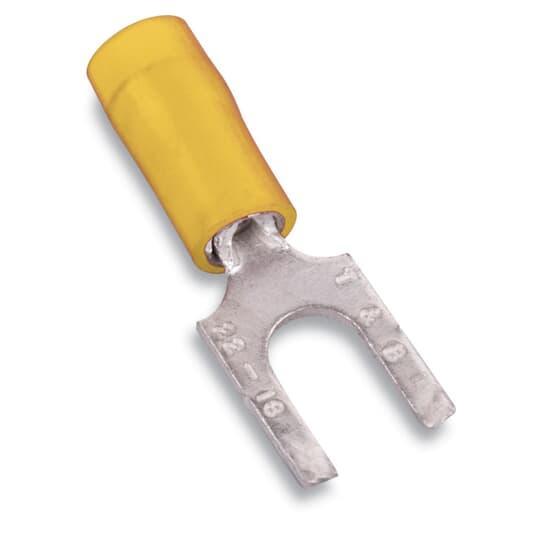

Sta-Kon® Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #10 Stud, 1.12 in Length, Flanged Fork Tongue, 0.38 in W Tongue, 600 V AC, 221 deg F, Copper, Tin Coated, Yellow
| Finish | : | Tin Coated |
| Series | : | RC Series |
| Stud Size | : | #10 |
| Temperature Rating | : | 221 deg F |
| Tongue Size | : | 0.38 in W |
| Tongue Type | : | Flanged Fork |
| Type | : | Insulated |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 12 to 10 AWG |
| Length | : | 1.12 in |
| Material | : | Copper |
| Color | : | Yellow |
- Fork terminals allow easy installation because screw needs only to be loosened
- A flanged-tongue fork with turned up tips provide extra holding protection
- 1/4 in maximum insulation
- Nylon insulated
