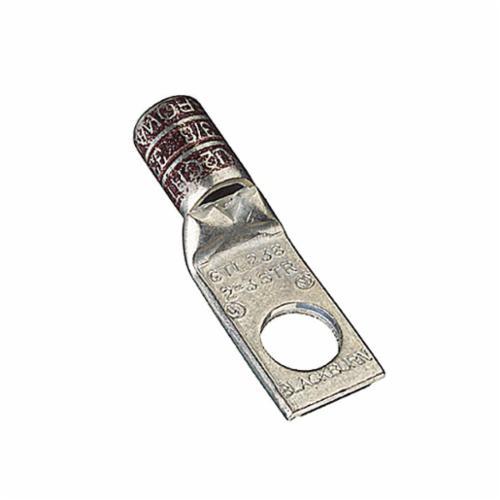

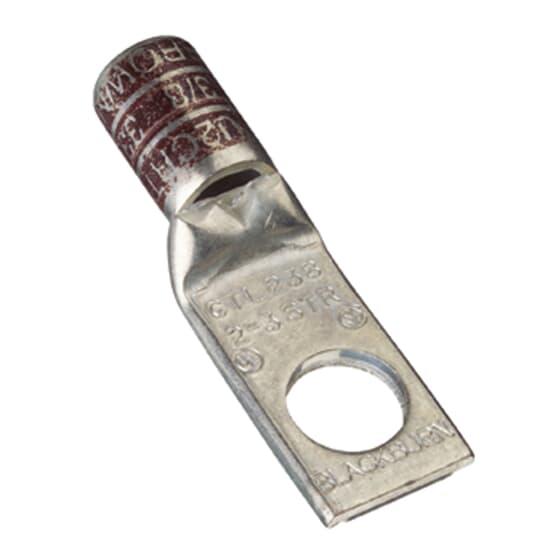

Color-Keyed® Compression Lug, 1-Hole, Series: CTL, Flexible/Stranded Copper Conductor, 2 AWG Conductor, 35 kV, 1/2 in Stud, Straight Tongue, 1-1/16 in L x 3/4 in W x 1/16 in THK Tongue, 1-29/32 in Overall Length, Short/Standard Barrel, 19/32 in L Barrel, Specifications: Tin Plated, Copper, Brown
| Barrel Size | : | 19/32 in L |
| Barrel Type | : | Short/Standard |
| Color | : | Brown |
| Overall Length | : | 1-29/32 in |
| Series | : | CTL |
| Specifications | : | Tin Plated |
| Tongue Size | : | 1-1/16 in L x 3/4 in W x 1/16 in THK |
| Tongue Type | : | Straight |
| Type | : | 1-Hole |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 2 AWG |
| Conductor Type | : | Flexible/Stranded Copper |
| Stud Size | : | 1/2 in |
| Material | : | Copper |
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Short barrel connectors designed for regular duty applications
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
